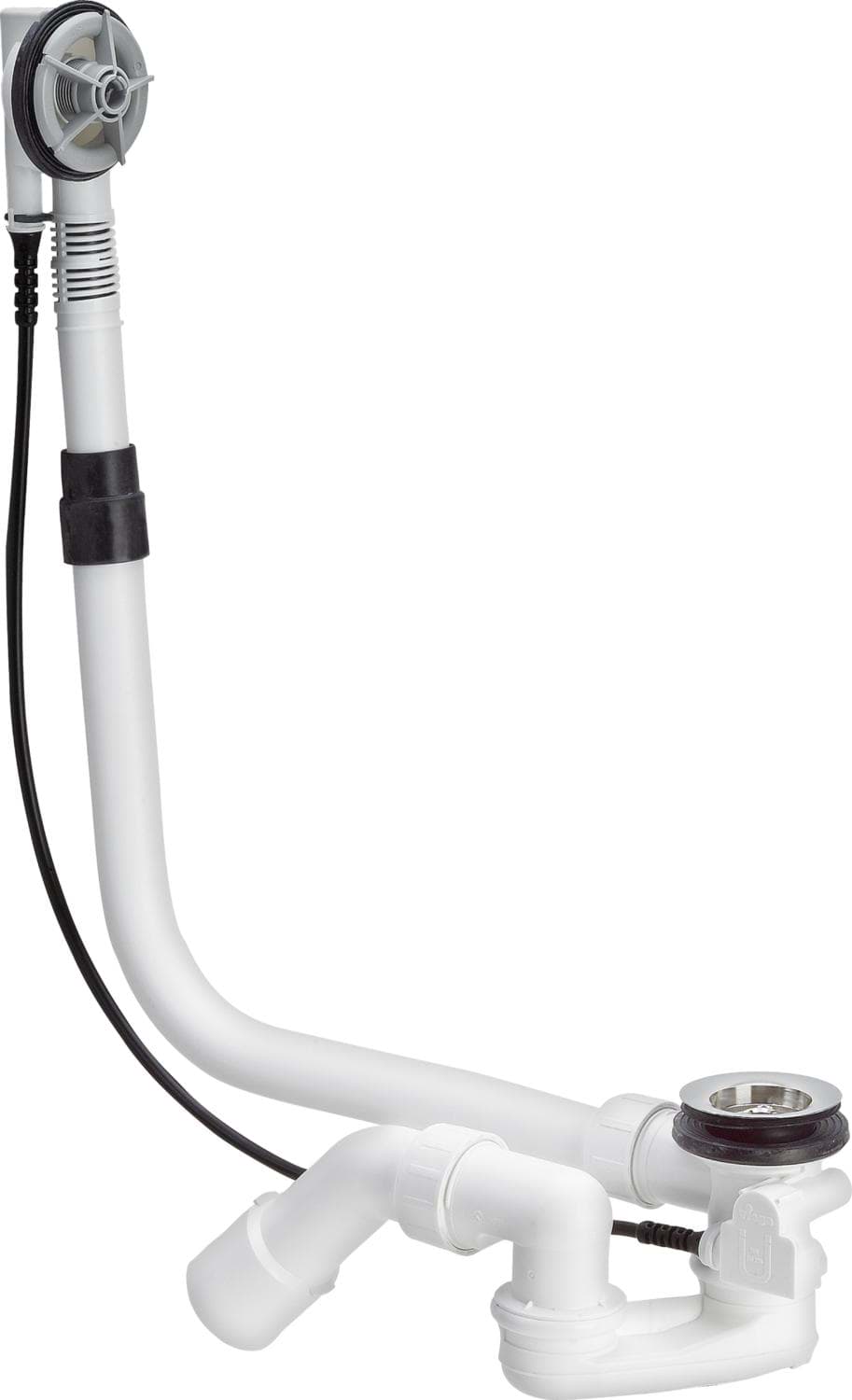

Multiplex drain/overflow
functional unit
flat version; only 33 mm space required behind the bathtub
without: rotatable rosette, drain plug

Equipment
odour trap, drain elbow 45°, chrome-?plated valve

Technical data
Water seal level 50 mm
Drainage capacity accumulation height 300 mm 0.92 l/s
Overflow capacity accumulation height 60 mm over middle of overflow hole 0.63 l/s

Note
See current overview for usage notes.
quality controlled in accordance with DIN EN 274

Model 6163.1
