high drainage capacity

Equipment

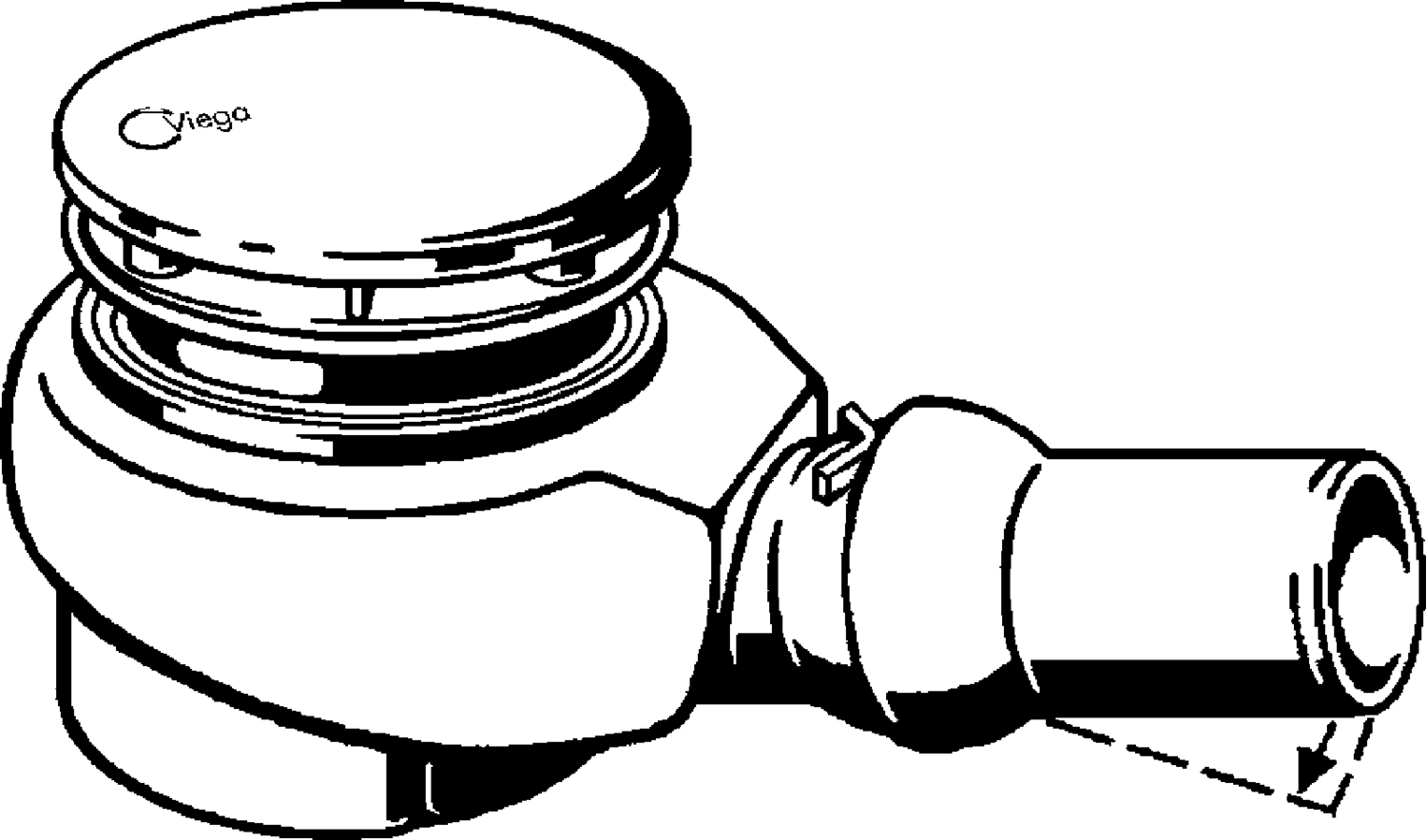

chrome-?plated cover plate, removable odour trap, height-?adjustable horizontal drain pipe with ball joint

Technical data
Water seal level 60 mm
Drainage capacity accumulation height 15 mm 0.85 l/s
drainage capacity according to DIN EN 274

Model 6960
