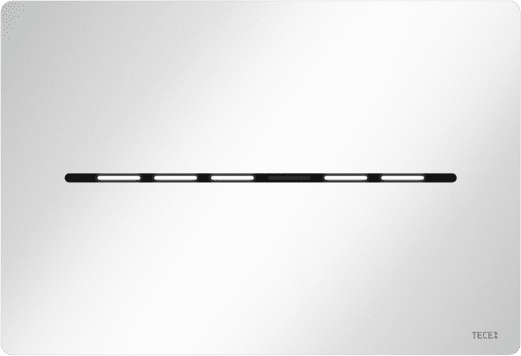

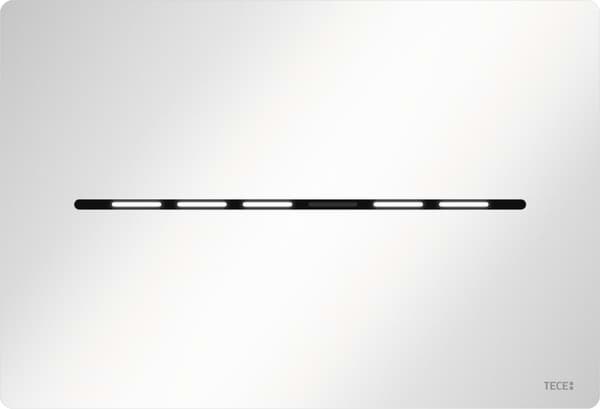

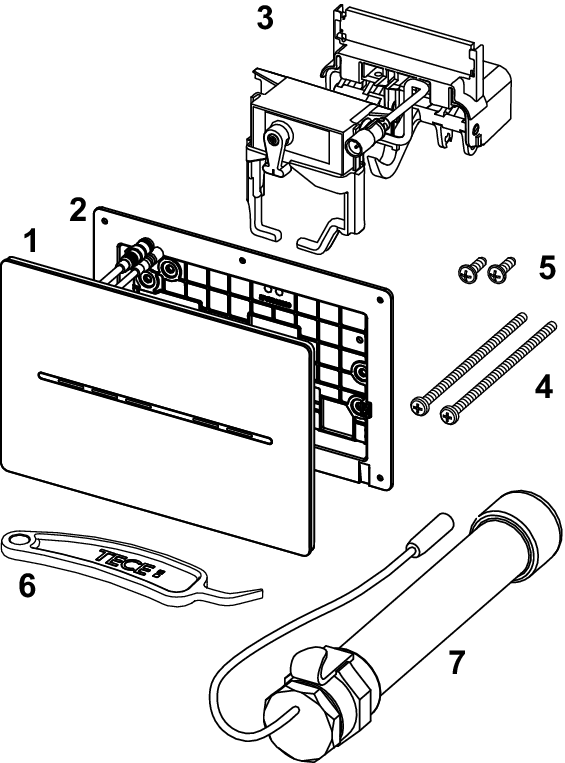

Electronic flush plate with touch-free hygienic actuation for TECE cisterns with front actuation and actuation height of approx. 1 m (centre of flush plate). Very flat stainless steel flush plate including fixing material, watertight battery compartment for installation in the cistern (with four batteries type Mono/D/LR 20) and actuation motor for single or dual flush. Compatible with insertion chute for cleaning tablets. Dimensions (W x H x D): 220 x 150 x 6 mm Function of the electronics: The sensor detects when a person approaches the toilet and only illuminates the flush buttons then. The flush actuation is touch-free or by touching the button area. The TECEsolid toilet electronics can be adapted to individual requirements using app programming. Programmable functions (via Bluetooth interface and app): Single or water-saving dual flush Detection range of the sensor Interval hygiene flush Activation time Pre-flush Automatic flush (safety flush) Display illumination brightness Evaluation/logging function via app, interface to building management system and for remote release via cable-connected electric button on the saftey arm support. Note: Ensure minimum wall finish of 26 mm in brick-wall construction! Not compatible with toilet modules of installation heights 980, 820 and 750 mm. Not compatible with TOTO Washlets RX and SX.
