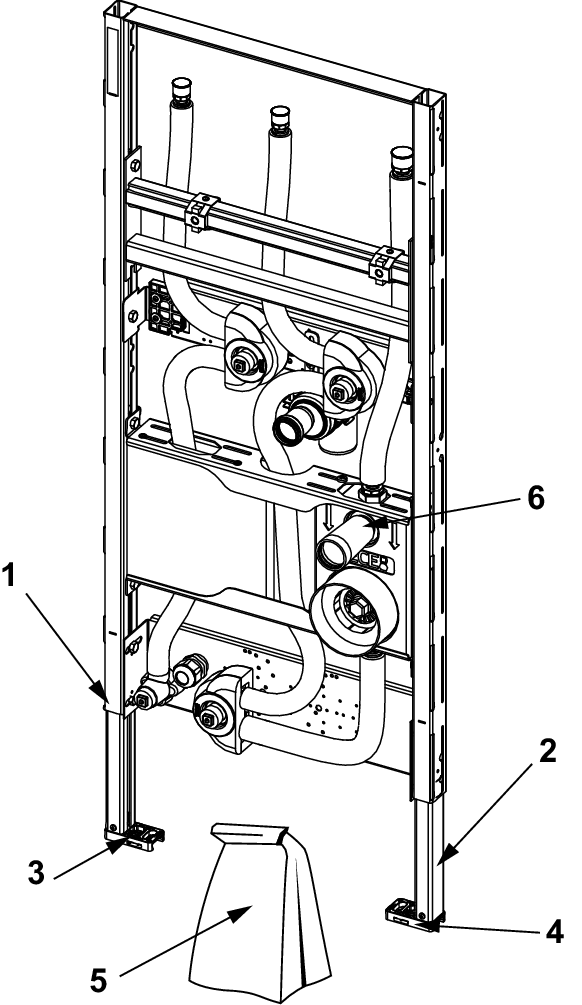

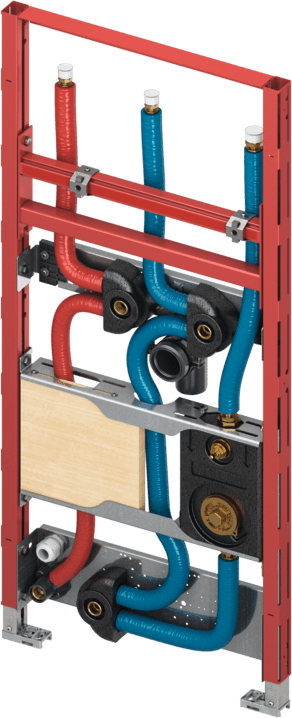

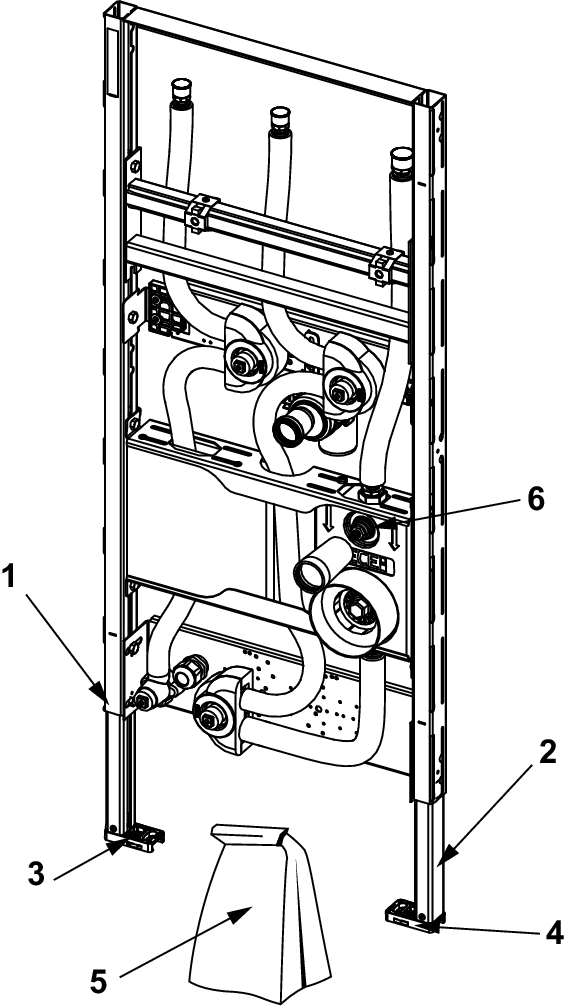

TECEprofil washbasin module for asymmetrical installation for instantaneous water heater and washbasin, installation height 1120 mm Washbasin module for attachment to TECEprofil profile pipes or for installation in metal or wooden stud walls and as a pre-wall or corner module. Completely pre-assembled unit consisting of: self-supporting mounting frame, powder-coated two M 10 retaining bolts, height and side-adjustable spacing sound-decoupled fitting crossbar, wall plates with hygiene box for cold and hot water ground through eccentrically arranged HT waste water bend DN 50 plus HT reduction DN 50 x 32 mm factory pre-piped drinking water inlet 3/4" AG mounting block for water meter G 2" coaxial (HWW model), connection Rp 3/4" factory-ground and insulated drinking water pipe for cold and hot water with outlets 1/2" AG fitting traverse with two wall discs for cold and hot water connection, 100 mm spacing Wooden board for mounting electronically controlled instantaneous water heaters TECEflex pipe system used, pre-insulated, combined with TECEflex fittings made of silicon bronze Item no: 9310022
