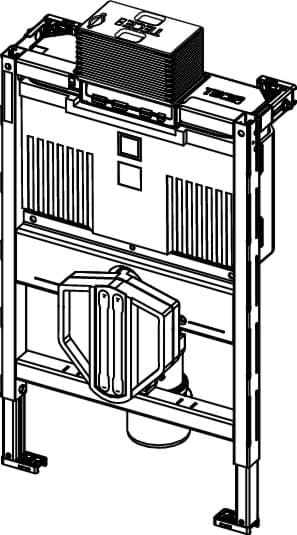

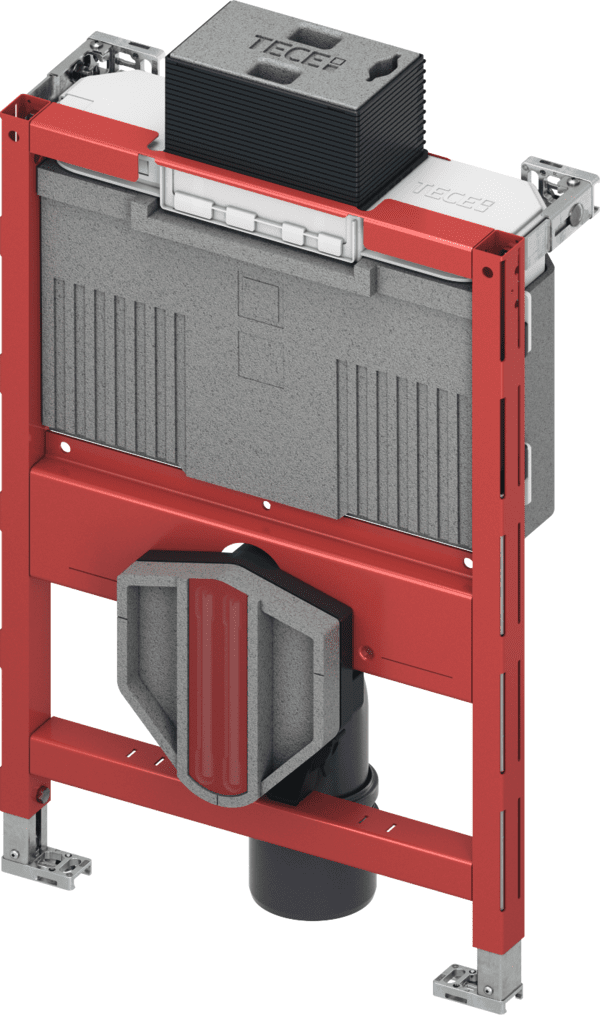

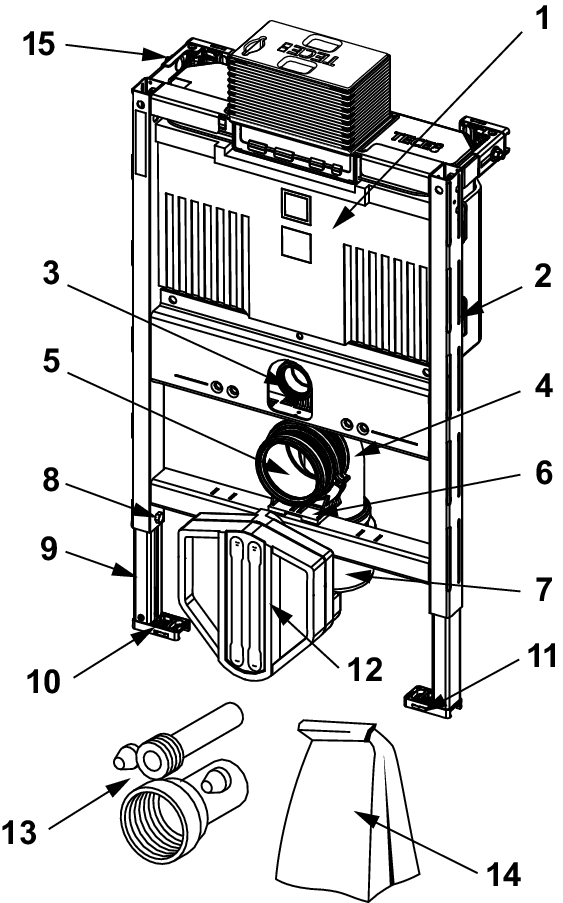

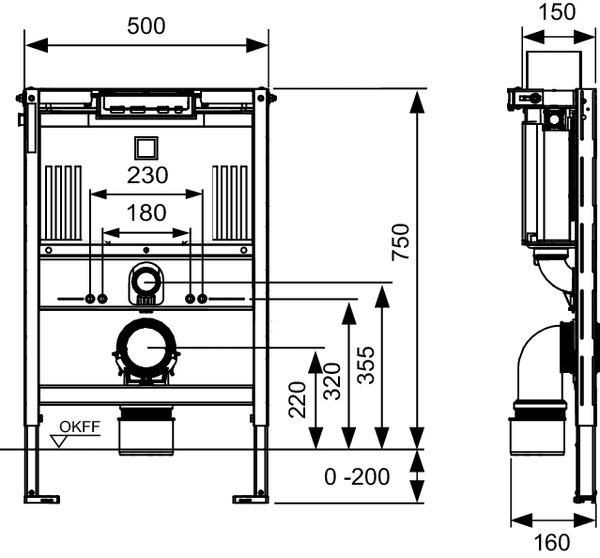

Toilet module including “easy fit” flush plate assembly. For fitting to TECEprofil section tubes or for installation in metal or wooden stud-and-beam walls and as a pre-wall or corner module; also suitable for single block assembly. Uni 750-cistern for actuation from above: Safety tank made of impact-resistant plastic, tested according to EN 14055 Cistern fully pre-assembled and sealed Cistern connection with external thread R 1/2" on the side, compatible with quick adapters 8-litre tank volume; 6-litre pre-set standard flush volume, 4.5-litre flush volume can be set at any time; 3-litre partial flush volume for dual; immediate cleaning for dual-flush system; residual volume can be used for immediate cleaning flush. Insulated against condensation water For TECE flush plates and toilet flush handle Can be used as a single-flush or dual-flush cistern "easy fit" flush plate mounting Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, acoustic group 1 according to DIN 4109 Module frame: self-supporting, powder-coated Two M 12 retaining bolts and nuts Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP Joint adapter also suitable for horizontal installation Toilet connection set DN 90 WC connection box including bare-wall protection with junction box Please order separately: Toilet flush plate (see flush plates) Fitting for pre-wall, corner or wooden stud structures TECE upgrade set dry-wall for TECE shower toilets (optional) Note: If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is no greater than 18 cm) - e.g. V & B Memento, Subway 2.0 - the steel brace set 9041029 must be installed in the lower installation space.
