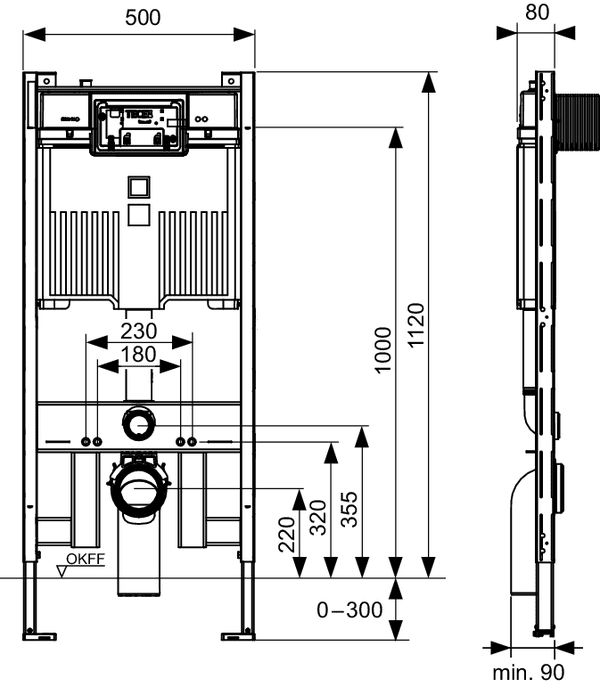

TECEprofil toilet module with Octa II cistern, 8 cm, installation height 1120 mm Toilet module including “easy fit” flush plate installation. For fitting to TECEprofil section tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module; also suitable for single block assembly. Octa II cistern 8 cm, for front actuation: Safety tank made of impact-resistant plastic, tested to EN 14055 Cistern fully pre-assembled and sealed Cistern connection with outer thread R 1/2" at the top, compatible with quick adapters 7-litre tank volume; 6-litre pre-set standard flush volume, 4.5-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; optional setting of a 4/2 litre flush volume possible. Insulated against condensation water For TECE flush plates and toilet flush handle Can be used as a single or dual-flush cistern “easy fit” flush plate installation Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109 Module frame: Self-supporting, powder-coated Two M 12 retaining bolts and nuts Toilet drain bend DN 90/90 PE-HD, including protective plug Toilet connection set DN 90 Suitable for floor projections up to 30 cm Ceramics installation spacing 180 mm or 230 mm Including wall attachment Item number: 9300500
