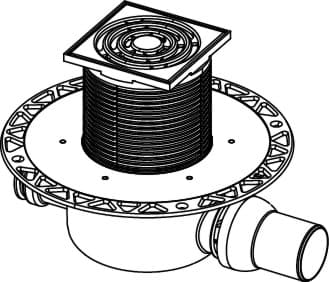

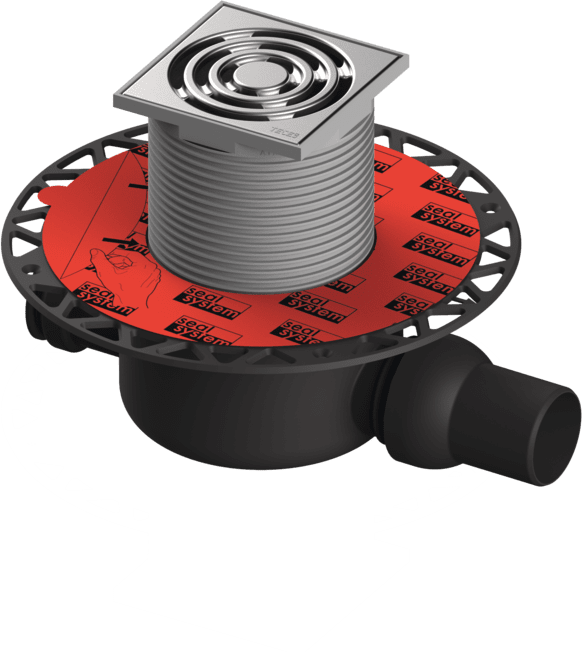

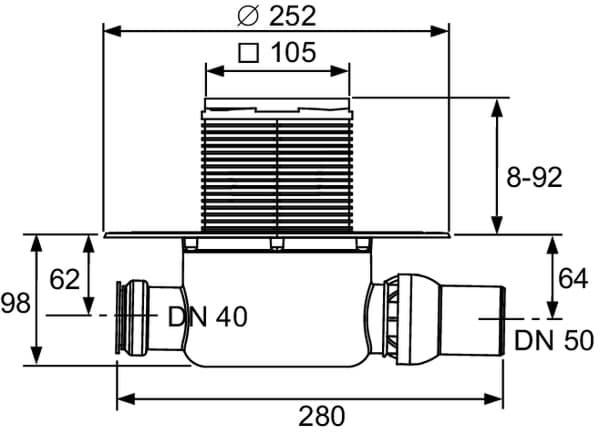

Floor drain set TECEdrainpoint S 120 horizontal, standard DN 50, tested to EN 1253. Consisting of: Drain body DN 50 horizontal, extra-flat, made of plastic (PP) With universal flange for connection of composite seals in accordance with DIN 18534 or clamped flange connections With integrated ball joint With lateral inflow DN 40 incl. closure plug With removable odour trap Sealing water height = 50 mm Drain top with grate frame made of plastic (ABS) and O-ring seal TECEdrainpoint S design grate made of drawn stainless steel, material 1.4301 (304), dimensions 100 x 100 mm, polished surface, load class K3 (load up to 300 kg) Drainage capacity to EN 1253 at 10/20 mm water level over grate: With minimum height of the drain top: 0.52/0.89 l/s With maximum height of the drain top: 0.64/1.35 l/s Delivery incl. protective cap, protective foil for on-site protection during construction, and assembly instructions. Please order separately – depending on seal type: Seal System sealing sleeve for the execution of an independently tested connection to the composite seal Compression ring set and cut-to-size sealing foil for clamped flange connections
