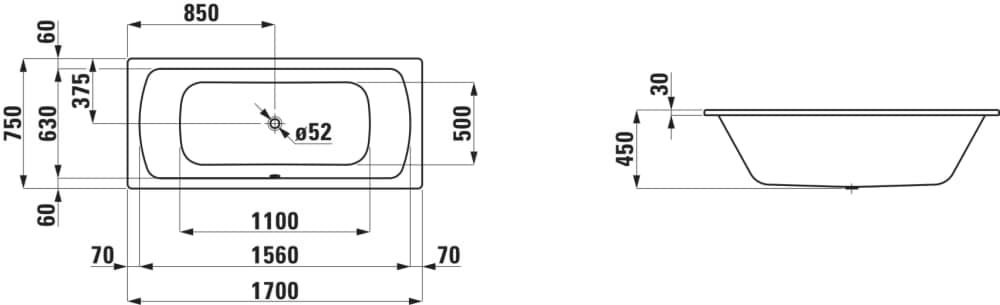

Dimensions: 1700 x 750 x 450 mm (length, width, height)
Drain set: Not included
Version: with anti-noise pads
Drain diameter (mm): 52
Installation position: Built-in version
Shape: Rectangular
Inner width of the tray (mm): 630
Internal height of the tray (mm): 450
Inside length of the tray (mm): 1560
Inside length at the bottom (mm): 1100
Inside width at the bottom (mm): 500
Installation structure: Without structure
Material: Steel
Net weight in kg: 56
Passenger capacity: 2
Steel thickness: 3.5 mm
Water capacity (litres): 225
Steel bath, with sound insulation pads (to DIN 4109)
Waste and overflow set, chrome-plated Article no. 29511.0 Waste and overflow set with bath inlet function, chrome-plated Article no. 29511.1 Sound insulation set, Article no. 29898.0 Insulation tape, Article no. 29555.1 Bath feet (incl. bath anchor), Article no. 29402.2 PORESTA bath support, Article no. 17.155.476 or SCHEDEL, Article no. SW 80432
