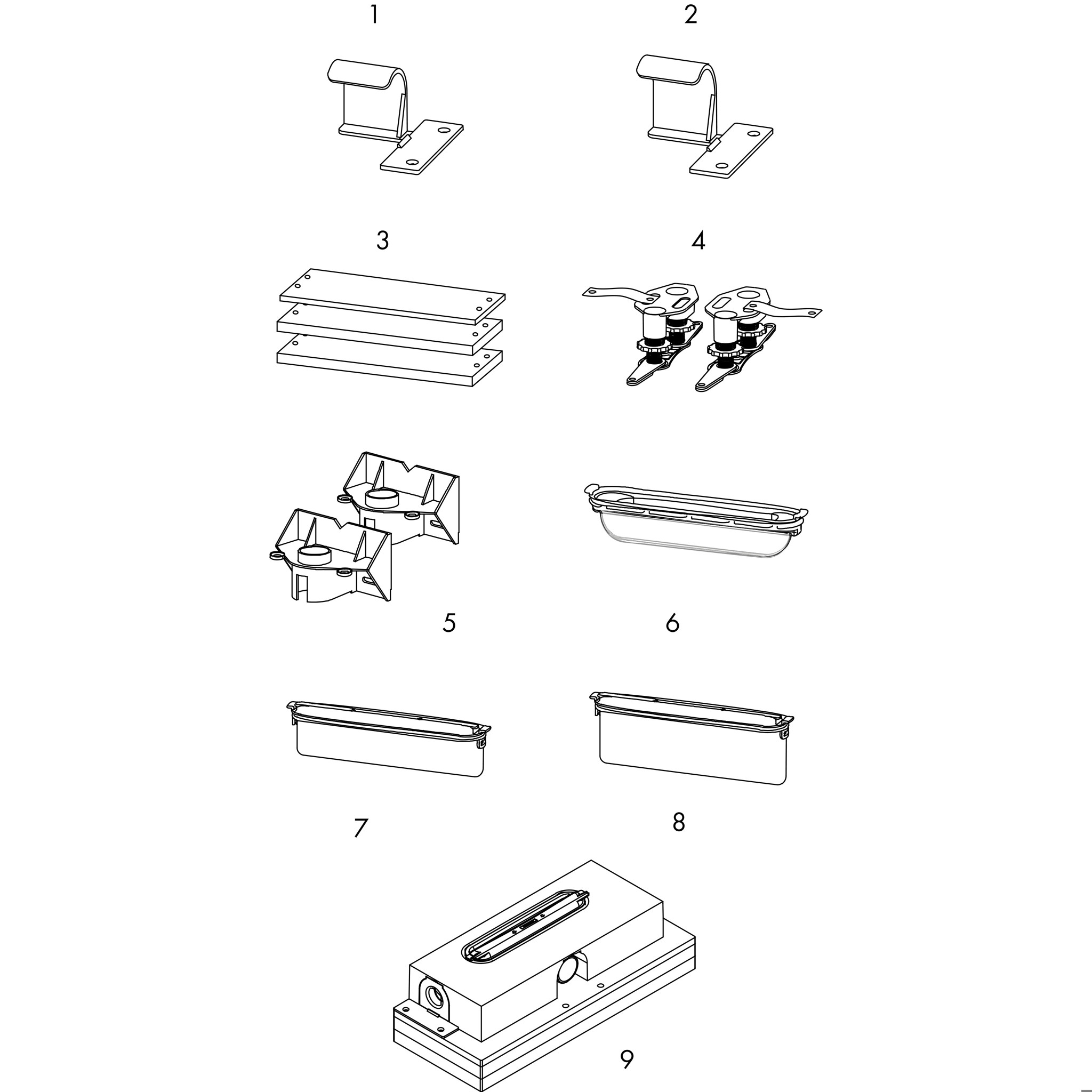

consists of: installation set, basic set, pre-assembled sealing membrane, trap, height adjustment boards
suitable for all RainDrain Rock and RainDrain Match finish sets
where to use: new construction, renovation
water seal height: 30 mm
drainage capacity with siphon: up to 33 l/min
drainage capacity with Dryphon: up to 55 l/min
connection diameter: DN40
direction of outlet: horizontal
connection: 3-sided
incl. height adjustment feet and tiling aid for installation
easy fixation to the floor with mounting bracket
height adjustable with the foam boards
with integrated slope
mounting type: wall-mounted, free in the floor
easy to clean siphon
removable siphon
material installation set: Stainless Steel 304 (1.4301)
