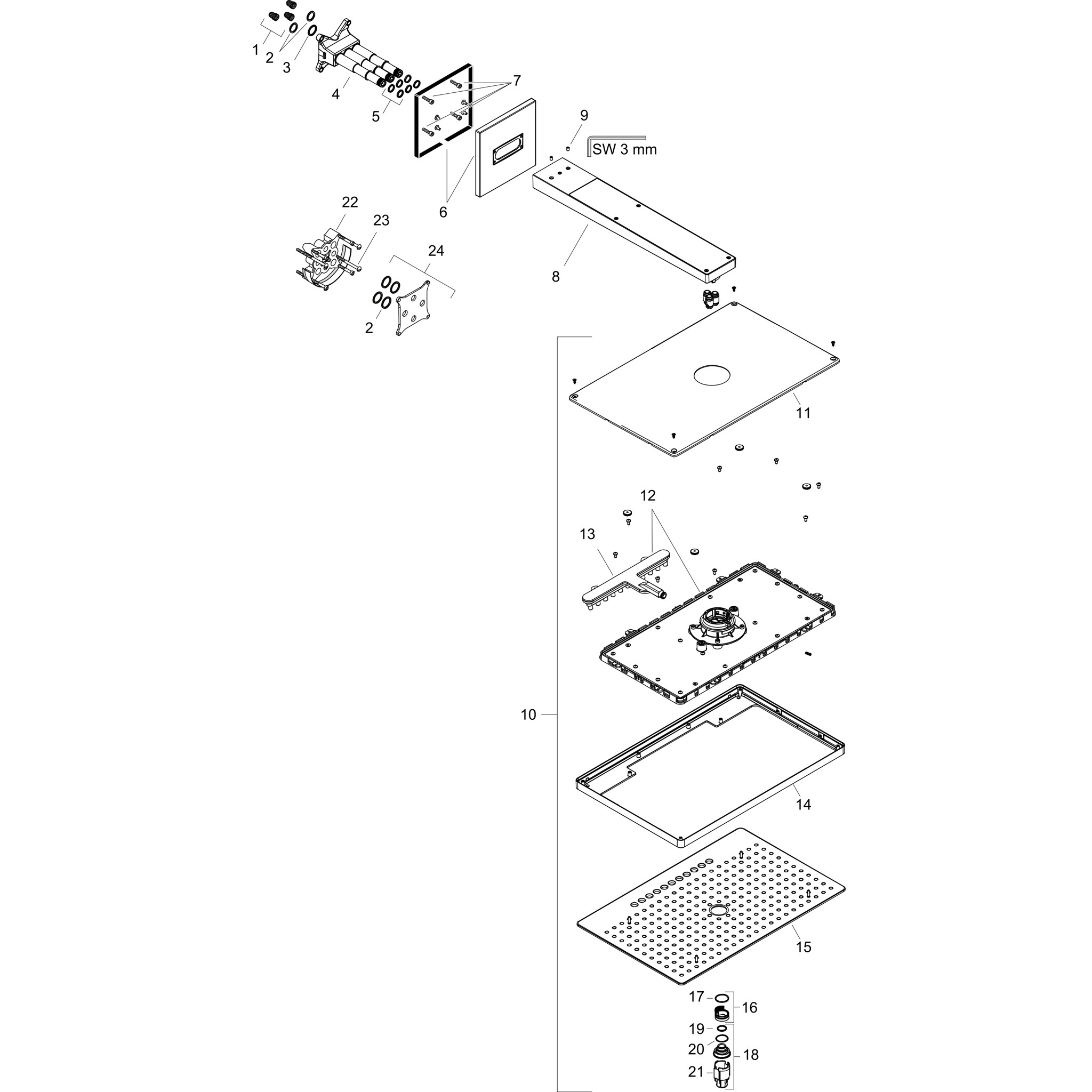

consists of: overhead shower, shower arm, escutcheon
shower head size: 466 x 300 mm
spray type: Rain, RainStream, MonoRain
flow rate Rain spray at 3 bar: 18 l/min
flow rate MonoRain spray at 3 bar: 18 l/min
flow rate RainStream spray at 3 bar: 15 l/min
function from: 12 l/min
maximum flow rate at 3 bar: 18 l/min
minimum flow pressure: 1,5 bar
material spray disc: plexiglas
spray disc surface: in glass optics, easy cleanable
spray disc removable for cleaning

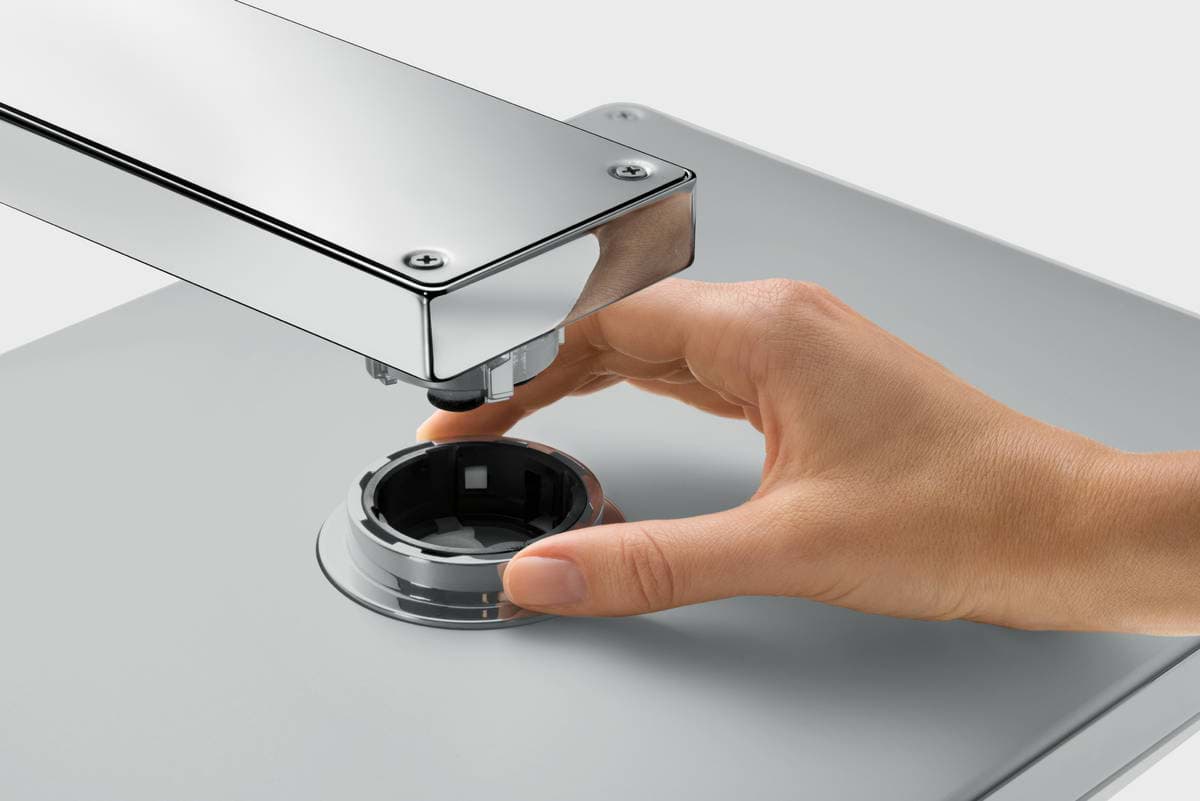

overhead shower removable for cleaning
shower arm length: 461 mm
the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
installation: wall-mounted - based on iBox
connection dimension: DN15
connection type: basic set
not suitable for continuous flow water heaters
