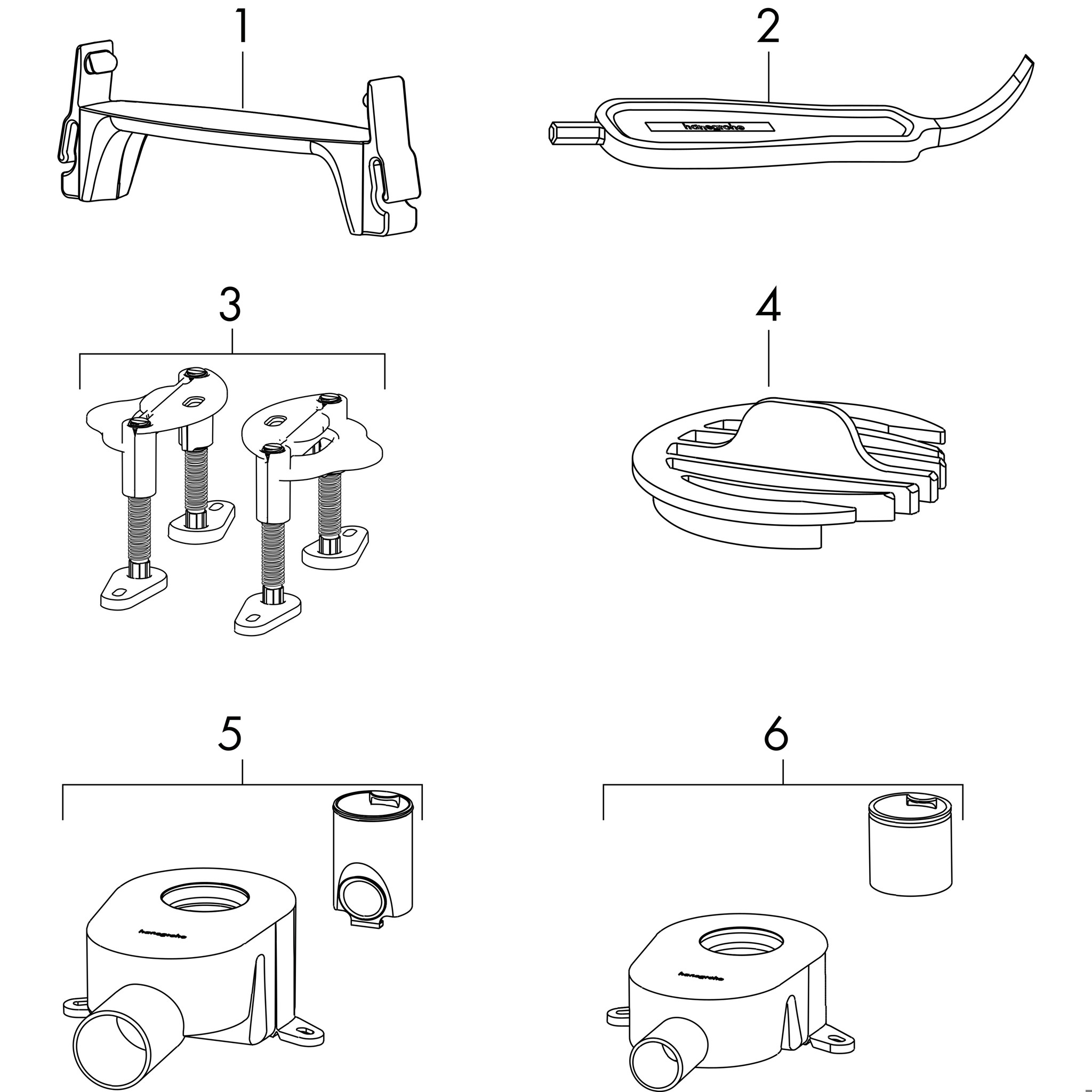

consists of: finish set shower drain, Siphons, installation set, pre-assembled sealing membrane, grate removal tool, hair catcher
grate material: Stainless Steel 304 (1.4301)
material installation set: Stainless Steel 304 (1.4301)
water seal height: 30 mm, 50 mm
connection diameter: DN40, DN50
direction of outlet: horizontal
easy to clean surface
height adjustable by 10 mm
drainage capacity flat installation: up to 31 l/min
drainage capacity standard installation: up to 39 l/min
where to use: new construction, renovation
tile thickness: up to 11 mm
rotatable and adjustable siphon body
easy to clean siphon
grate removal tool allows easy removal of the finish set
quick adjustable fastening feet
material siphon: ABS
mounting type: free in the floor
tileable on the back side
tile inlay depth: 12 mm
choice of two different siphons, for standard or flat installation
suitable for primary and secondary drainage
