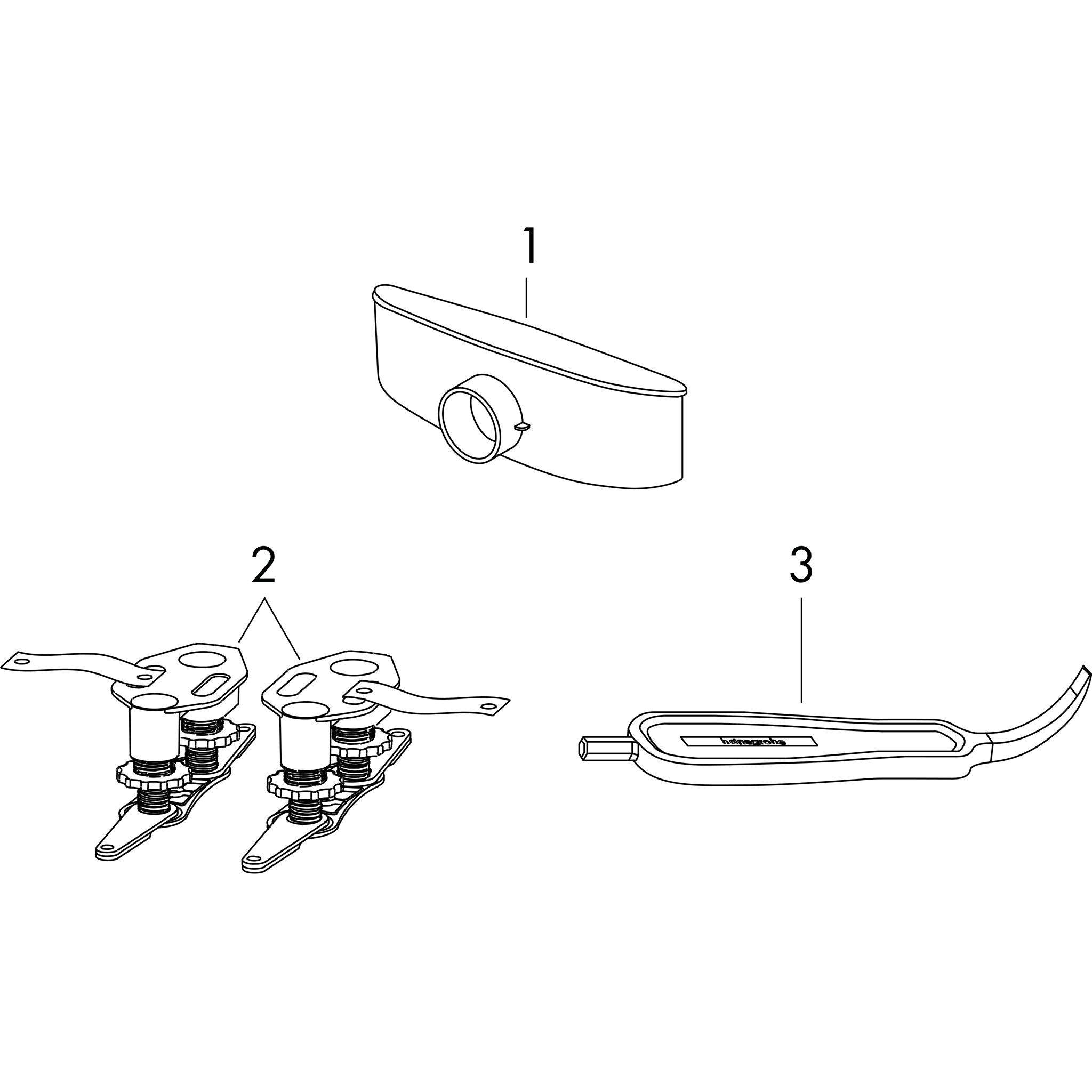

consists of: finish set shower drain, installation set, trap, grate removal tool, pre-assembled sealing membrane
grate material: Stainless Steel 304 (1.4301)
material installation set: Stainless Steel 304 (1.4301)
water seal height: 30 mm
connection diameter: DN40
direction of outlet: horizontal
easy to clean surface
height adjustable installation set
up to 27 l/min drainage capacity
where to use: renovation, new construction
tile thickness: up to 18 mm
removable water seal

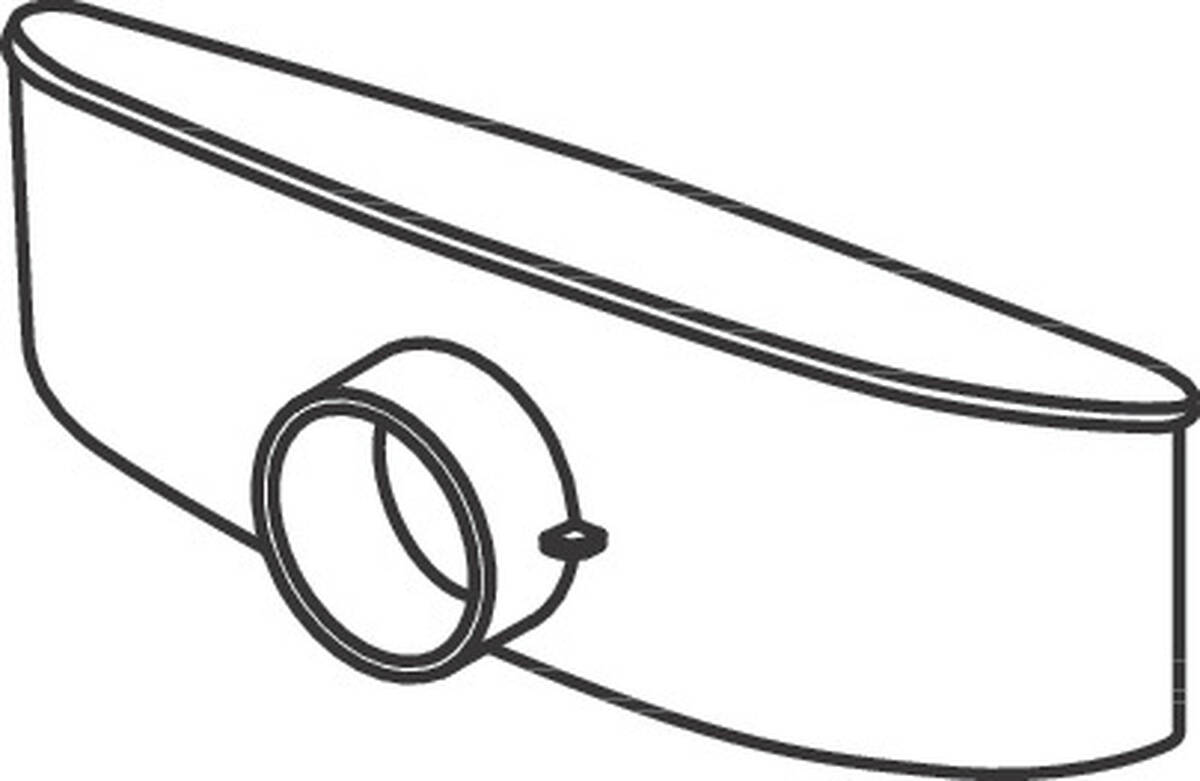

easy to clean siphon
grate removal tool allows easy removal of the finish set
type of odour seal: fluid
minimal construction height 43 mm
material siphon: ABS
mounting type: free in the floor
suitable for primary drainage
minimal installation height: 63 mm
