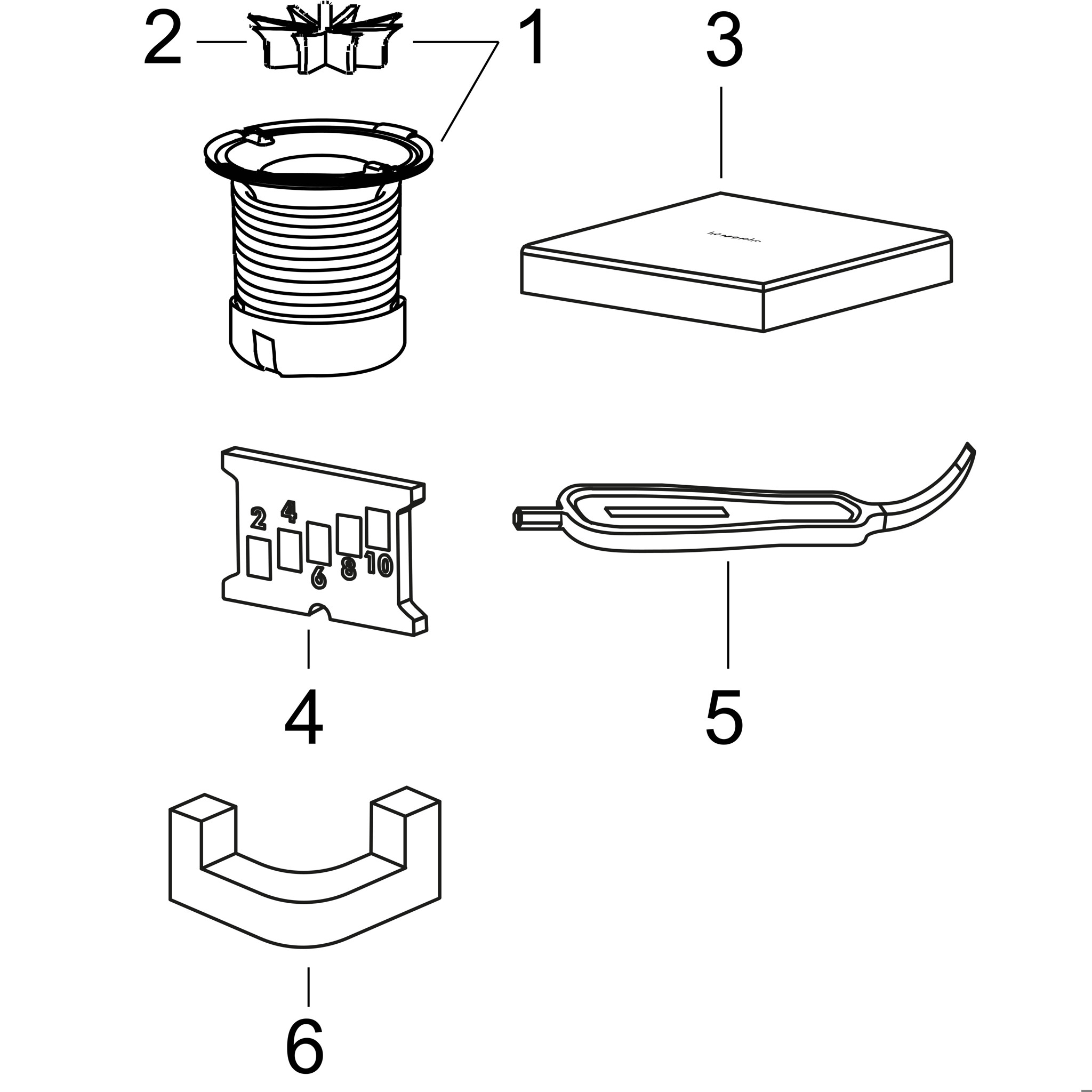

consists of: point drain, installation set, basic set, pre-assembled sealing membrane, grate removal tool, trap, screed protection cover
grate material: Stainless Steel 304 (1.4301)
water seal height: up to max. 50 mm
connection diameter: DN40
direction of outlet: horizontal
easy to clean surface
easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
up to 41 l/min drainage capacity
where to use: new construction, renovation
removable water seal
rotatable and adjustable siphon body
easy to clean siphon
grate removal tool allows easy removal of the finish set
with removable hair strainer
type of odour seal: fluid
minimal construction height 76 mm
material siphon: ABS
mounting type: free in the floor
tileable on the back side
simplified installation due to the cutable siphon
tile inlay depth: 12 mm
suitable for primary and secondary drainage
