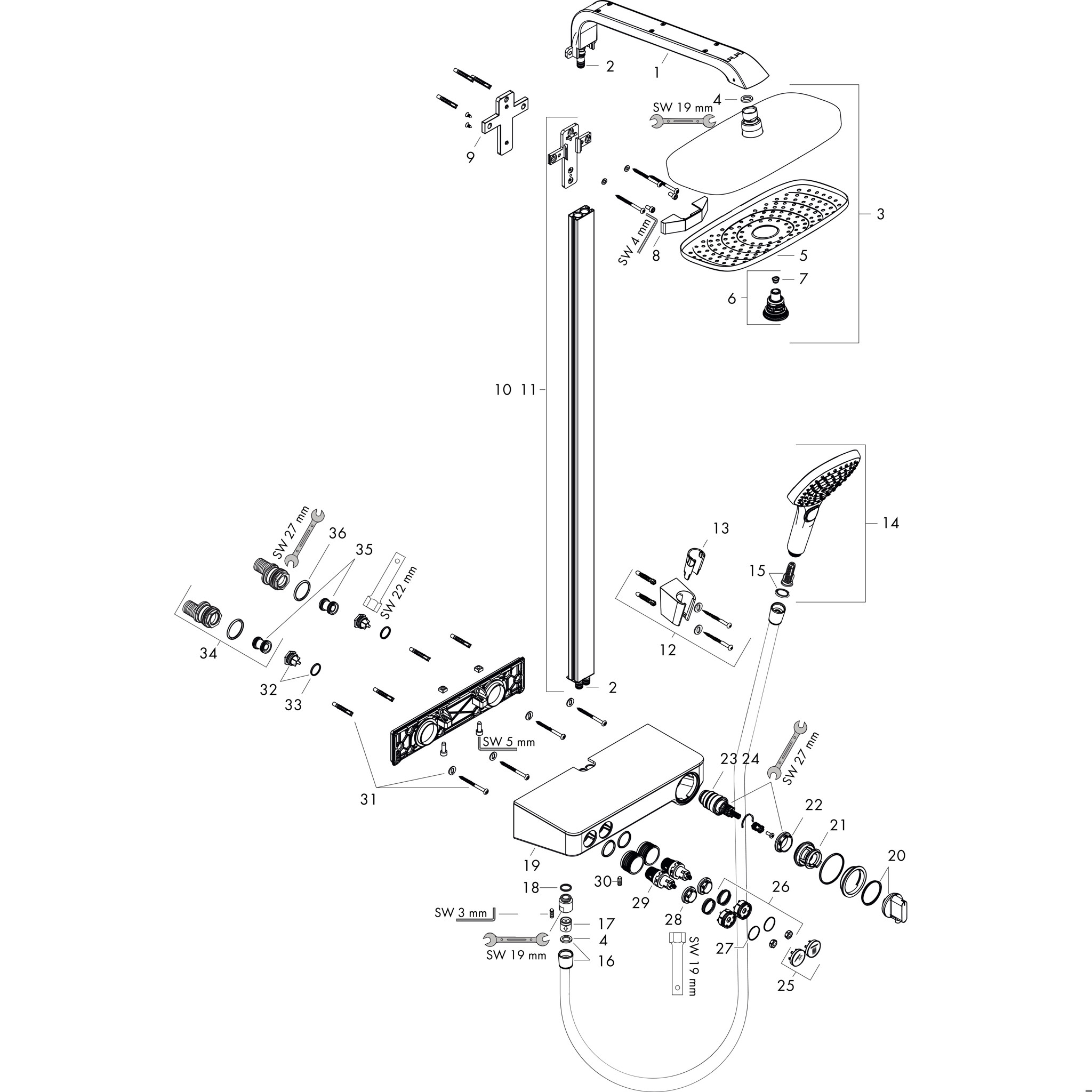

consists of: overhead shower, hand shower, shower thermostat, shower holder, shower hose, shower bar
overhead shower Raindance Select E 300 2jet
shower head size overhead shower: 300 x 160 mm
spray type overhead shower: RainAir, Rain
spray disc surface: white
shelf made of safety glass
surface shelf: white glass
spray type hand shower: RainAir, Rain, Whirl
maximum flow rate for Showerpipe at 3 bar: 16 l/min
minimum flow pressure: 1,5 bar
max. operating pressure: 10 bar
convenient spray selection via Select button
ball-joint: overhead shower angle adjustable
in case of installation on existing G ¾ connections, adaptor no.02026000 must be used
shower arm length overhead shower: 380 mm
CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat ShowerTablet Select 300
SafetyStop at 40°C
adjustable hot water limitation
convenient diversion via Select button
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
intrinsically safe against backflow
bar width: 40 mm
2 functions
flow rate RainAir spray at 3 bar: 16 l/min
