consists of: overhead shower, hand shower, slider, shower thermostat, shower hose, shower bar
overhead shower Raindance Alive S 300 2jet
shower head size overhead shower: 300 mm
spray type overhead shower: RainAir, PowderRain
spray disc surface: graphite
flow regulator: 12 l/min (with possible tolerances ± 10 %)
flow rate PowderRain spray at 3 bar: 10,8 l/min
spray type hand shower: RainAir, PowderRain, Massage spray
flow rate of hand shower at 3 bar: 8,4 l/min
maximum flow rate for Showerpipe at 3 bar: 10,8 l/min
minimum flow pressure: 1,2 bar
max. operating pressure: 10 bar
DropGuard reduces the dripping after stopping the shower to just a few seconds
convenient spray selection via Select button on the hand shower
ball-joint: overhead shower angle adjustable
design cover conceals the nozzles, flat, minimalist design
spray disc removable for cleaning
design cover can be removed easily and without tools for cleaning
design cover surface: graphite
height-adjustable, easy slide slider

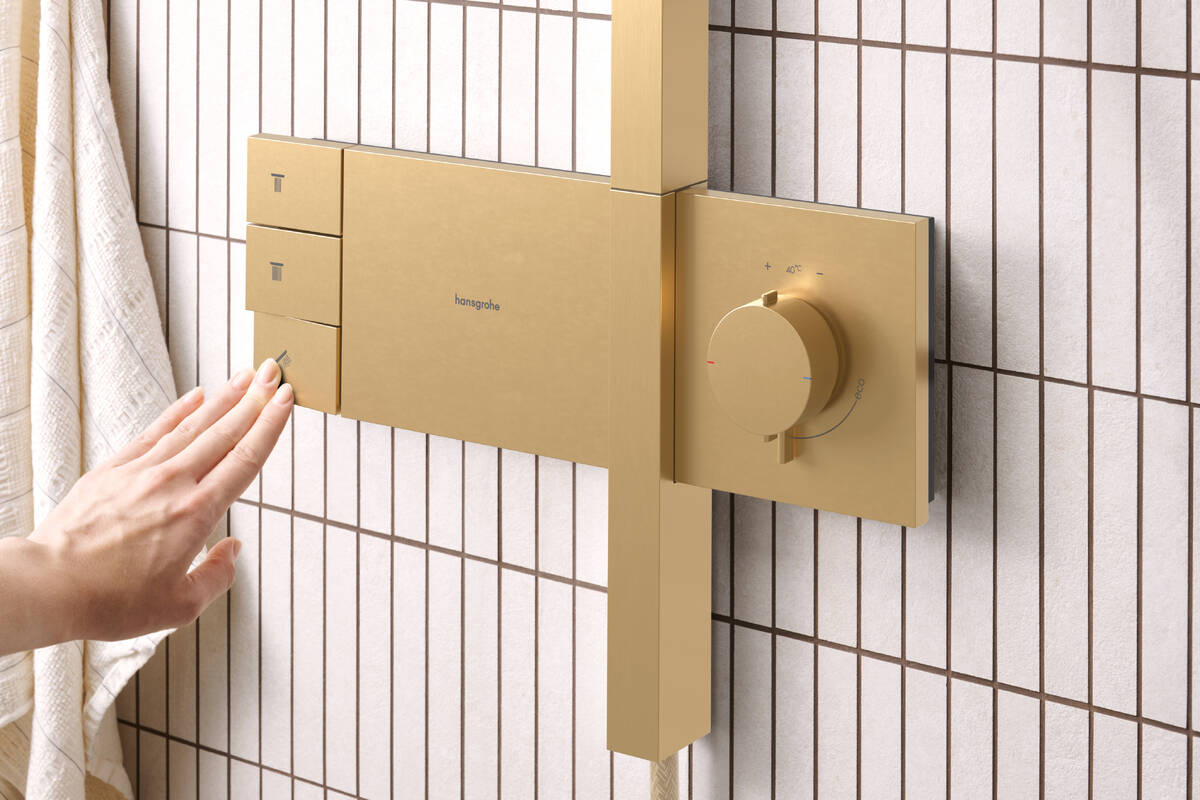

thermostat ShowerSelect Comfort E
material thermostat cover, handle and Select buttons: metal
SafetyStop at 40°C
adjustable hot water limitation
comfortable turning on / off of outlets with large Select-paddle
simultaneous use of several outlets
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread: G ½
centre distance: 150 ± 12 mm
intrinsically safe against backflow
Designflex textile shower hose, water-resistant and water-repellant material, unique design with multi-colored braided yarns
2 functions
flow rate RainAir spray at 3 bar: 10,7 l/min
