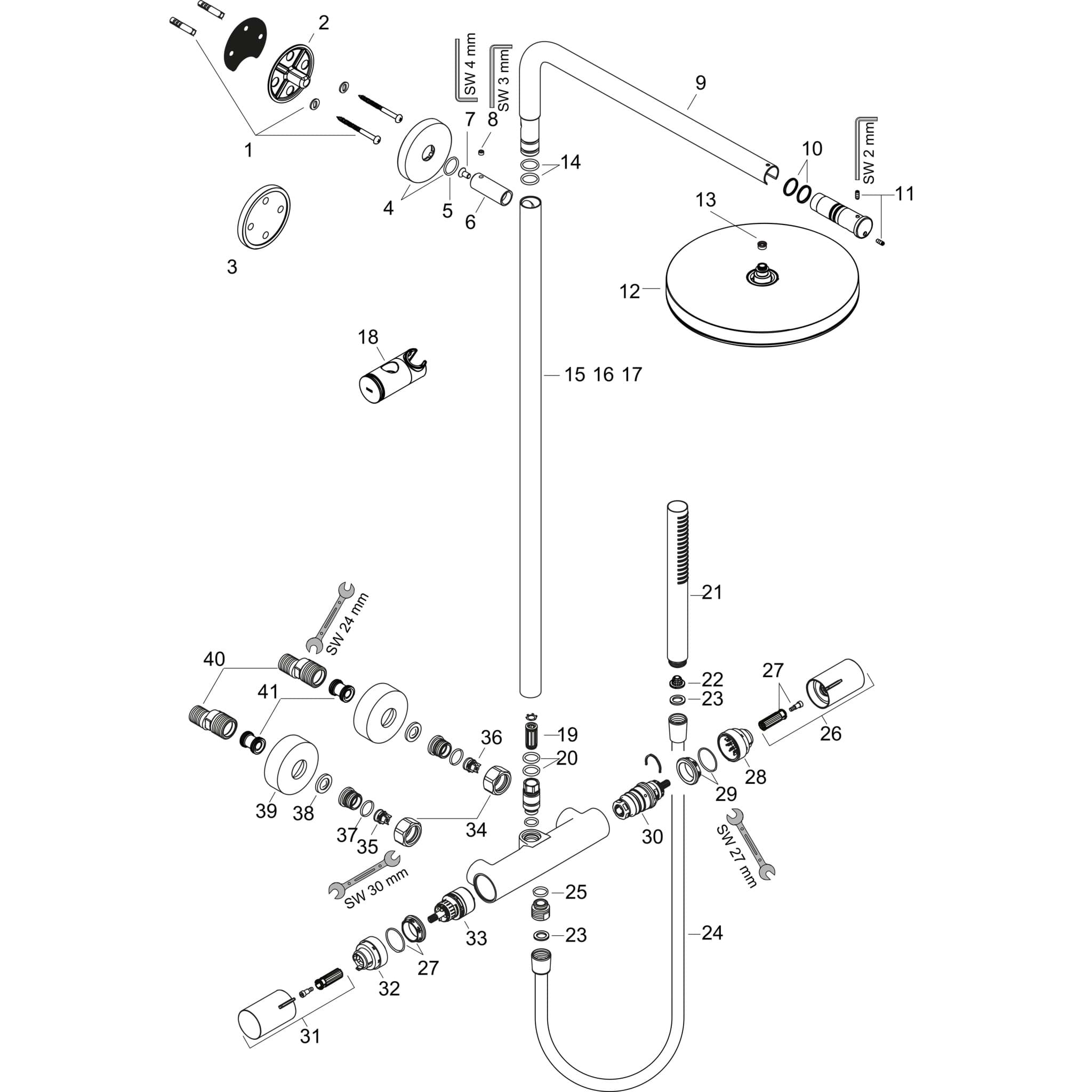

consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
overhead shower Pulsify 260 1jet
shower head size overhead shower: 260 mm

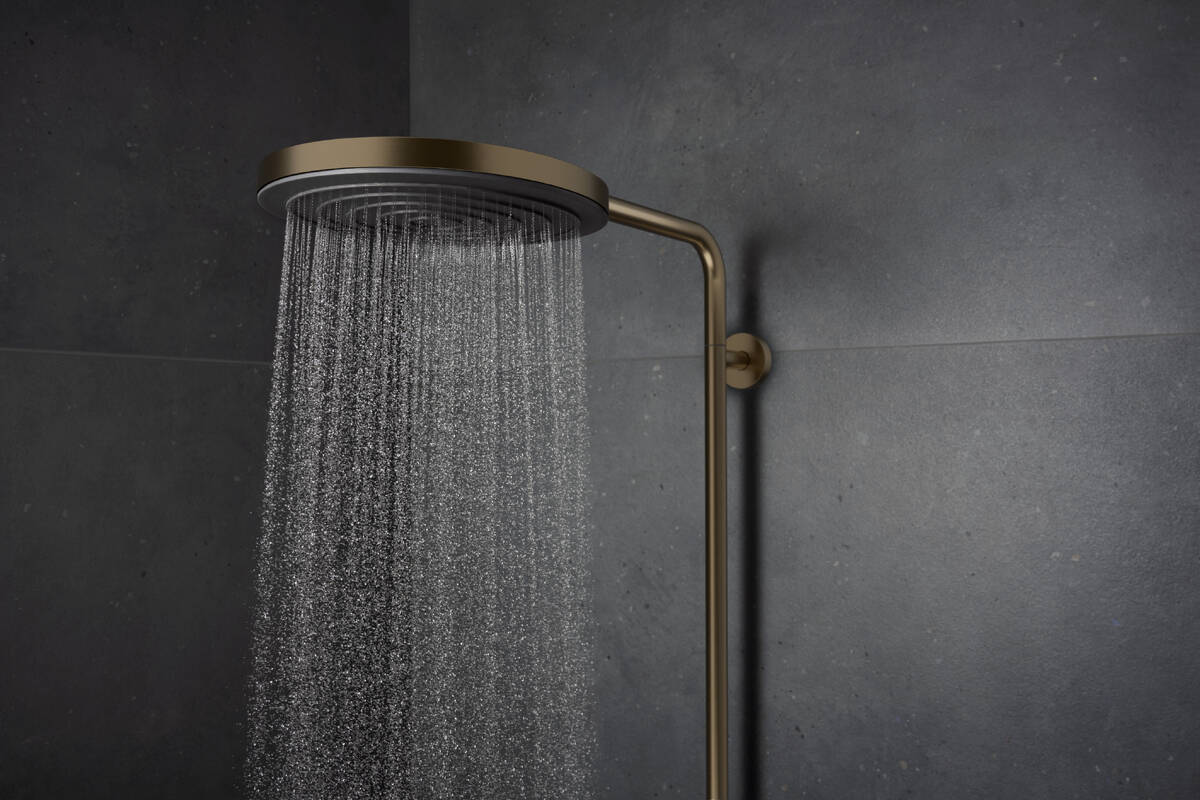

spray type overhead shower: PowderRain
spray disc surface: graphite
Fast Drain empties the overhead shower from an angle of 10°

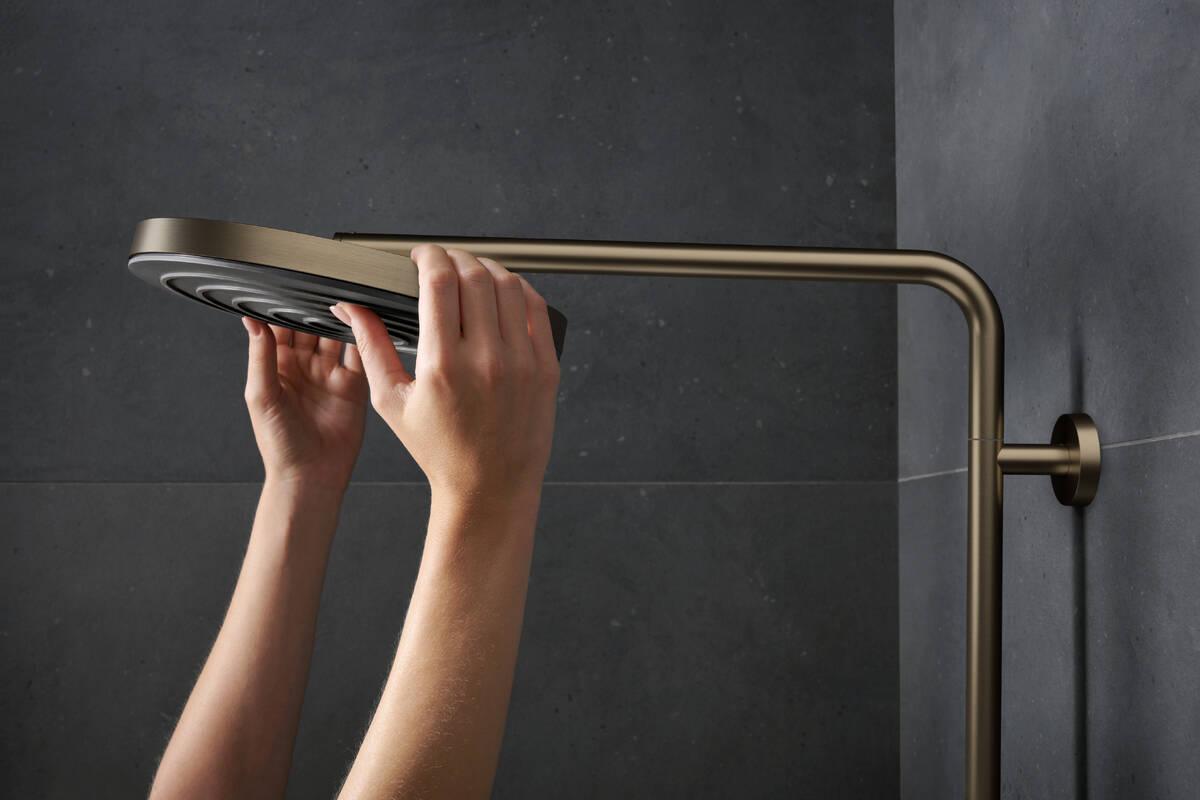

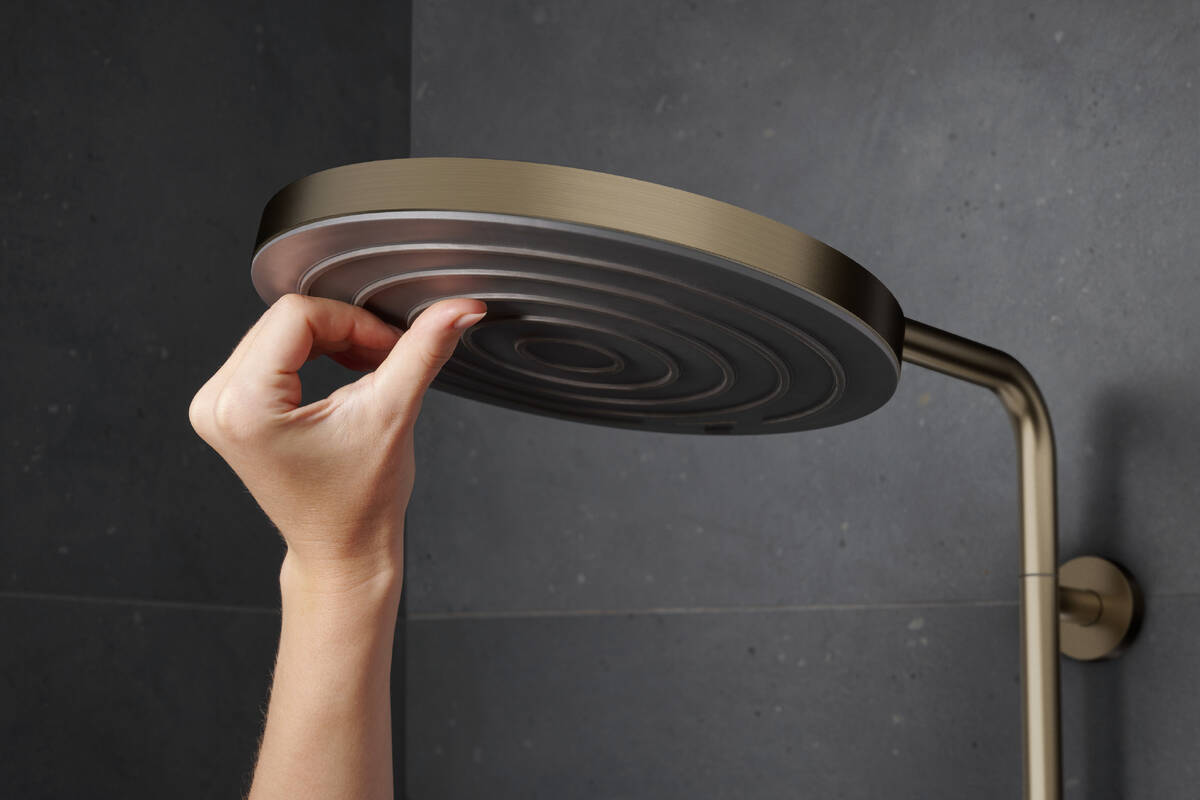

removable shower head
flow rate PowderRain spray at 3 bar: 11,2 l/min
spray type hand shower: PowderRain
flow rate of hand shower at 3 bar: 8 l/min
maximum flow rate for Showerpipe at 3 bar: 11,2 l/min
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
height-adjustable slider with locking push-button slider
slider rotatable on the pipe for left or right operation
shower arm length overhead shower: 460 mm
swivel shower arm

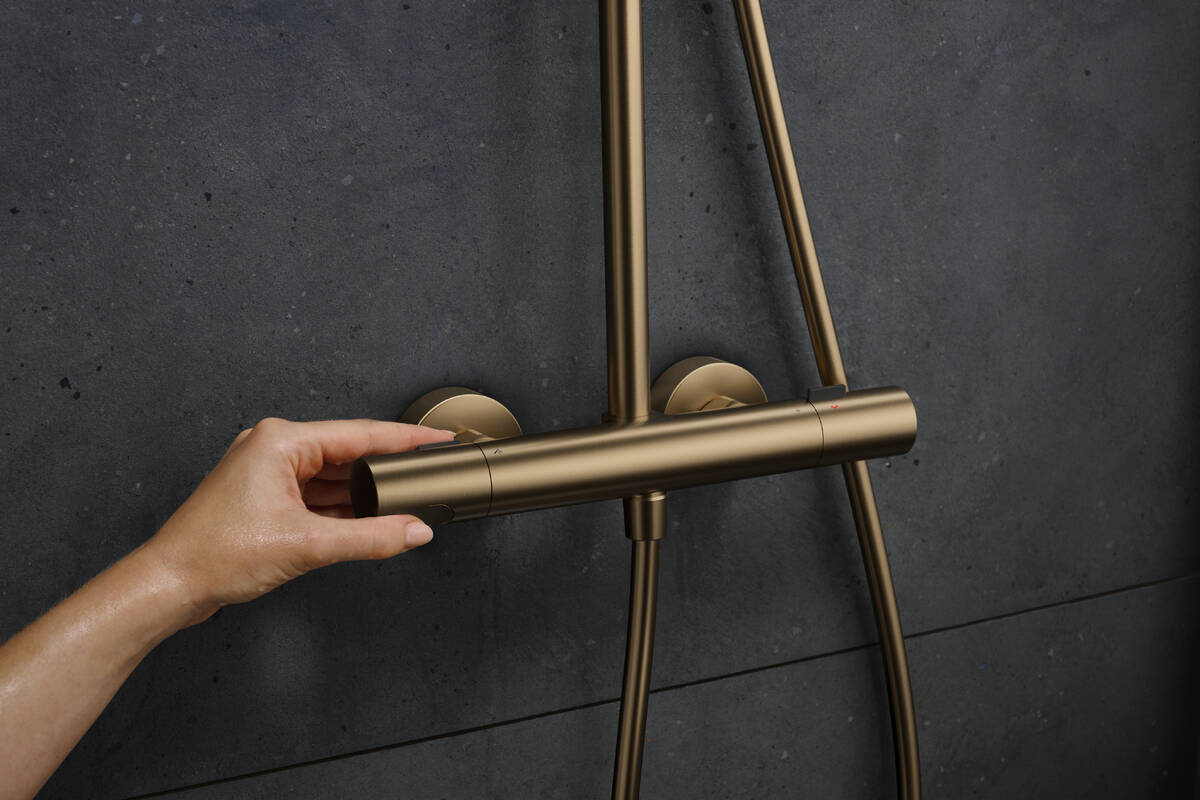

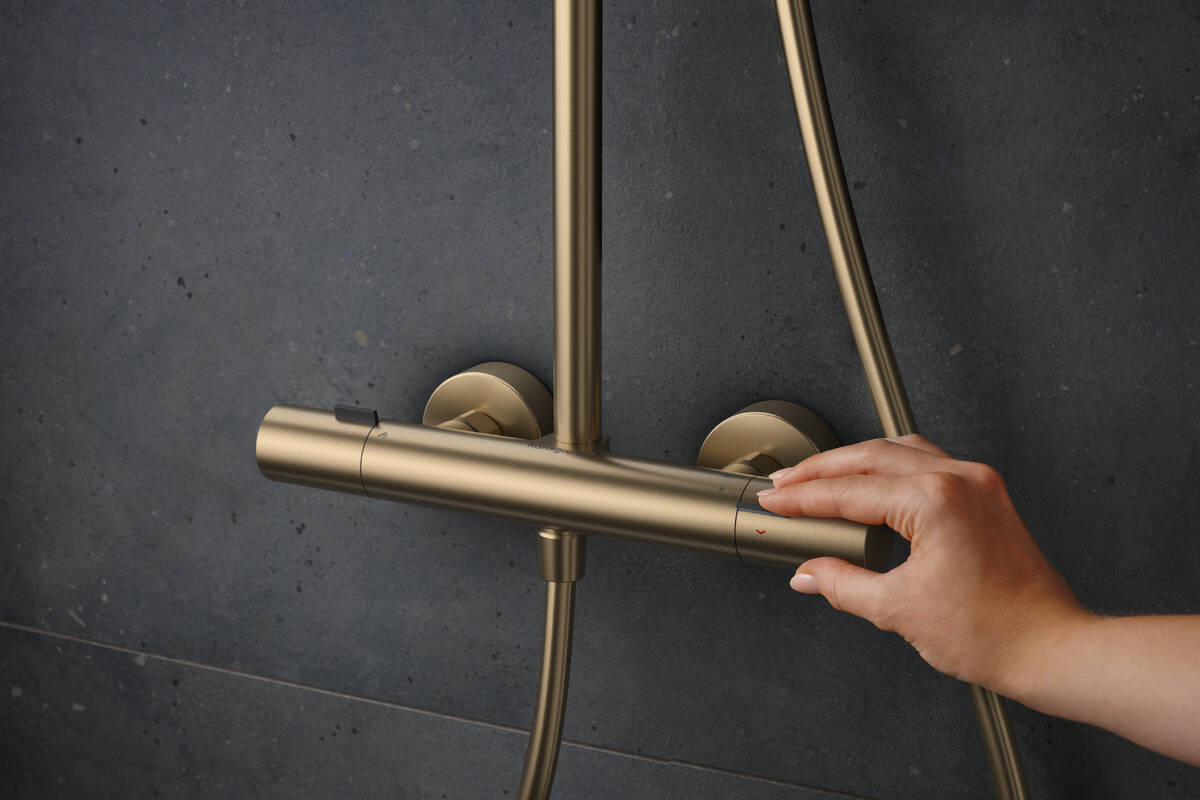

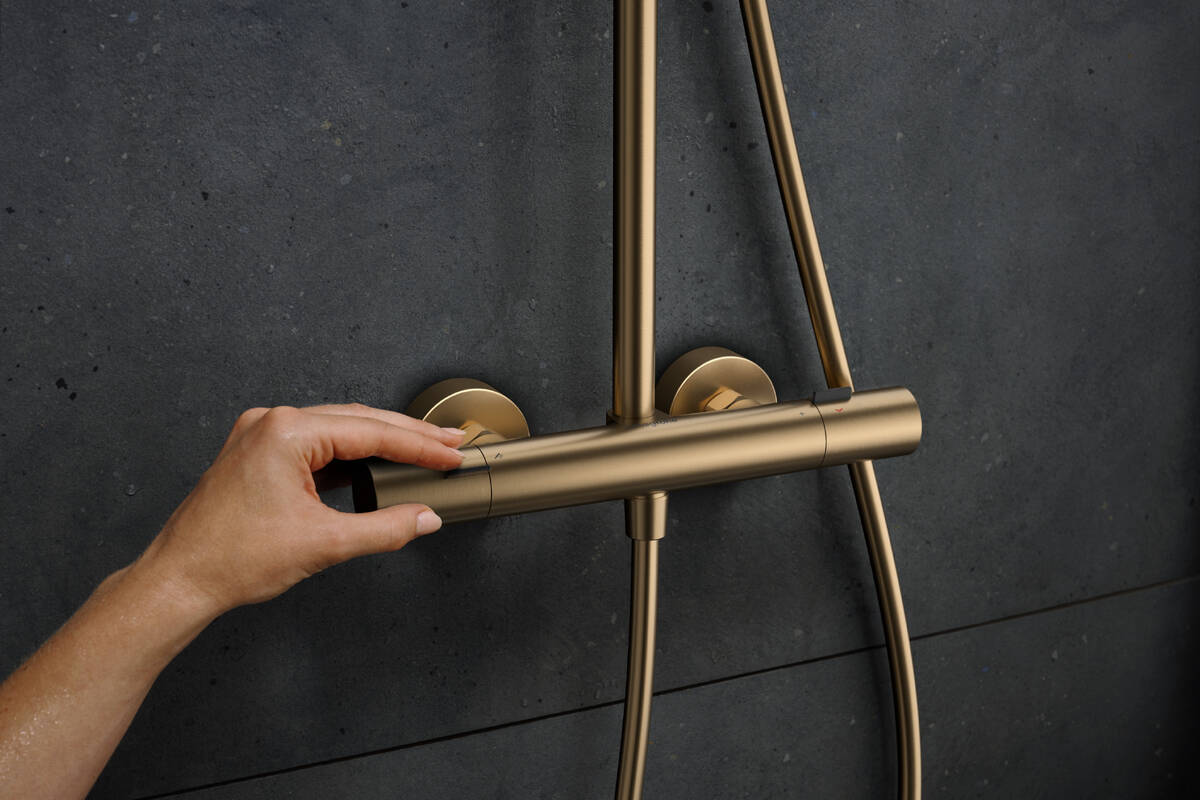

thermostat Ecostat Fine
safety stop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
will not run two functions at same time
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
pipe length: 1119 mm
shower bar diameter: 22 mm
2 functions
