3 functions
simultaneous use of several outlets
Select push-button on/off control for 3 functions
depending on volume flow and installation situation approx. 50% flow rate reduction

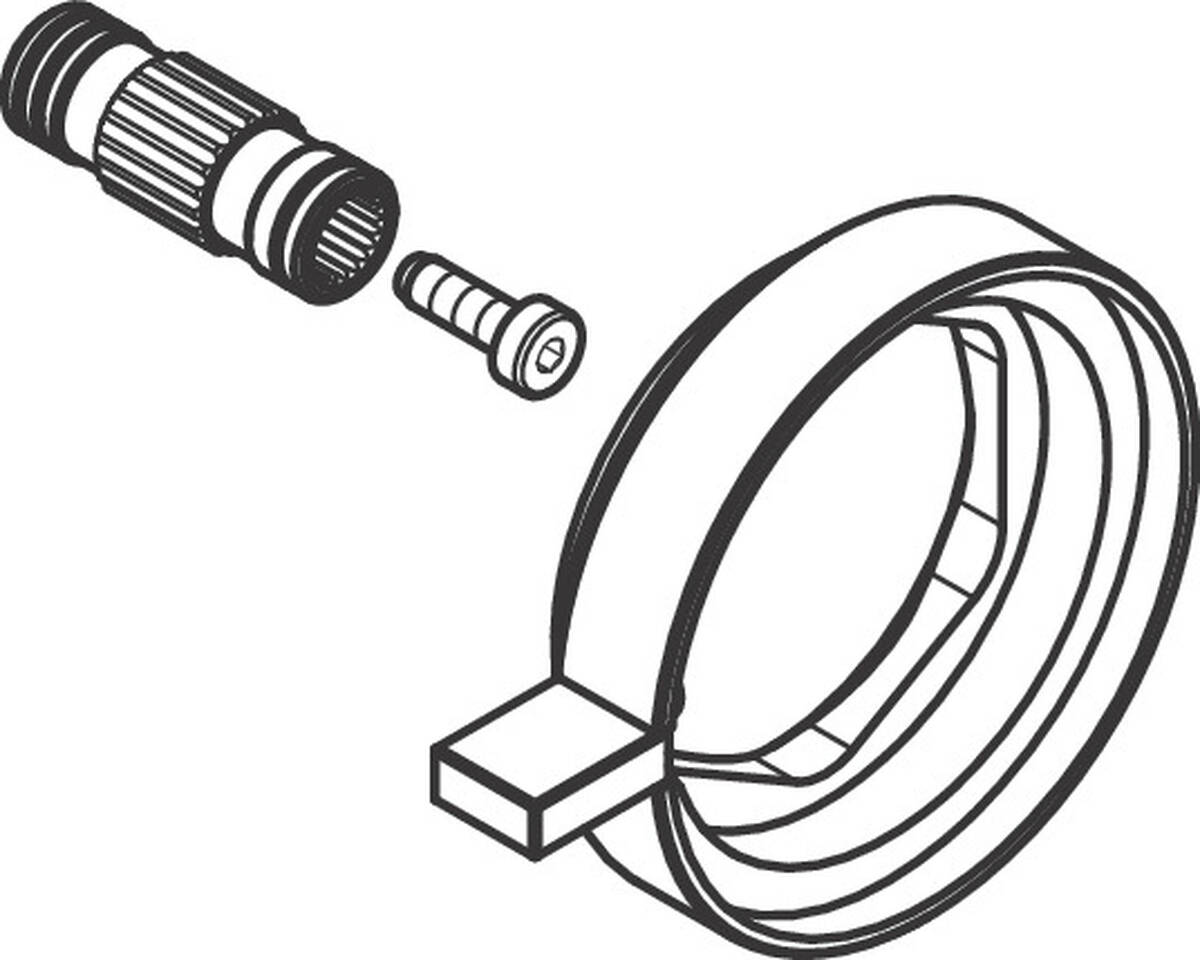

thermostat cartridge
flow rate of hand shower at 3 bar: 13 l/min
maximum flow rate at 1 bar: 12 l/min
maximum flow rate at 3 bar: 21 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
shelf made of safety glass
surface shelf: frosted grey glass
connection dimension: DN15
connection type: basic set
