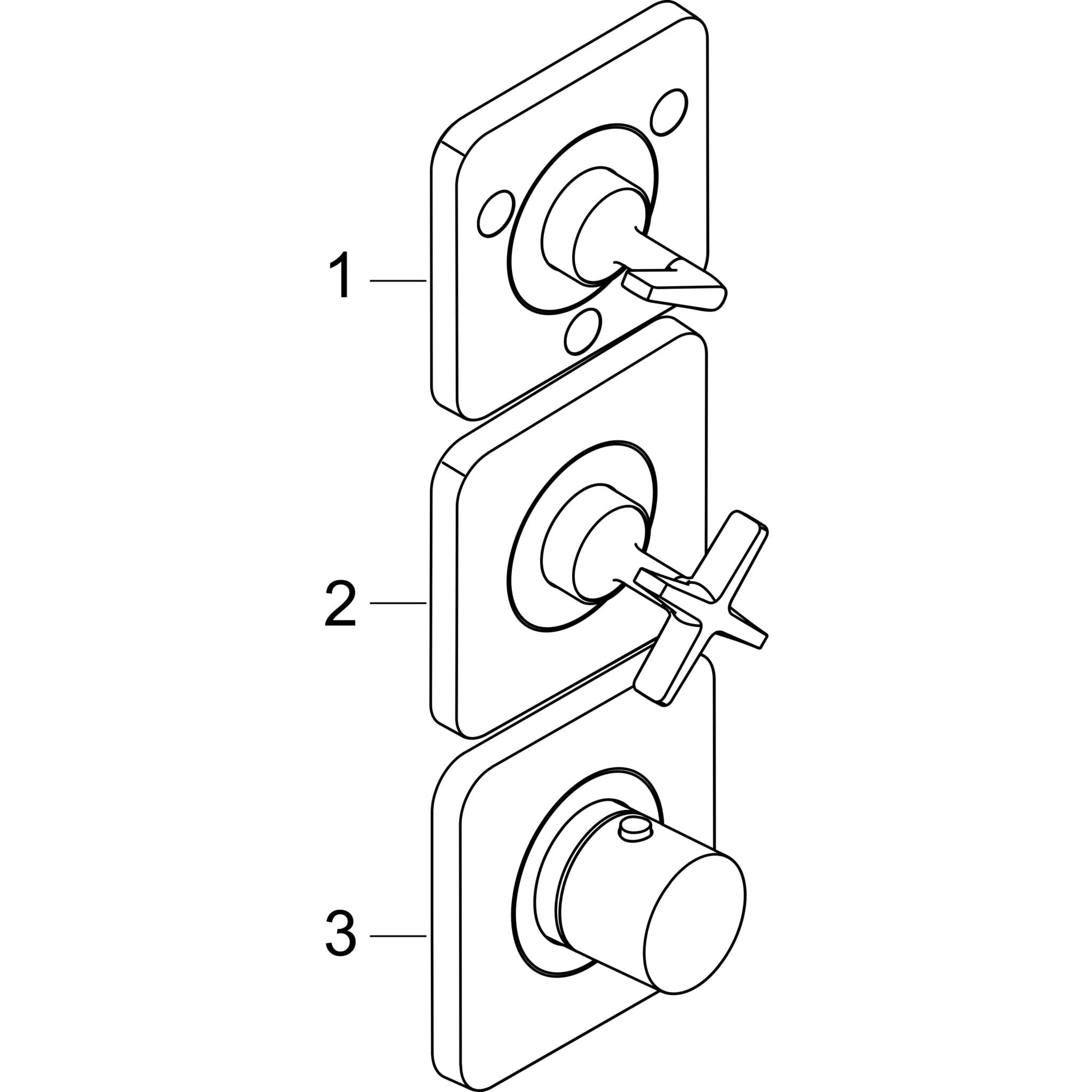

consists of: shower thermostat, shut-off valve, diverter valve
simultaneous utilization of 2 functions
thermostat cartridge
maximum flow rate at 1 bar: 19 l/min
flow rate lower outlet: 37,9 l/min
flow rate left and right: 37,9 l/min
maximum flow rate at 3 bar: 42 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
combination of highflow thermostat with shut-off valve and Quattro diverter valve for controlling 3 consumers
Safety stop at 40 °C
temperature limitation adjustable
connection dimension: DN20
connection type: basic set
