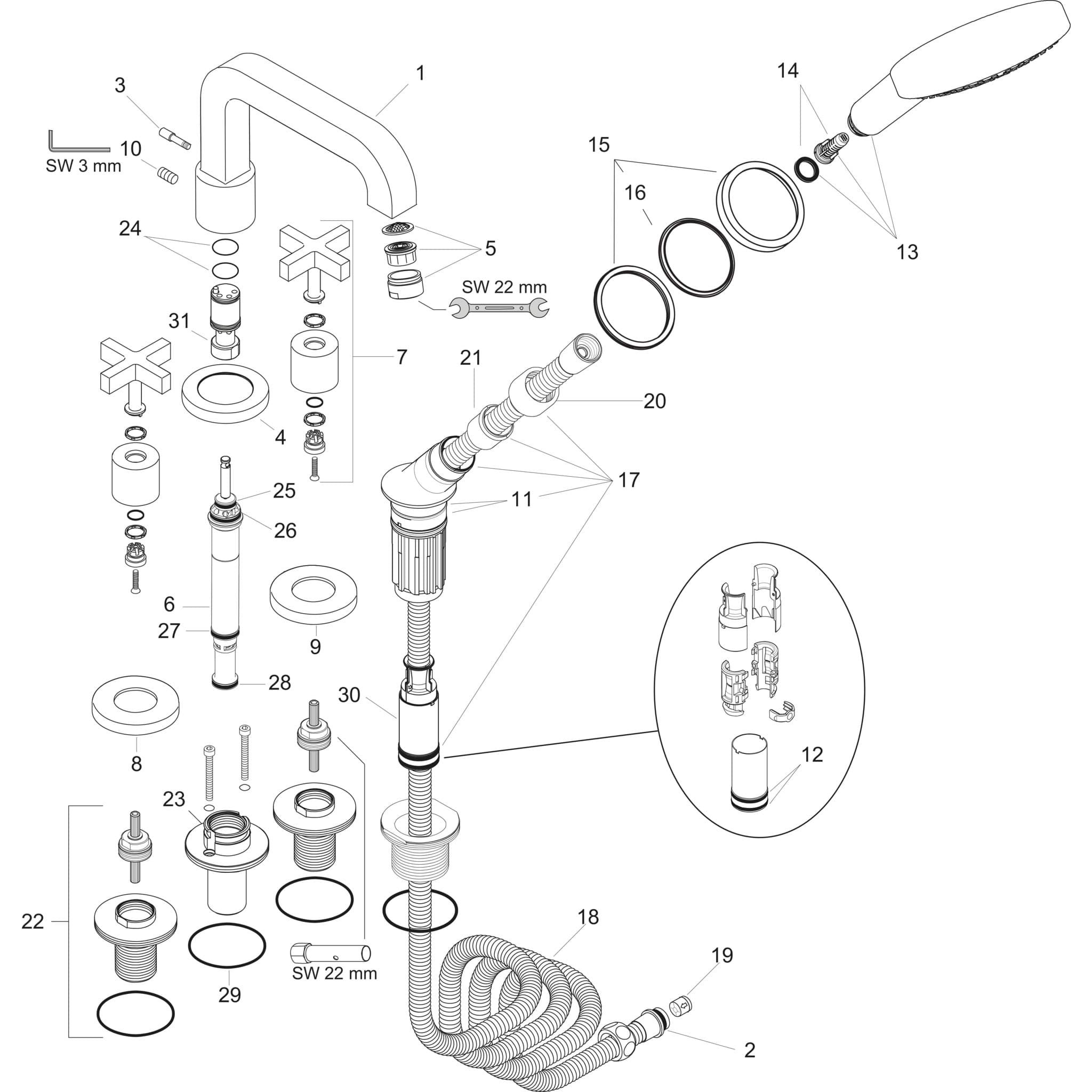

consists of: 4-hole tile mounted bath mixer, hand shower, shower holder, shower hose
2 functions
projection: 190 mm
spray type mixer: normal spray
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 21 l/min
flow rate for bath spout at 3 bar: 21 l/min
flow rate of hand shower at 3 bar: 18 l/min
ceramic valves hot/cold 90°
diverter with automatic resetting
non-return valve
connection dimension: DN15
connection type: basic set
tile mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
no additional maintenance opening required
spray type hand shower: RainAir, Rain, WhirlAir
