Features
Mechanical parts
ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

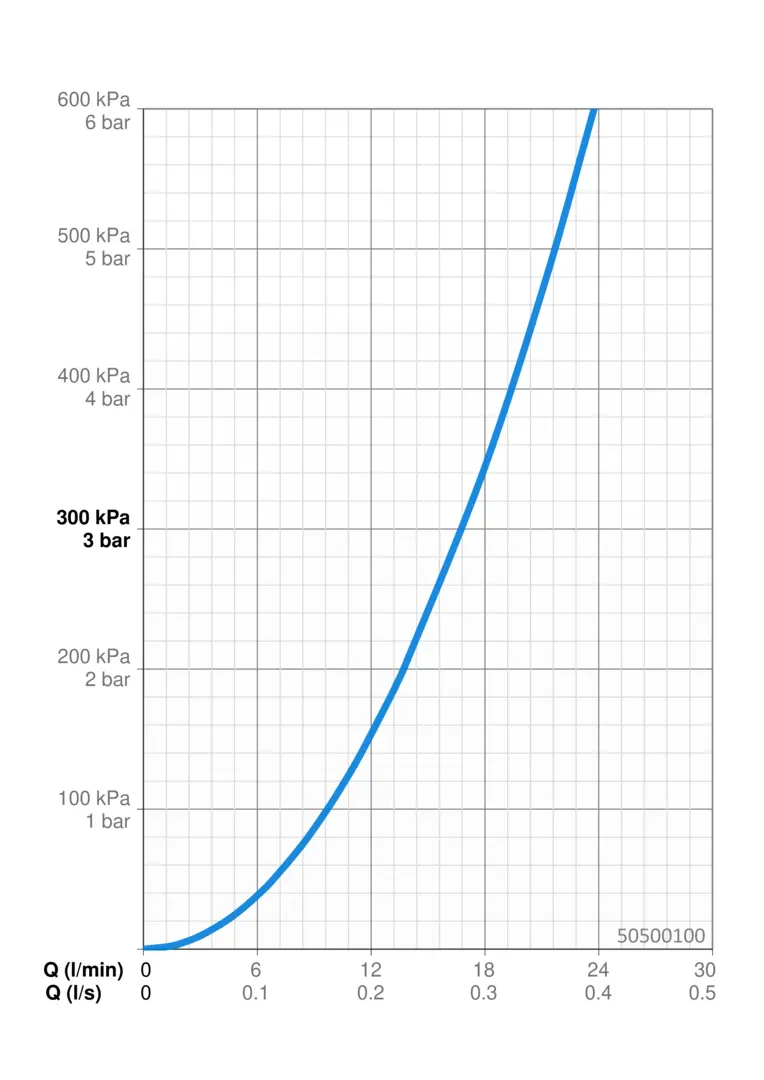

Flow attributes
Flow-rate at 3 bar
16.8 l/min
Technical properties
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
Sustainability
EPD module A1 (kg CO2 eq.)
4,37
EPD module A1-A3 (kg CO2 eq.)
4,99
EPD module A2 (kg CO2 eq.)
0,20
EPD module A3 (kg CO2 eq.)
0,42
EPD module A4 (kg CO2 eq.)
0,11
EPD module B7 (kg CO2 eq.)
5191,20
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,01
EPD module C4 (kg CO2 eq.)
0,15
EPD module D (kg CO2 eq.)
-3,59
