Features
Aerator
PCA® - constant flow rate regardless of pressure variations
Connection
Flexible inlet pipes
Lever/Handle
Hot/Cold symbols, Pin shape, Single operating lever/handle
Mechanical parts
ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

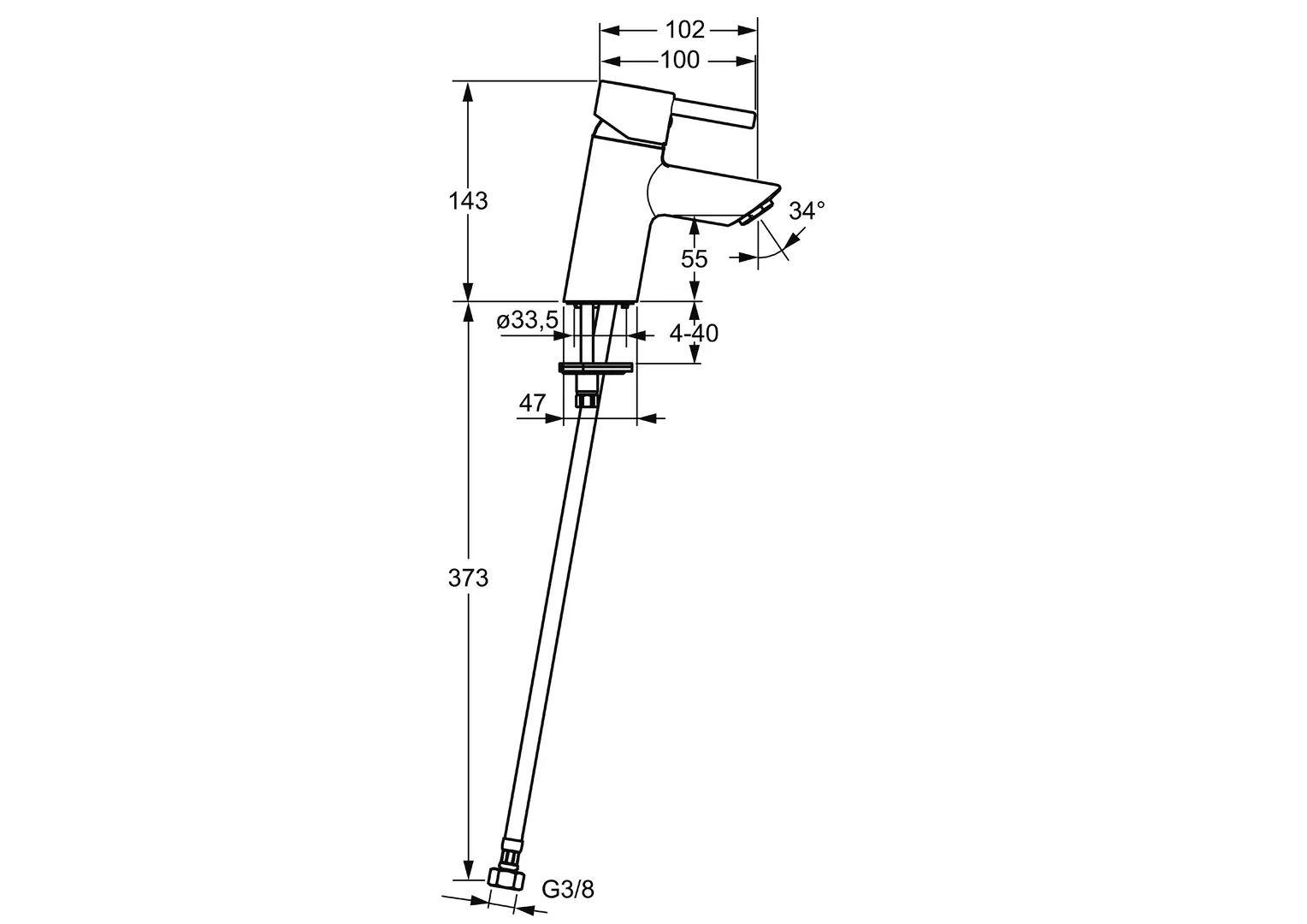

Projection
102 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Approvals and Declarations
KIWA
K6116/08
