Features
Aerator
Standard aerator
Connection
Flexible inlet pipes
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Mechanical parts
ø 30 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Swivel spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate

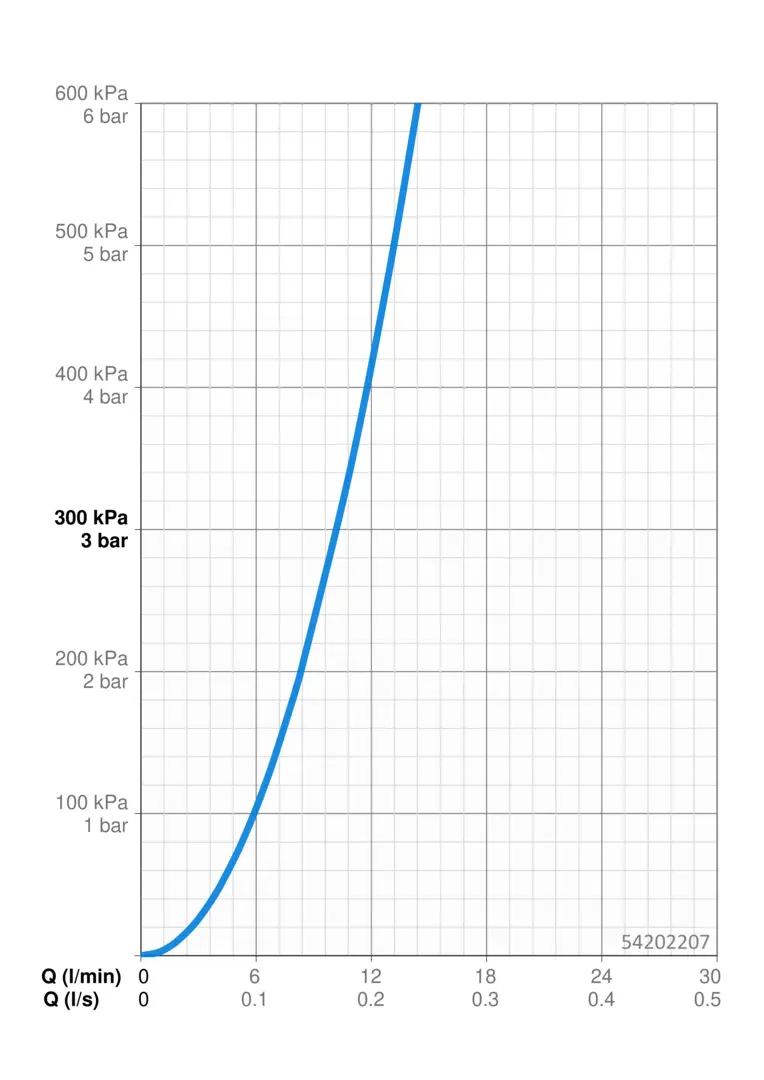

Flow attributes
Flow-rate at 3 bar
10.2 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
Hot water supply
max. +70°C
Material
Brass

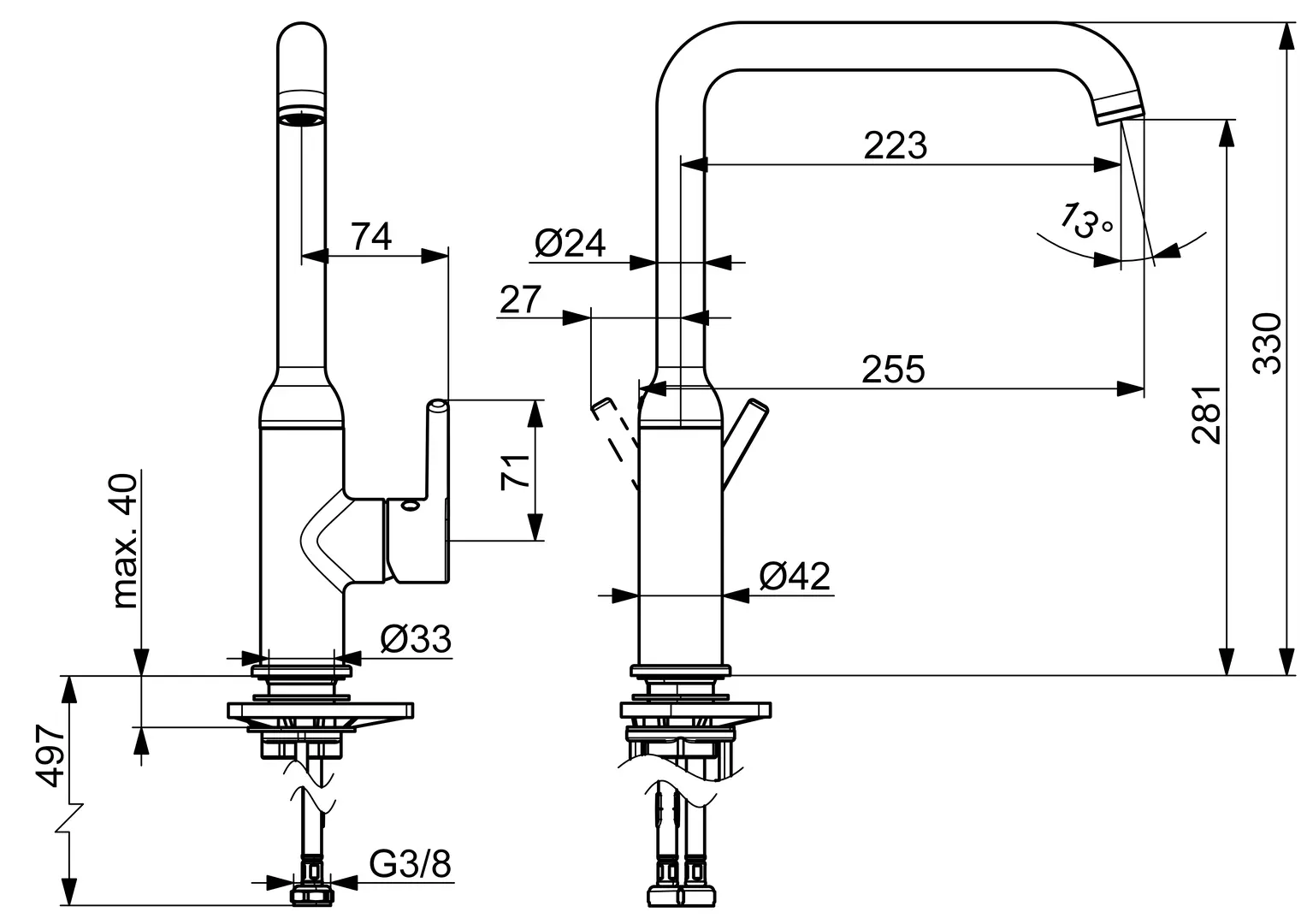

Projection
223 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
8,45
EPD module A1-A3 (kg CO2 eq.)
12,56
EPD module A2 (kg CO2 eq.)
0,40
EPD module A3 (kg CO2 eq.)
3,71
EPD module A4 (kg CO2 eq.)
0,25
EPD module B7 (kg CO2 eq.)
4018,80
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,38
EPD module D (kg CO2 eq.)
-7,10
