Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Eccentric coupling(s), Cover plate(s)
Diverter
Pull operated diverter, Automatic reset
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

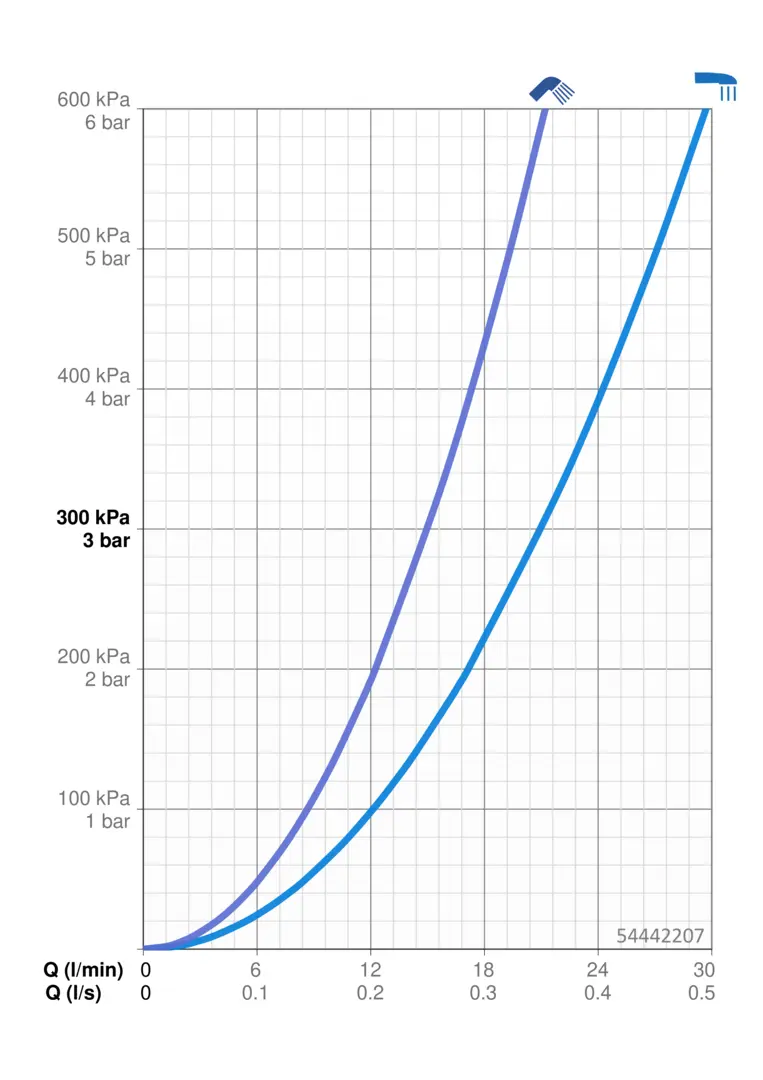

Flow attributes
Flow-rate at 3 bar
21 / 15 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/4
Hot water supply
max. +80°C
Installation width
150 ± 15 mm
Material
Brass
Projection
168 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
II (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
13,09
EPD module A1-A3 (kg CO2 eq.)
15,20
EPD module A2 (kg CO2 eq.)
0,61
EPD module A3 (kg CO2 eq.)
1,51
EPD module A4 (kg CO2 eq.)
0,54
EPD module B7 (kg CO2 eq.)
2637,50
EPD module C2 (kg CO2 eq.)
0,03
EPD module C3 (kg CO2 eq.)
0,03
EPD module C4 (kg CO2 eq.)
1,08
EPD module D (kg CO2 eq.)
-9,65
