Features
Concealed parts
Rosette plate frame, Round rosette, BLUECLICK for an easy, screwless trim plate installation, Fastening of the function unit with screws, Function unit
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Color
Matt black
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes

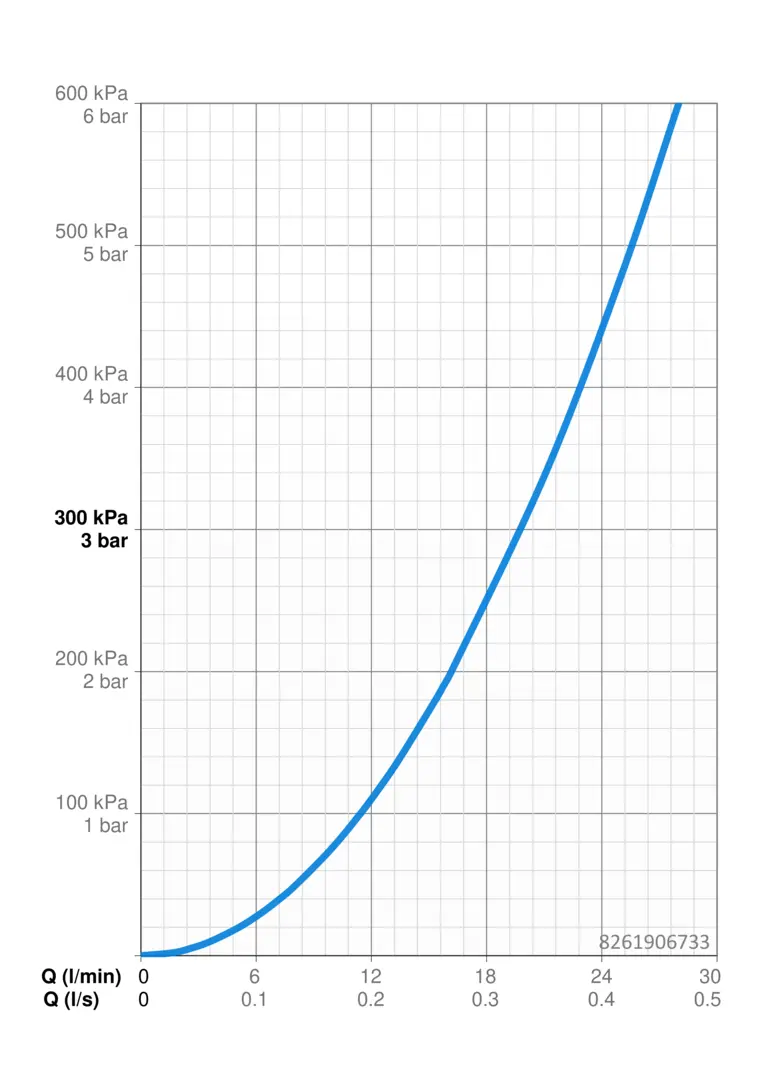

Flow-rate at 3 bar
19.8 l/min
Technical properties
Hot water supply
max. +80°C
Material
Brass
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
12,25
EPD module A1-A3 (kg CO2 eq.)
20,21
EPD module A2 (kg CO2 eq.)
0,39
EPD module A3 (kg CO2 eq.)
7,65
EPD module A4 (kg CO2 eq.)
0,33
EPD module B7 (kg CO2 eq.)
3821,40
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,26
EPD module D (kg CO2 eq.)
-6,25
