Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Connection
Eccentric coupling(s), Cover plate(s), Silencer(s)
Lever/Handle
Single operating lever/handle, Hot/Cold symbols, Pin shape
Mechanical parts
Non-return valve(s), ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

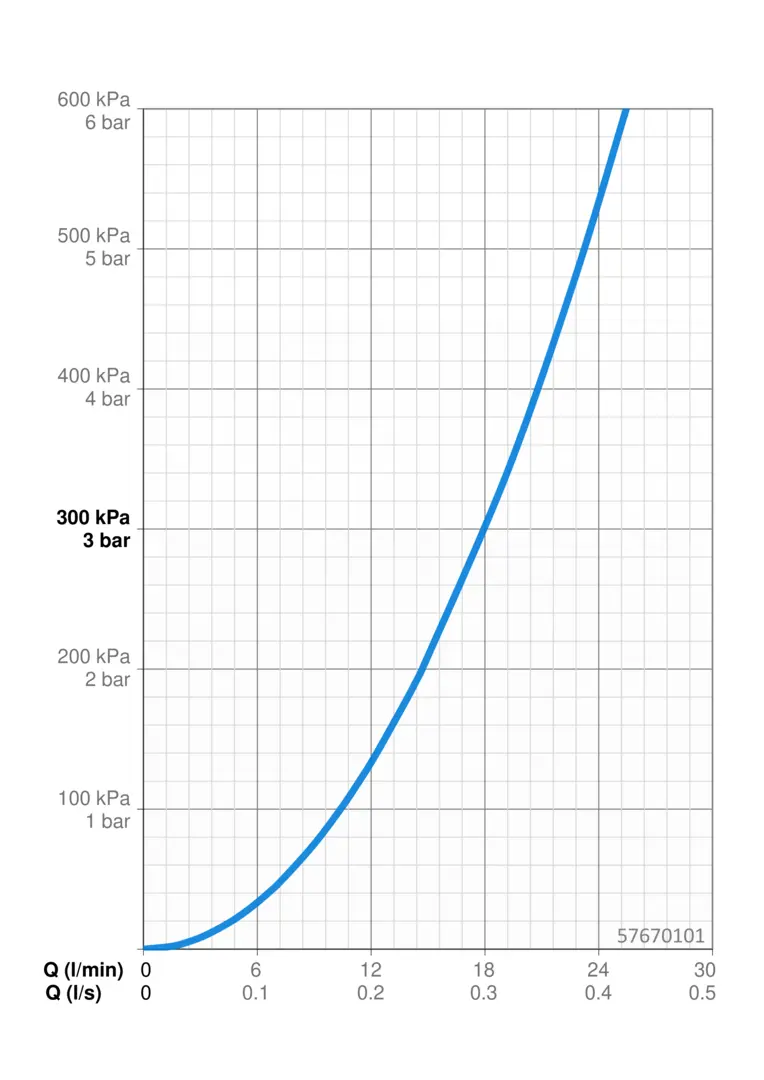

Flow attributes
Flow-rate at 3 bar
18 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/4
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

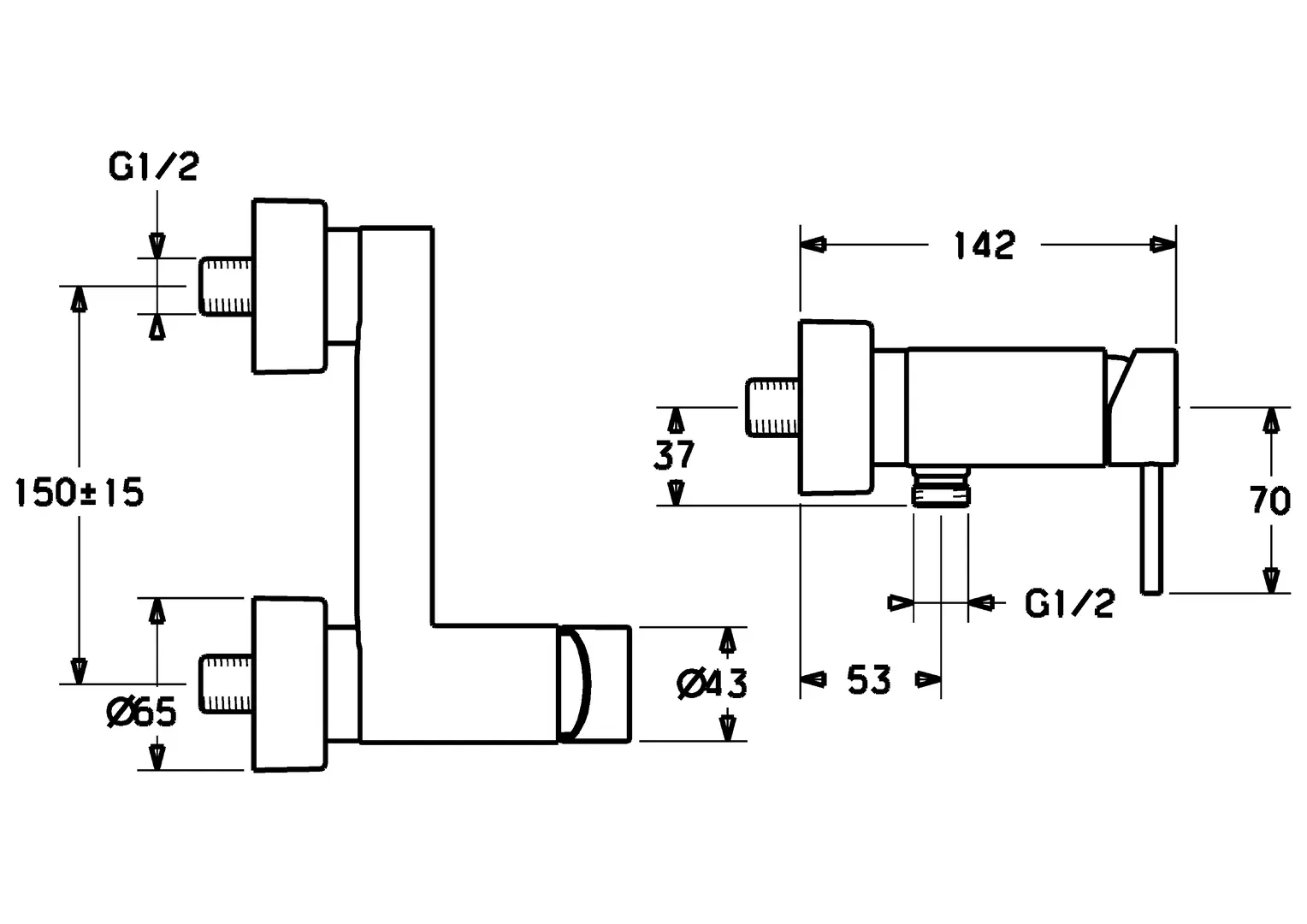

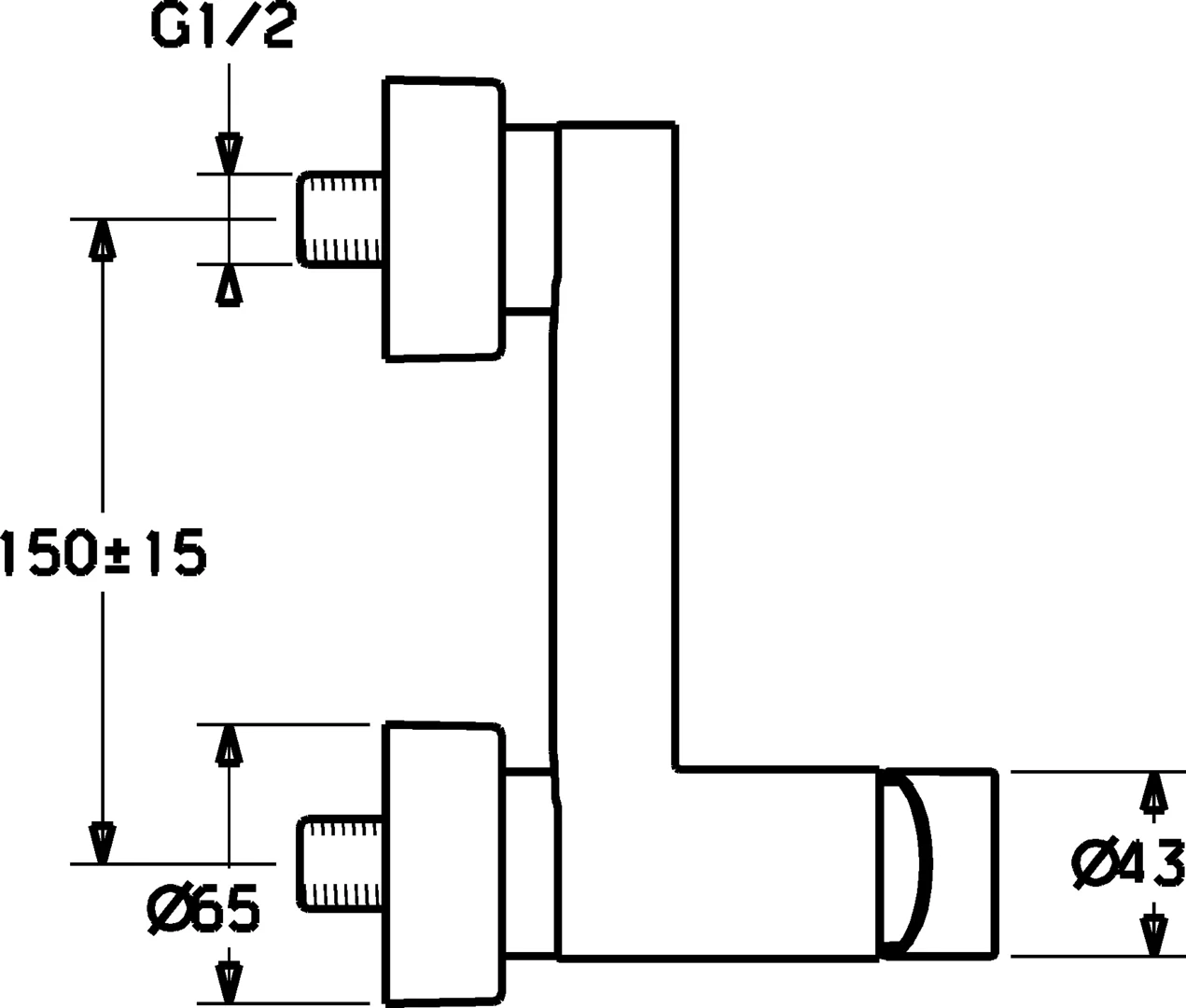

Installation width
150 ± 15 mm
Material
Brass
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
