Features
Aerator
Standard aerator
Connection
Eccentric coupling(s), Cover plate(s), Silencer(s)
Diverter
Turn operated diverter, Integrated into flow control handle
Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Brushed steel
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

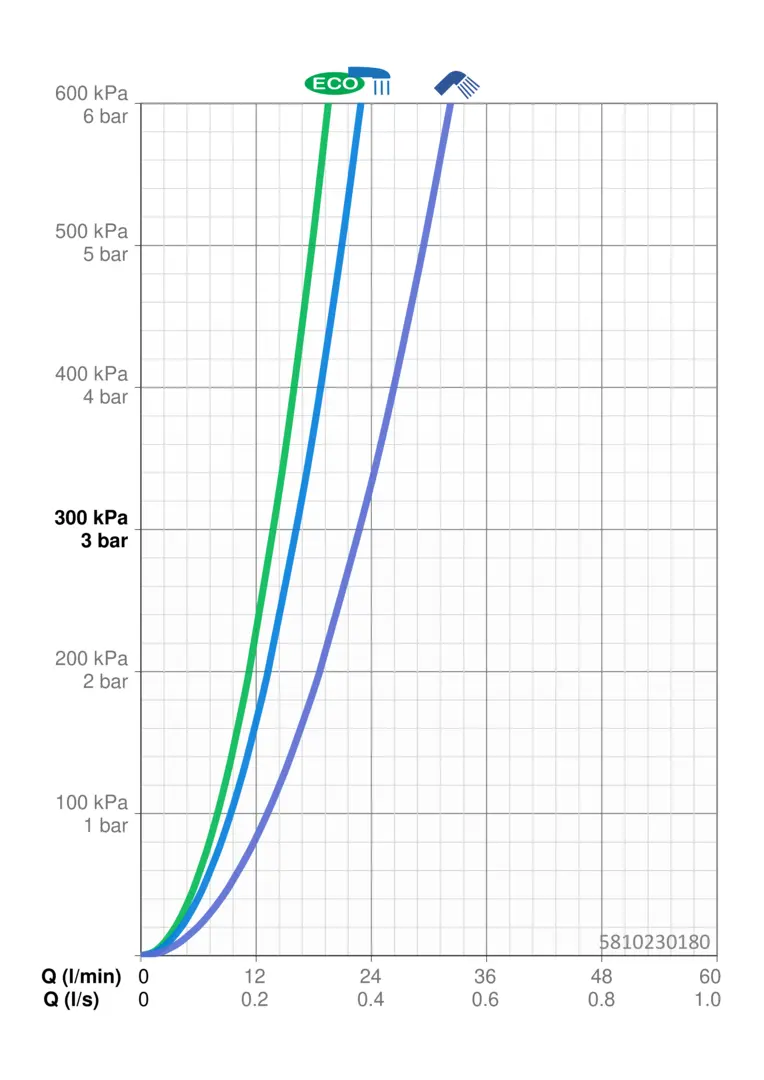

Flow attributes
Eco-flow at 3 bar
13.8 l/min
Flow-rate at 3 bar
16.2/22.8 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
Hot water supply
max. +80°C

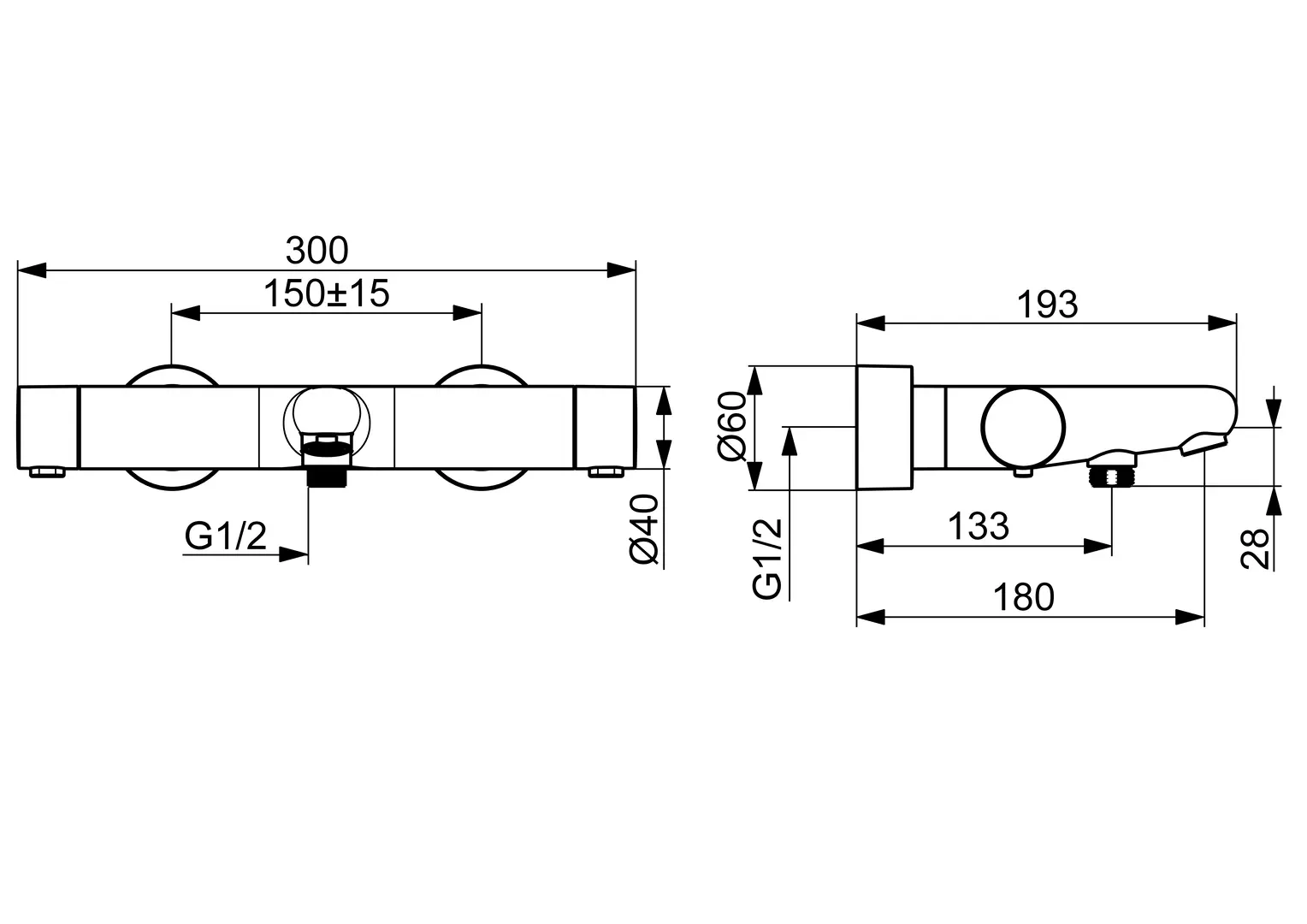

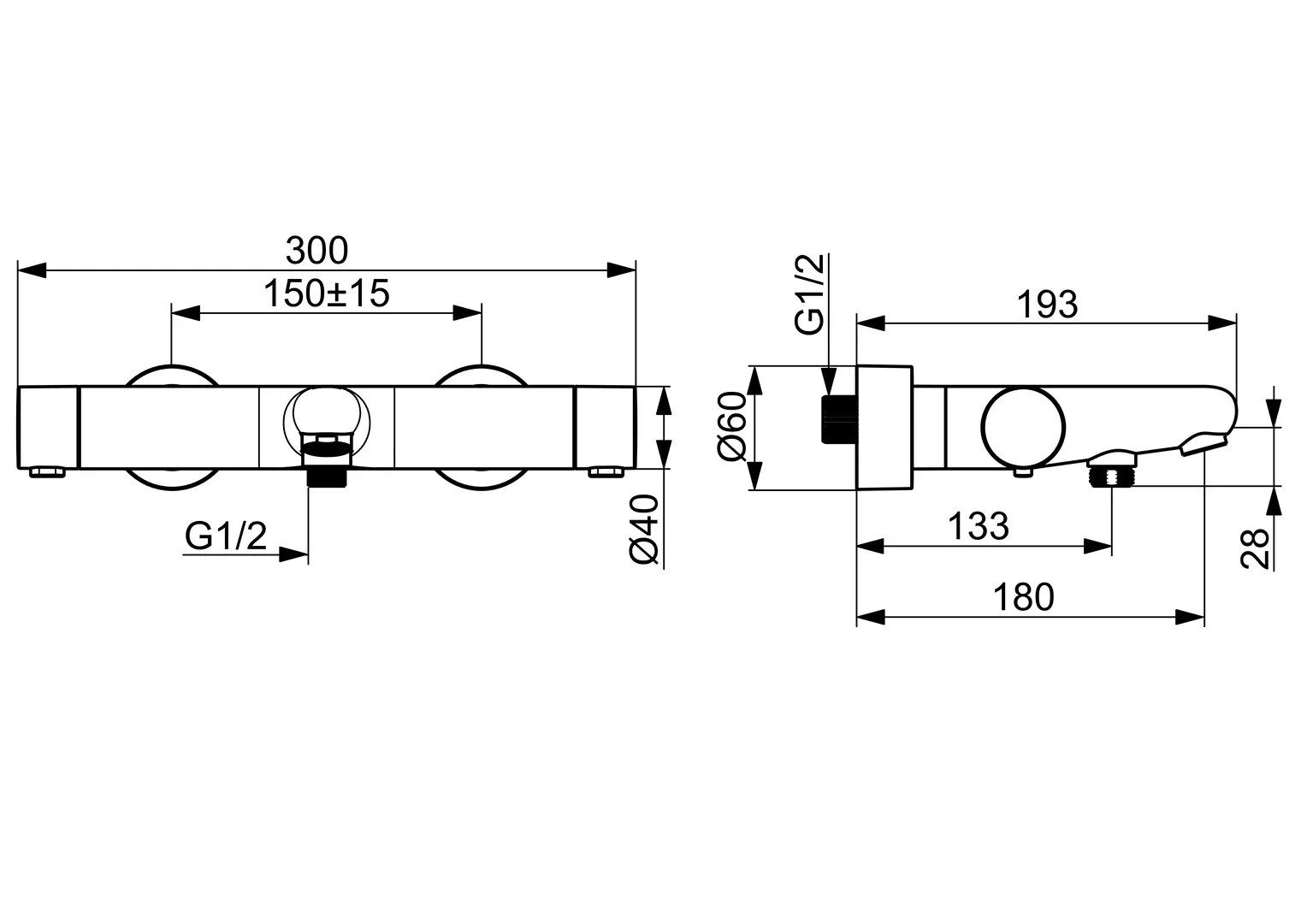

Installation width
150 ± 15 mm
Material
Brass/Plastic
Projection
180 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
10,63
EPD module A1-A3 (kg CO2 eq.)
12,34
EPD module A2 (kg CO2 eq.)
0,50
EPD module A3 (kg CO2 eq.)
1,22
EPD module A4 (kg CO2 eq.)
0,44
EPD module B7 (kg CO2 eq.)
2426,50
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,88
EPD module D (kg CO2 eq.)
-7,83
