Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Flexible inlet pipes
Hand shower
Bidetta hand shower
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 35 mm ceramic cartridge for flow and temperature control
Number of spray functions
1 spray function
Shower parts
Hand shower, Shower holder, Shower hose (1600 mm)
Advanced features
Inner body made of DZR brass, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

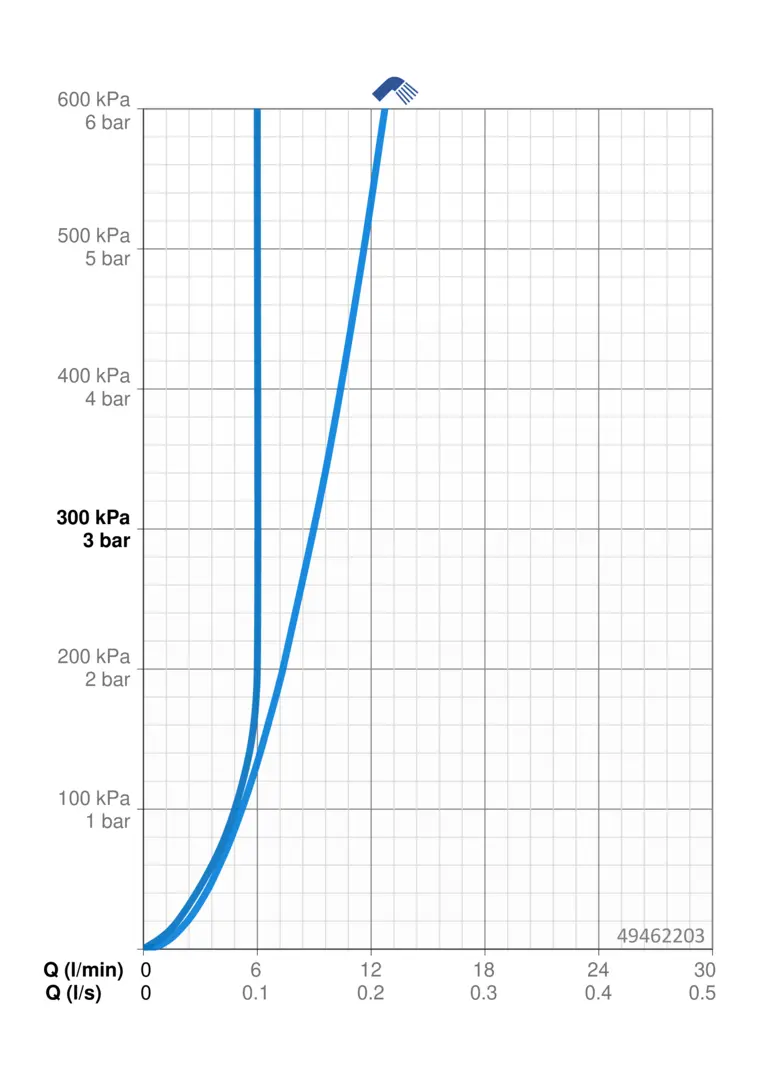

Flow attributes
Flow-rate at 3 bar
9 l/min
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
HC
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
107 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817, EN 1113
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
9,05
EPD module A1-A3 (kg CO2 eq.)
10,34
EPD module A2 (kg CO2 eq.)
0,43
EPD module A3 (kg CO2 eq.)
0,86
EPD module A4 (kg CO2 eq.)
0,29
EPD module B7 (kg CO2 eq.)
1854,00
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,08
EPD module D (kg CO2 eq.)
-7,35
