Features
Connection
Eccentric coupling(s), Silencer(s)
Diverter
Pull operated diverter, Integrated into spout, Automatic reset
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
Non-return valve(s)
Advanced features
Inner body made of DZR brass
Color
Chrome
Flow attributes

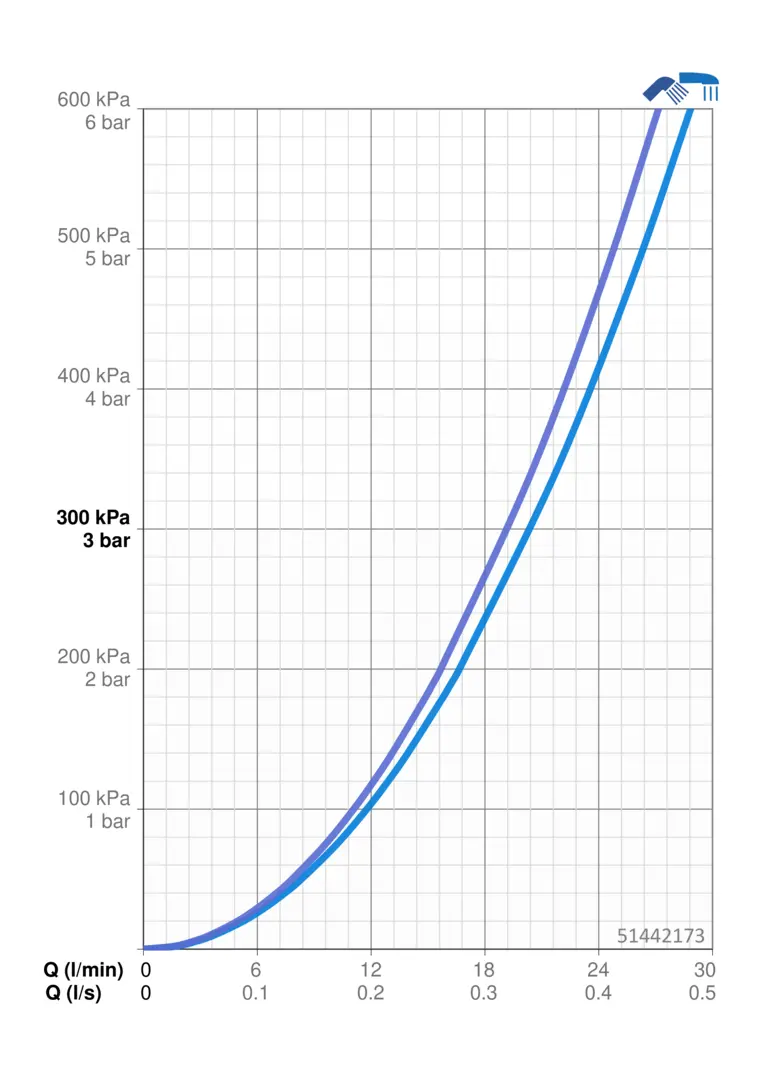

Flow-rate at 3 bar
20.4 / 19.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

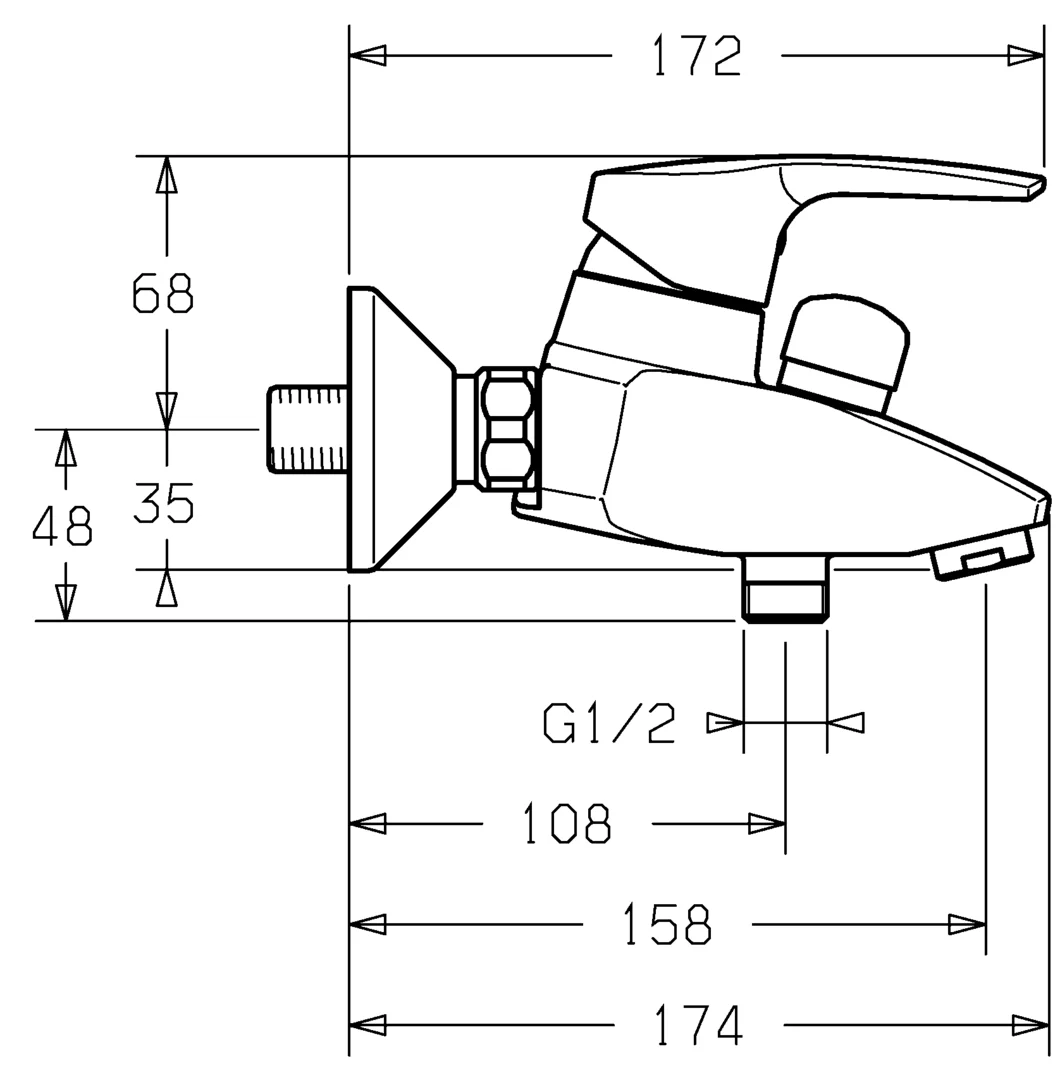

Projection
158 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
