Features
Aerator
Standard aerator
Connection
Flexible inlet pipes
Diverter
Pull operated diverter, Automatic reset
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
Non-return valve(s), Mixing valve for manual temperature control, ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
3S-installation system for safe and simple mounting
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes

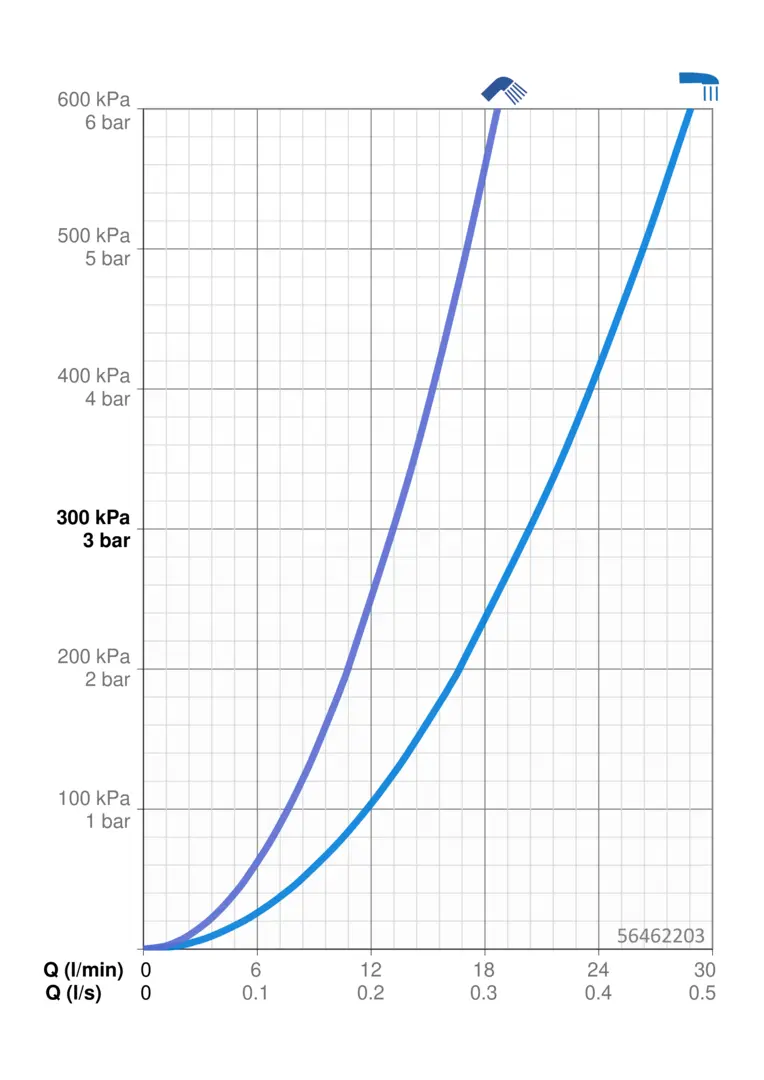

Flow-rate at 3 bar
20.4 / 13.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
164 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
II (ISO 3822)
