Features
Aerator
PCA® - constant flow rate regardless of pressure variations, Adjustable flow angle
Connection
Flexible inlet pipes
Extensions
Pop-up waste with draw-rod
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic eco cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

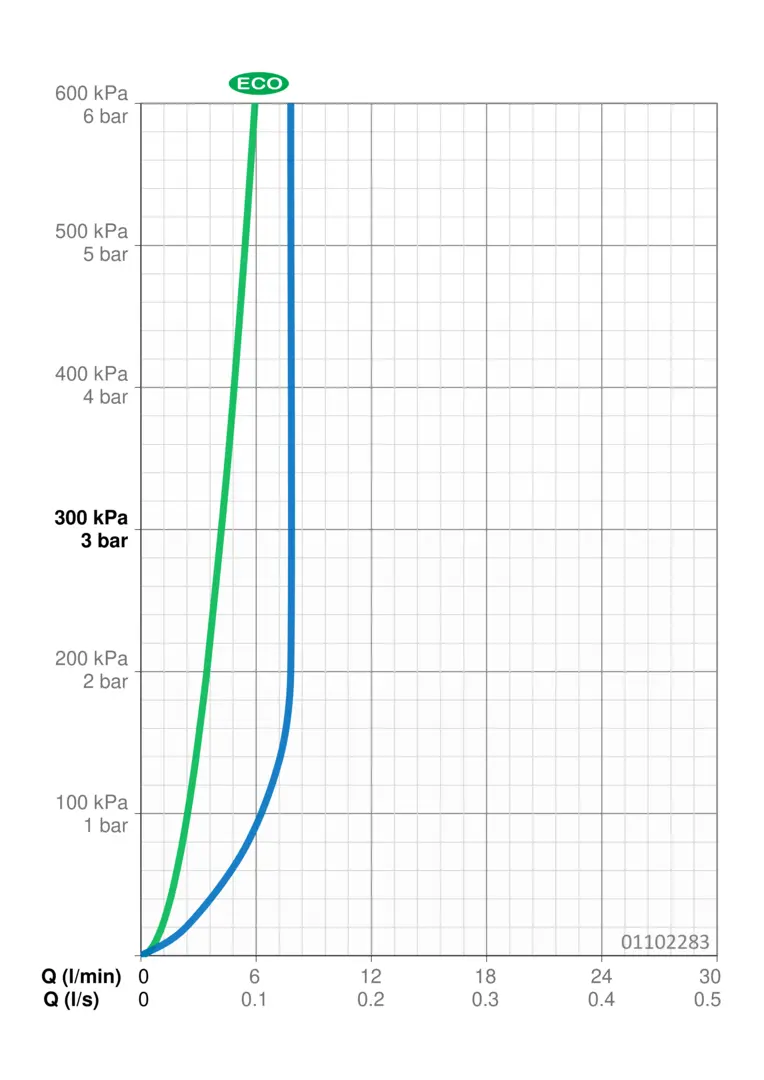

Flow attributes
Eco-flow at 3 bar
4.2 l/min
Flow-rate at 3 bar (with flow controller)
7.8 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
127 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Approvals and Declarations
KIWA
K6116/08
Sustainability
EPD module A1 (kg CO2 eq.)
10,08
EPD module A1-A3 (kg CO2 eq.)
11,53
EPD module A2 (kg CO2 eq.)
0,48
EPD module A3 (kg CO2 eq.)
0,95
EPD module A4 (kg CO2 eq.)
0,32
EPD module B7 (kg CO2 eq.)
1297,80
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,09
EPD module D (kg CO2 eq.)
-8,20
