Features
Connection
Eccentric coupling(s), External thread, Cover plate(s), Silencer(s)
Diverter
Turn operated diverter, Integrated into flow control handle
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
Number of spray functions
3 spray functions
Shower parts
Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Shower hose (1750 mm), Eco flow control, Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean)
Shower spray
Normal - Even and soft water stream, Refreshing - Strong water stream, activates and refreshes body, Relaxing - Soft water stream, pleasant for entire body
Advanced features
Flexible length / can be shortened
Color
Chrome
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

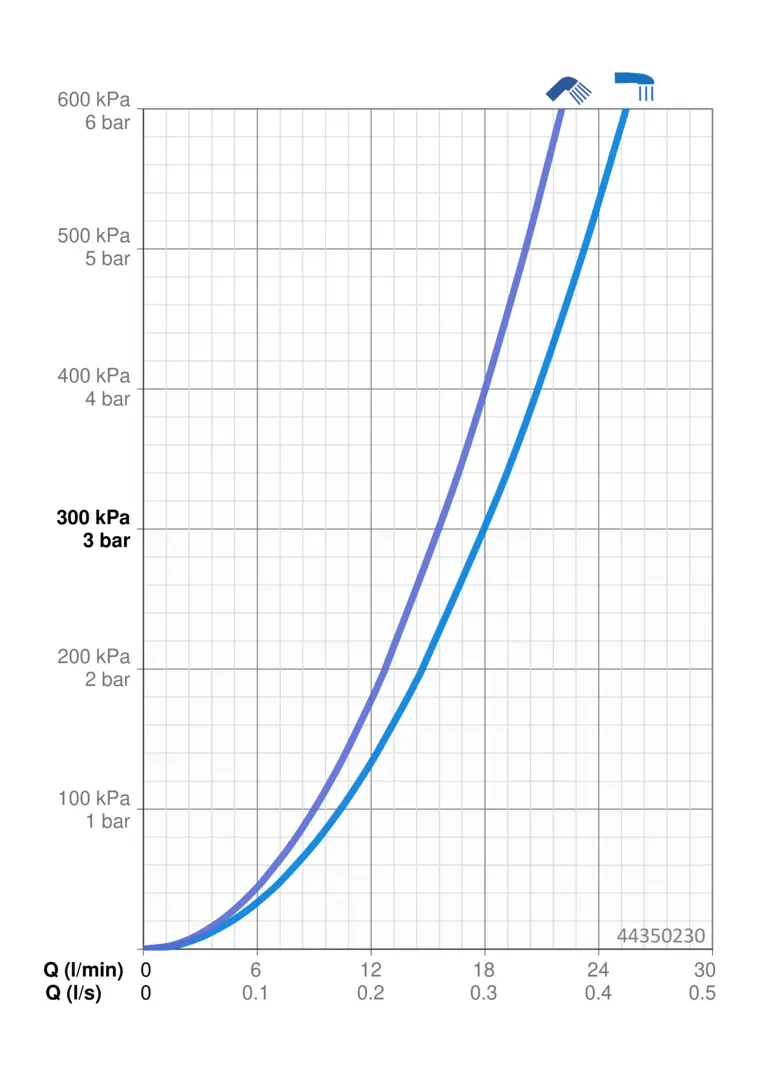

Flow attributes
Flow-rate at 3 bar
18 / 15.6 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +65°C

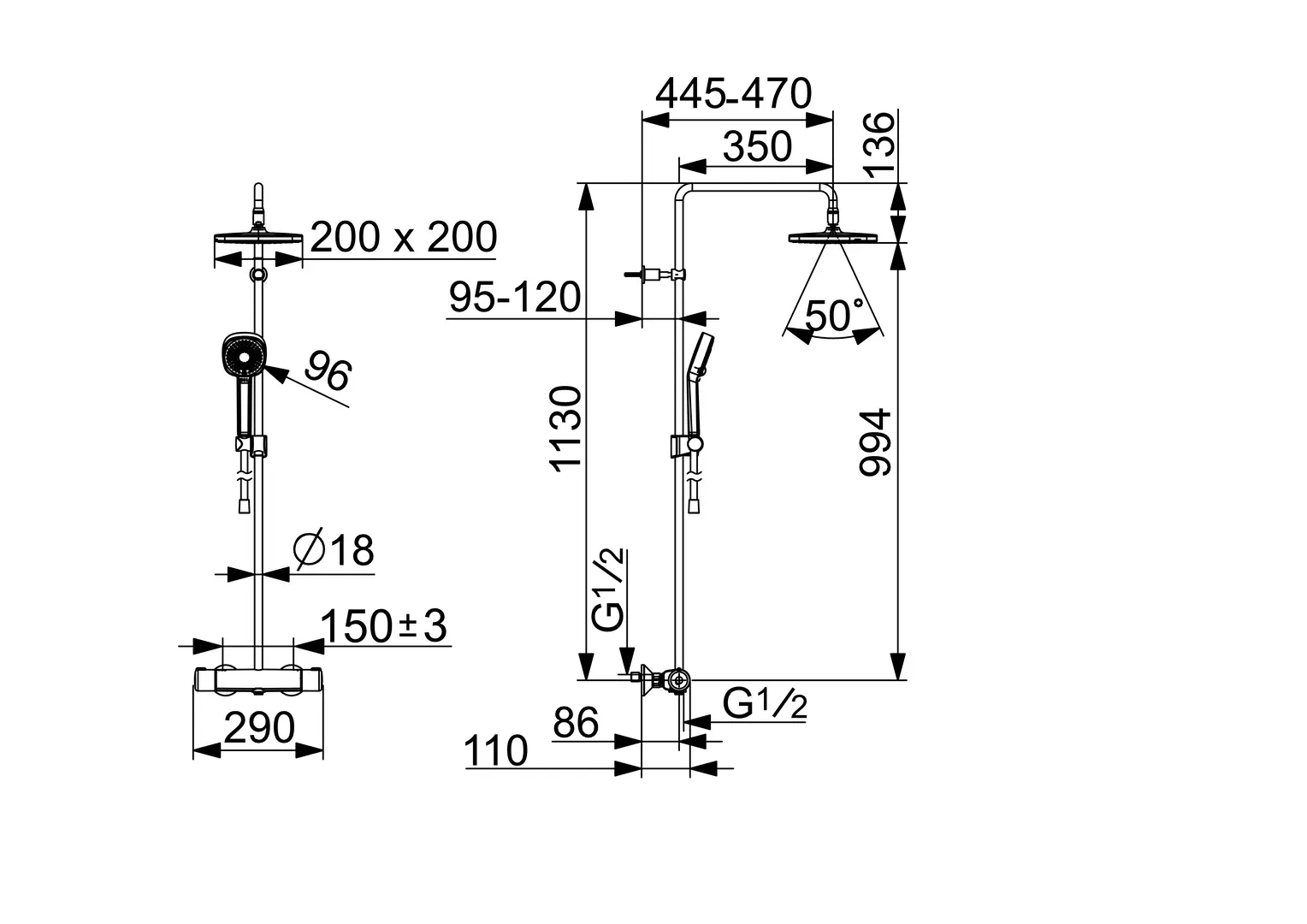

Installation width
150 ± 3 mm
Material
Brass
Projection
445 - 470 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1112, EN 1113, EN 1111
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
20,14
EPD module A1-A3 (kg CO2 eq.)
23,32
EPD module A2 (kg CO2 eq.)
1,04
EPD module A3 (kg CO2 eq.)
2,13
EPD module A4 (kg CO2 eq.)
0,61
EPD module B7 (kg CO2 eq.)
3010,80
EPD module C2 (kg CO2 eq.)
0,04
EPD module C3 (kg CO2 eq.)
0,04
EPD module C4 (kg CO2 eq.)
1,28
EPD module D (kg CO2 eq.)
-15,24
