Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Eccentric coupling(s)
Diverter
Turn operated diverter, Integrated into flow control handle
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
Mechanical parts
Thermostatic cartridge for automatic temperature control, Litter filter(s), Ceramic head part for flow control
Shower parts
Eco flow control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Matt black
Temperature
The housing of the fittings conducts minimal heat, Safety stop against scalding at 38°C

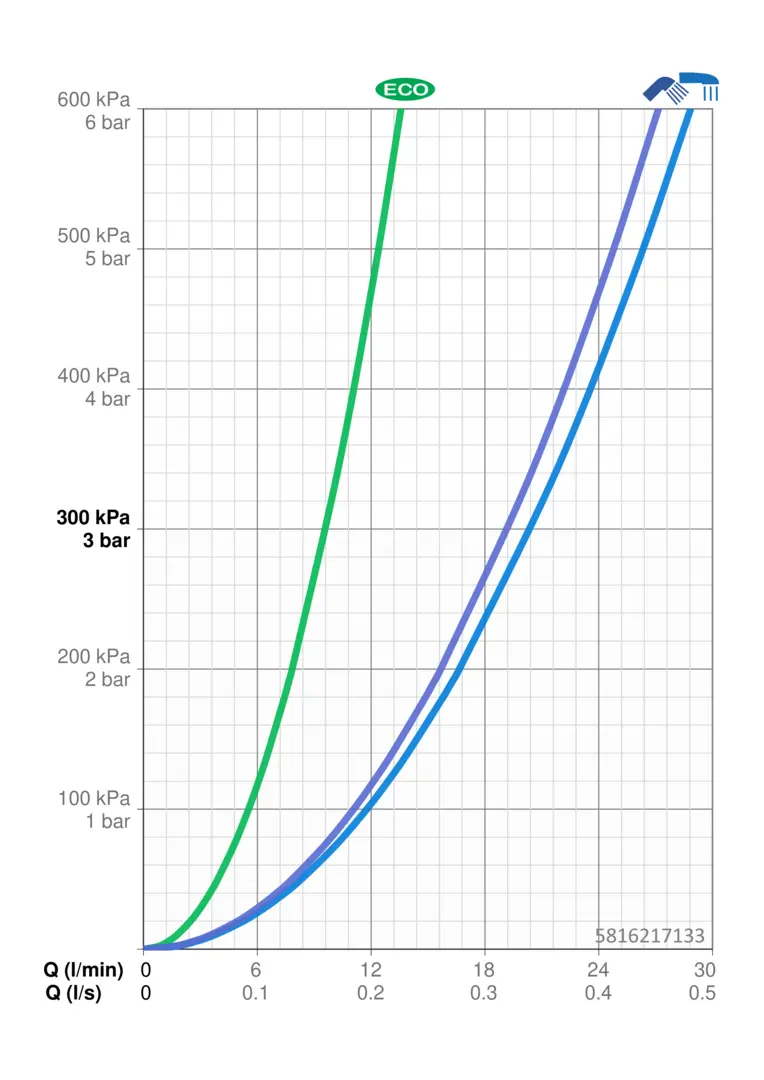

Flow attributes
Eco-flow at 3 bar
9.6 l/min
Flow-rate at 3 bar
20.4 / 19.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

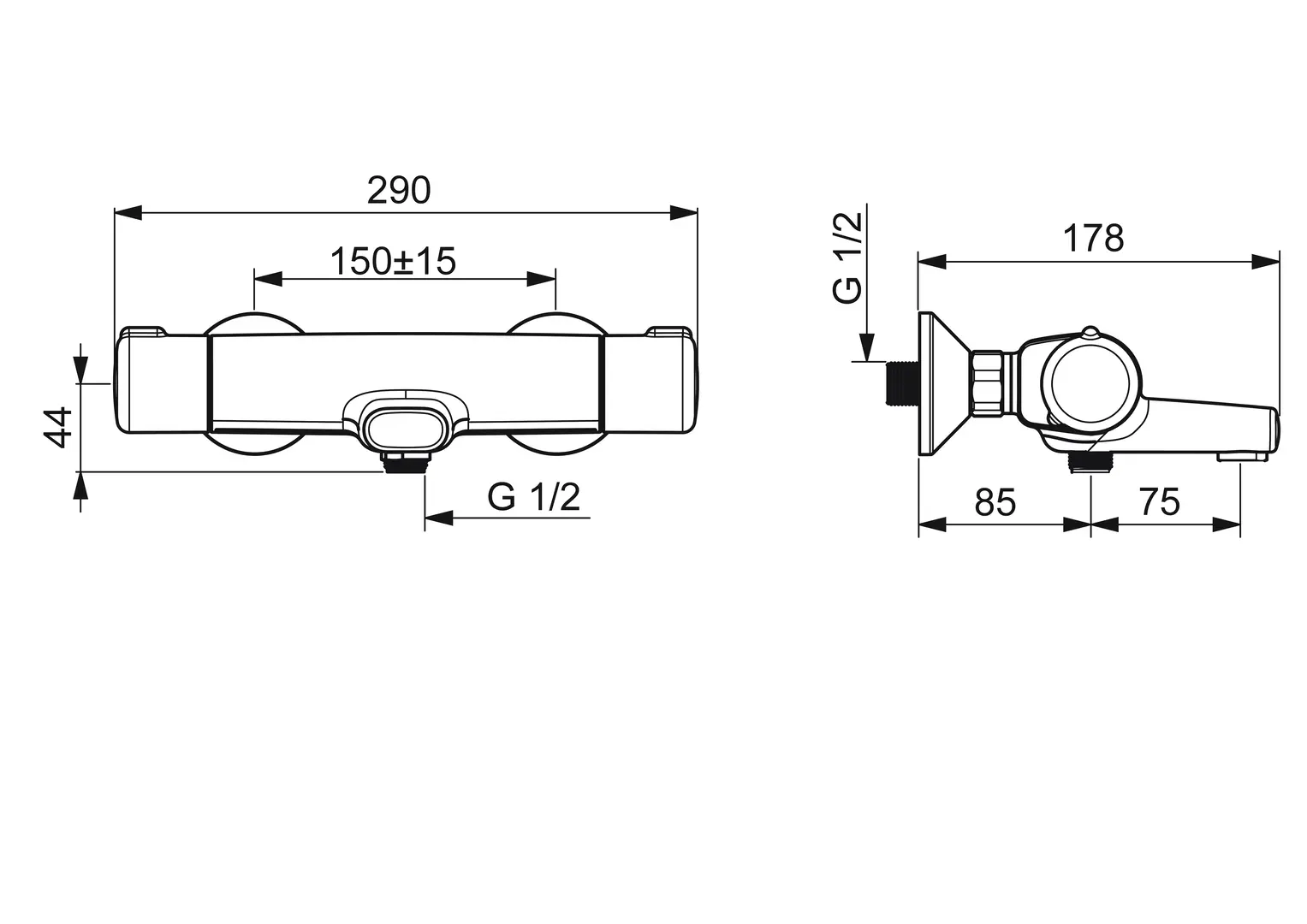

Installation width
150 ± 15 mm
Material
Brass/Plastic
Projection
159 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
II (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
8,82
EPD module A1-A3 (kg CO2 eq.)
10,24
EPD module A2 (kg CO2 eq.)
0,41
EPD module A3 (kg CO2 eq.)
1,02
EPD module A4 (kg CO2 eq.)
0,37
EPD module B7 (kg CO2 eq.)
1688,00
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,73
EPD module D (kg CO2 eq.)
-6,50
