Features
Aerator
Laminar stream
Connection
Flexible inlet pipes, One inlet for cold or premixed water, Special coating for hygienic premises
Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
Mechanical parts
Litter filter(s), Non-return valve(s)
Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating, Thermal disinfection proof for short durations, Software settings adjustable via App
Spout
Fixed spout, Casted construction
Color
Chrome
Software settings
Afterflow period
3 s (1-20 s)
Automatic flush
off (off/1-120 h)
Automatic flush period
30 s (1-1800 s)
Max. flow period
2 min (1 - 1800 s)
Flow attributes

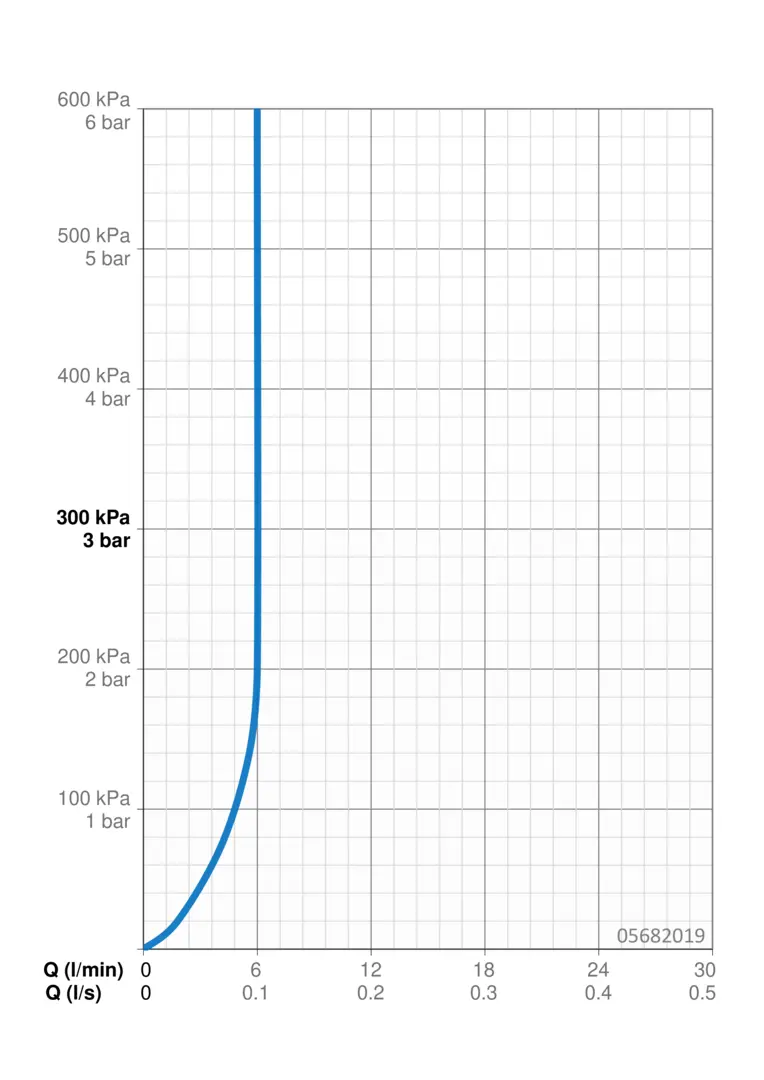

Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

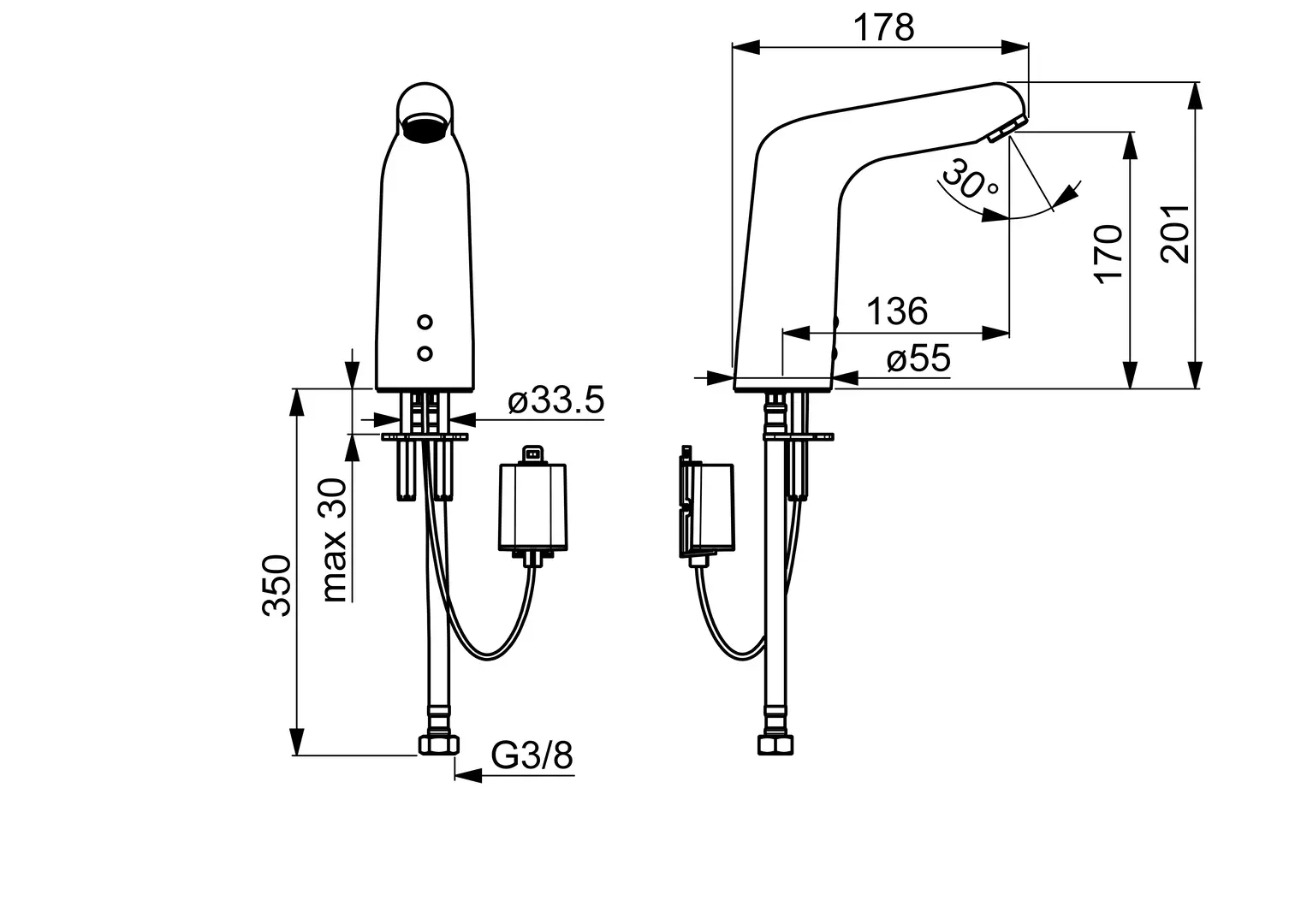

Projection
136 mm
Working pressure
1 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Bluetooth version
4.x (D034445)
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Maxell 2CR5
