Features
Aerator
Laminar stream
Connection
Copper inlet pipes
Lever/Handle
Long shape, Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic cartridge for flow and temperature control
Advanced features
Waterways without nickel coating, Surfaces in contact with drinking water contain less than 0.3% lead, Inner body made of DZR brass, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes

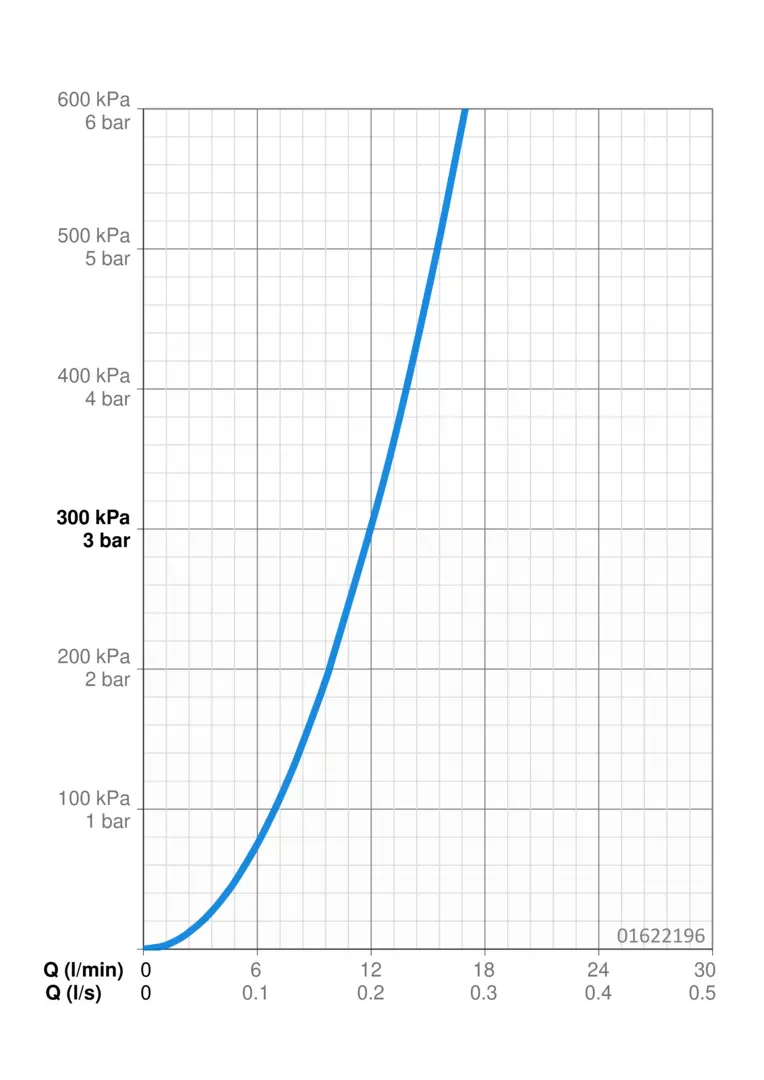

Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
Ø 10 mm
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass

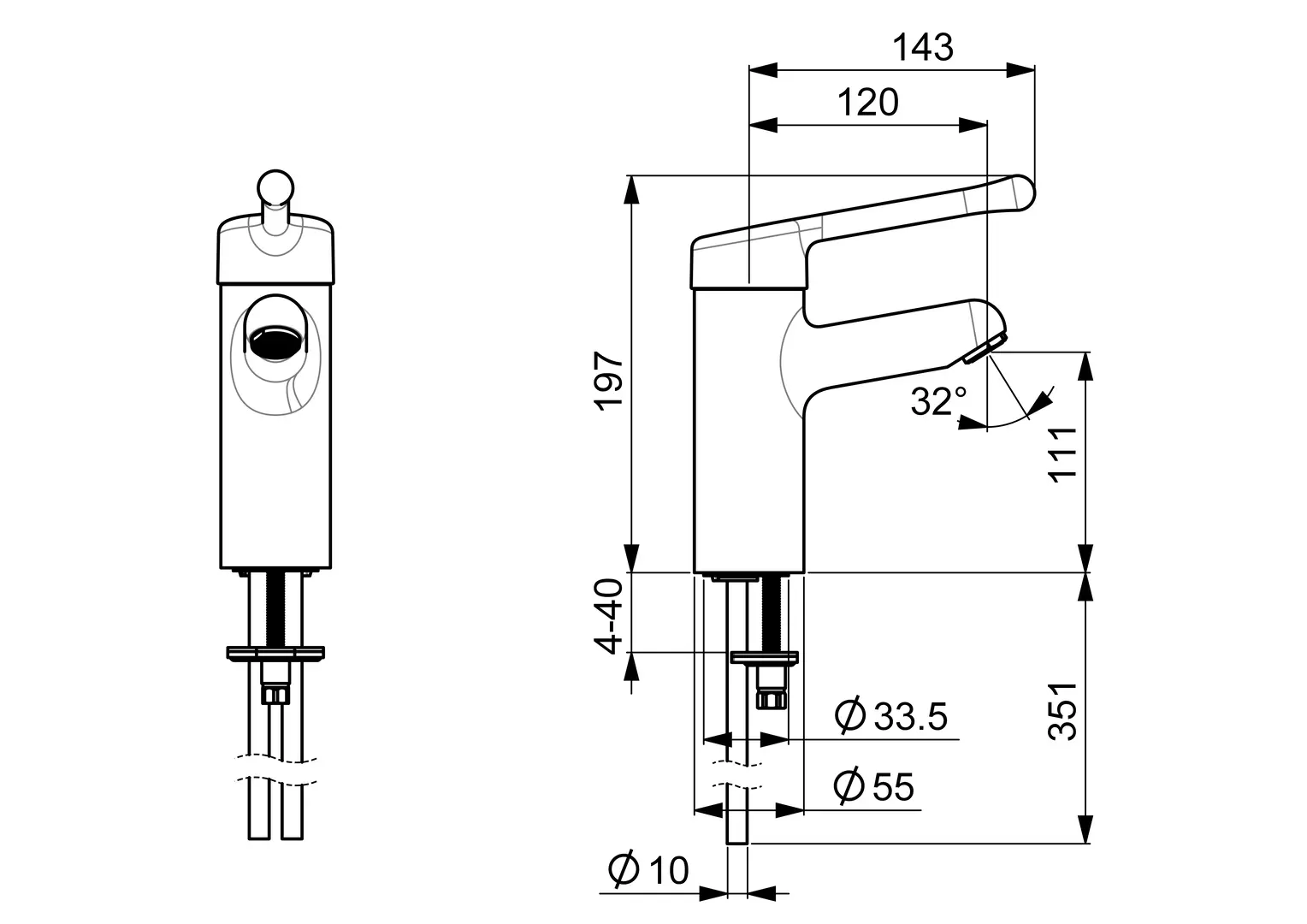

Projection
120 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
9,64
EPD module A1-A3 (kg CO2 eq.)
11,01
EPD module A2 (kg CO2 eq.)
0,46
EPD module A3 (kg CO2 eq.)
0,91
EPD module A4 (kg CO2 eq.)
0,31
EPD module B7 (kg CO2 eq.)
3708,00
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,09
EPD module D (kg CO2 eq.)
-7,83
