Features
Aerator
Laminar stream
Connection
Copper inlet pipes
Extensions
Pop-up waste with draw-rod
Lever/Handle
Long shape, Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic cartridge for flow and temperature control
Advanced features
Waterways without nickel coating, Surfaces in contact with drinking water contain less than 0.3% lead, Inner body made of DZR brass, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

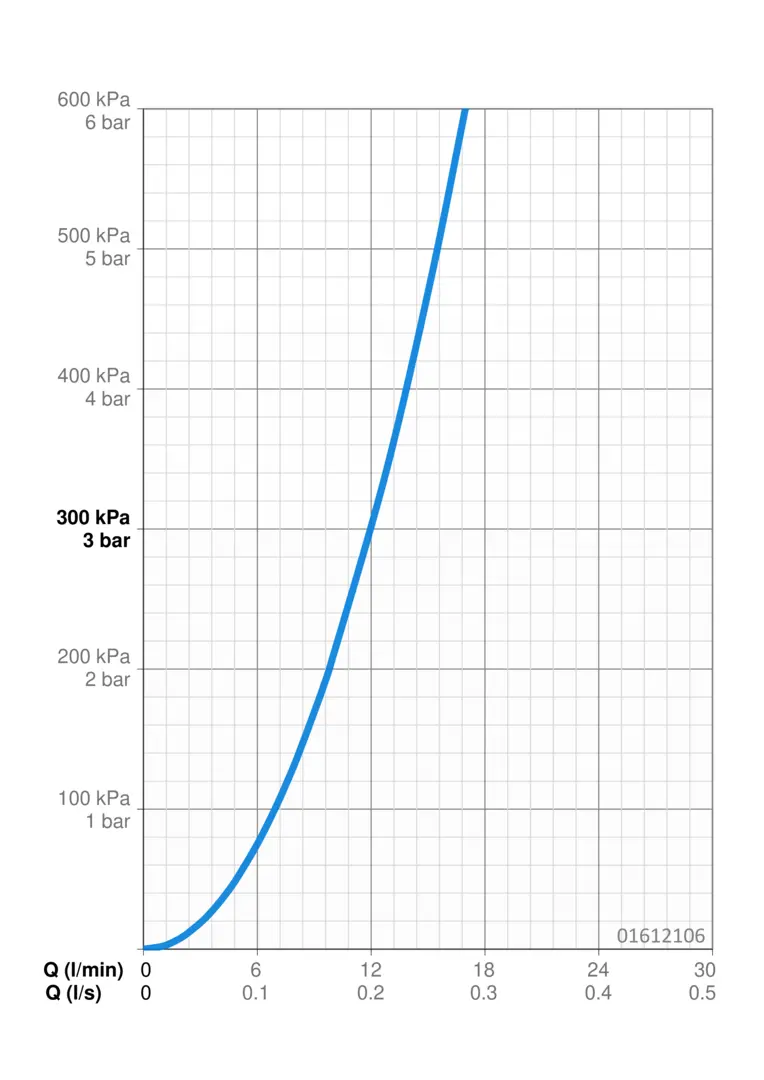

Flow attributes
Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
Ø 10 mm
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass

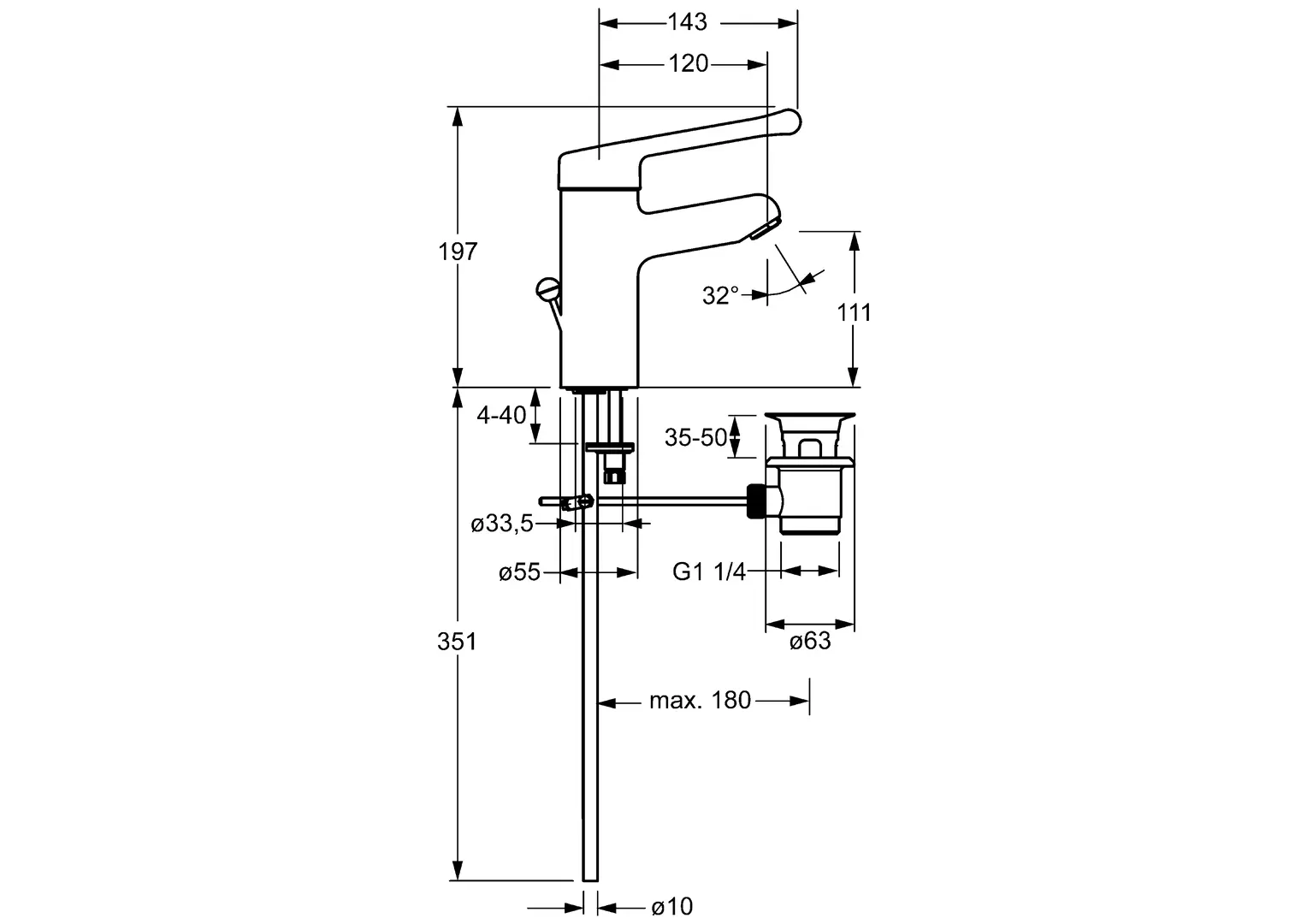

Projection
120 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
