Features
Concealed parts
Square rosette
Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control, Non-return valve(s), Litter filter(s)
Number of spray functions
1 spray function
Shower parts
Hand shower, Shower hose (1750 mm)
Shower spray
Intense - invigorating water stream
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate

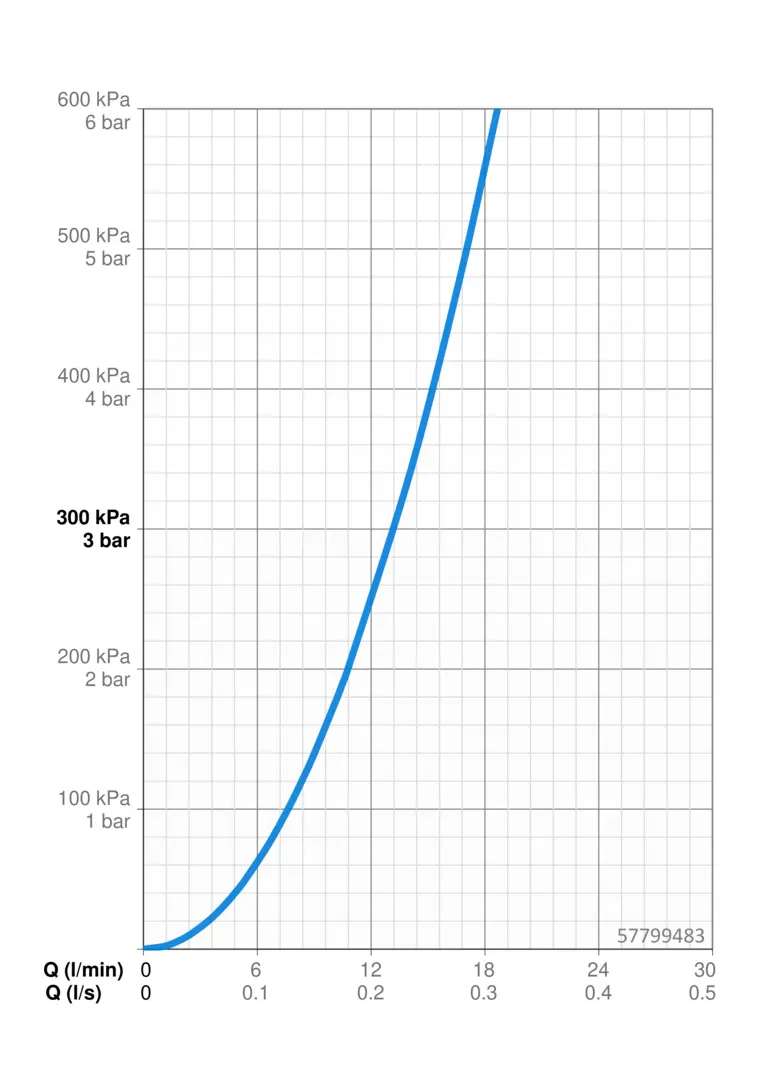

Flow attributes
Flow-rate at 3 bar
13.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
Hot water supply
max. +80°C
Material
Brass
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817, EN 1112, EN 1113
Sustainability
EPD module A1 (kg CO2 eq.)
14,33
EPD module A1-A3 (kg CO2 eq.)
23,63
EPD module A2 (kg CO2 eq.)
0,45
EPD module A3 (kg CO2 eq.)
8,94
EPD module A4 (kg CO2 eq.)
0,39
EPD module B7 (kg CO2 eq.)
2547,60
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,31
EPD module D (kg CO2 eq.)
-7,31
