Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Hidden aerator, Standard aerator
Connection
Eccentric coupling(s), Cover plate(s), Silencer(s)
Diverter
Pull operated diverter, Automatic reset
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
Non-return valve(s), ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable), Limitation option for maximum temperature and flow-rate

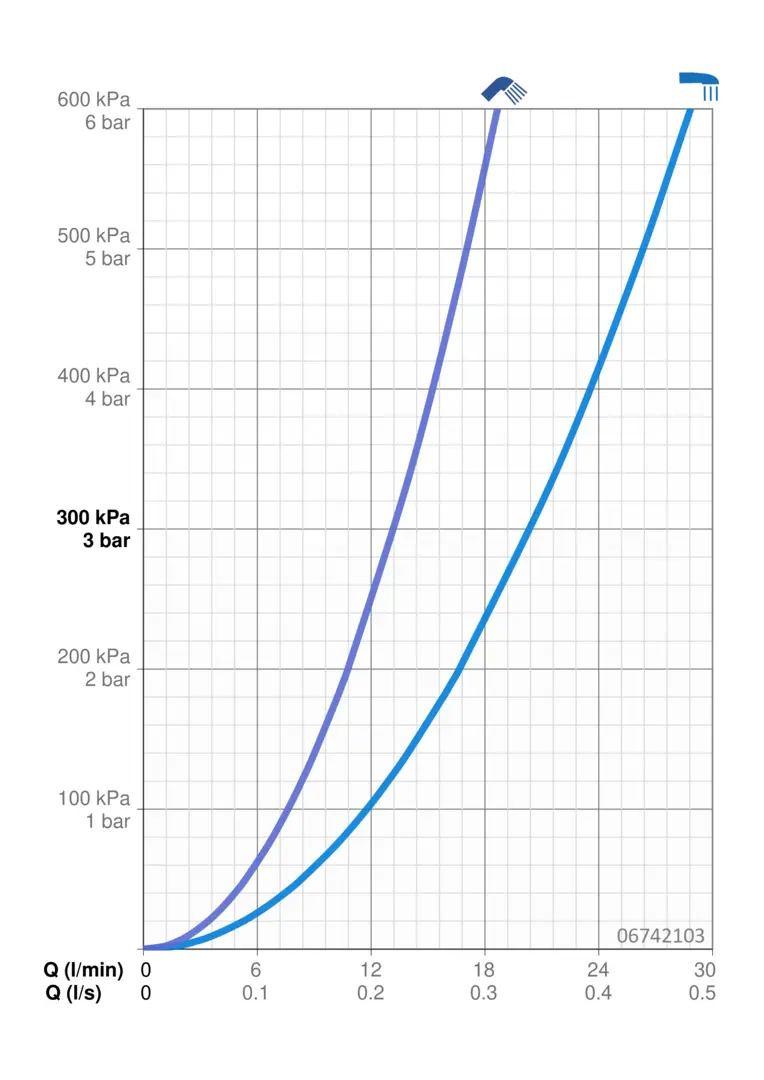

Flow attributes
Flow-rate at 3 bar
20.4 / 13.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Installation width
150 ± 15 mm
Material
Brass
Projection
152 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
