Features
Diverter
Turn operated diverter
Concealed parts
BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º, Function unit, Fastening of the function unit with screws, Rosette plate frame, Round rosette, Sleeve
Lever/Handle
Temperature control handle, Flow control handle
Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s)
Advanced features
Inner body made of DZR brass, Manual, ceramic, pressure independent diverter with volume control and stop function for two outlets
Color
Chrome
Temperature
Safety stop against scalding at 38°C
Flow attributes
Flow-rate at 3 bar
20.4 / 20.4 l/min
Technical properties
Backflow prevention (EN1717)
EB

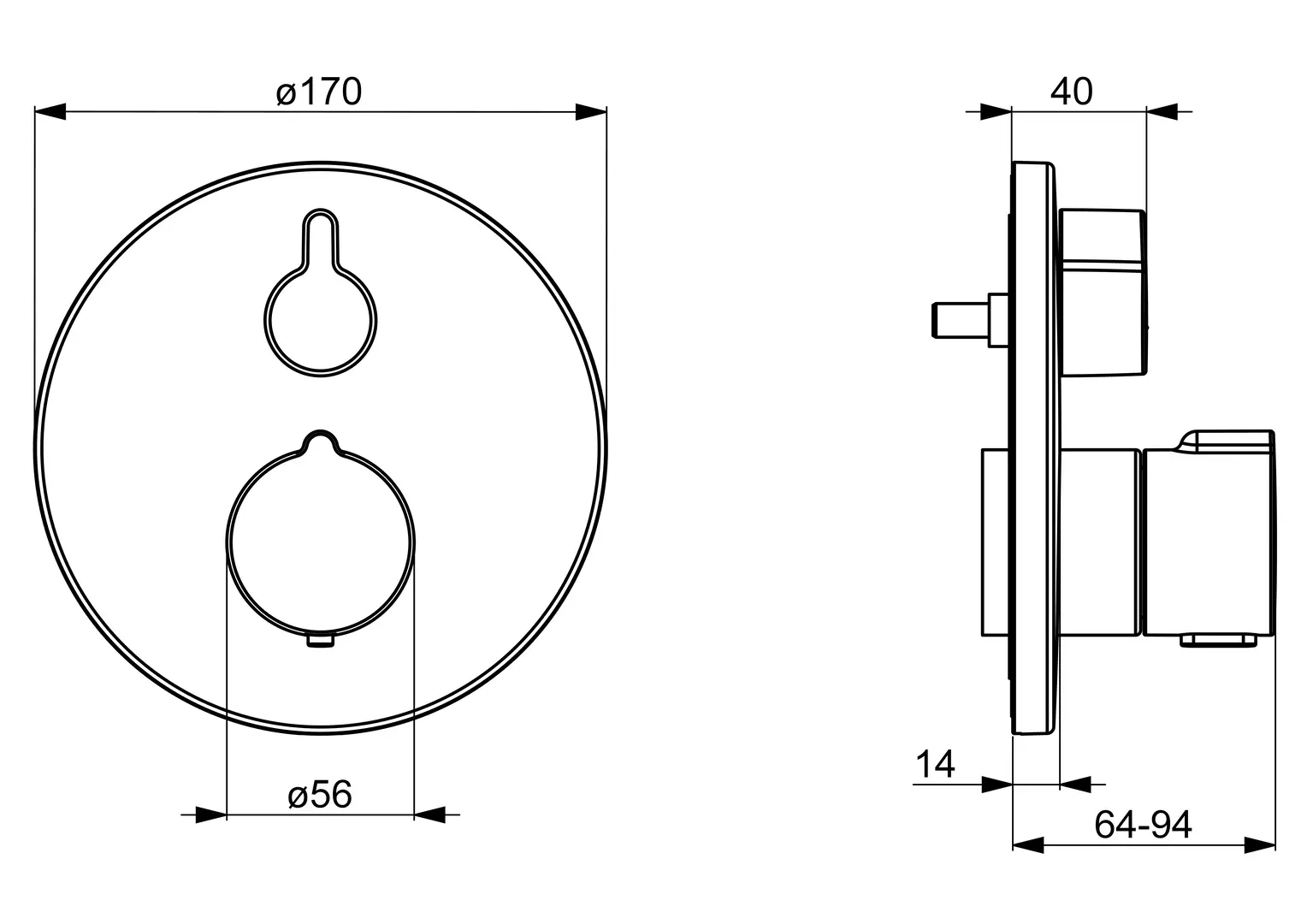

Diameter
170 mm
Hot water supply
max. +80°C
Material
Brass
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
15,54
EPD module A1-A3 (kg CO2 eq.)
25,63
EPD module A2 (kg CO2 eq.)
0,49
EPD module A3 (kg CO2 eq.)
9,70
EPD module A4 (kg CO2 eq.)
0,42
EPD module B7 (kg CO2 eq.)
3937,20
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,03
EPD module C4 (kg CO2 eq.)
0,34
EPD module D (kg CO2 eq.)
-7,93
