Features
Additional features
grease without Silicon
Aerator
Standard aerator, Protection against burglary
Connection
Flexible inlet pipes
Electronic parts
Autofocus infrared sensor, Solenoid valve, Power supply
Lever/Handle
Temperature control handle
Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
Advanced features
Software settings adjustable via App, Convertible for cold or premixed-water supply
Spout
Fixed spout, Casted construction
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable)
Software settings
Afterflow period
3 s (1-20 s)
Automatic flush
24 h (off/1-120 h)
Automatic flush period
30 s (1-1800 s)
Max. flow period
2 min (1 - 1800 s)
Flow attributes

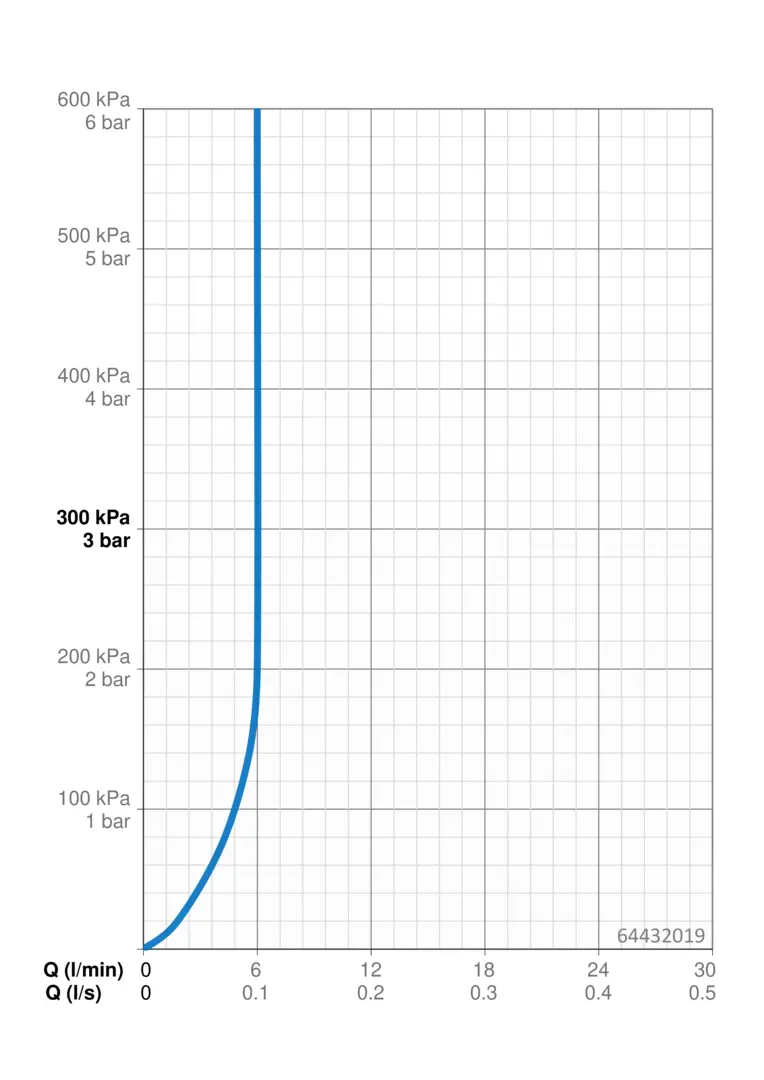

Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
112 mm
Working pressure
1 - 10 bar
Electronics
Bluetooth version
4.x (D034445)
Electrical Connection
230 / 12 V
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSIEN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Protection class
IP 55
