Features
Aerator
Standard aerator
Connection
Eccentric coupling(s), with integrated shut-off valve(s)
Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
Lever/Handle
Temperature control handle
Mechanical parts
Litter filter(s), Non-return valve(s), Pressostatic cartridge for automatic temperature control
Advanced features
Software settings adjustable via magnetic key
Spout
Swivel spout, Profile construction
Color
Chrome
Software settings
Afterflow period
2 s ± 1 s
Automatic flush
off (off/24/48/72 h)
Automatic flush period
30 s
Max. flow period
2 min
Opening range
0-5 cm
Flow attributes

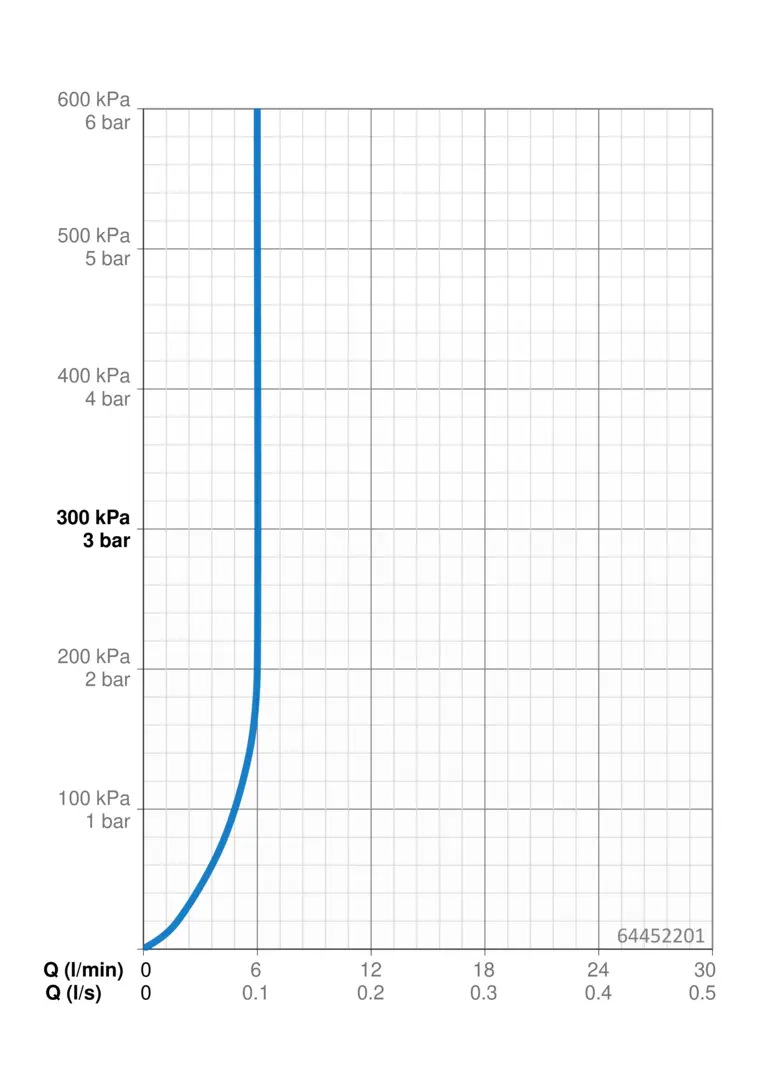

Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C

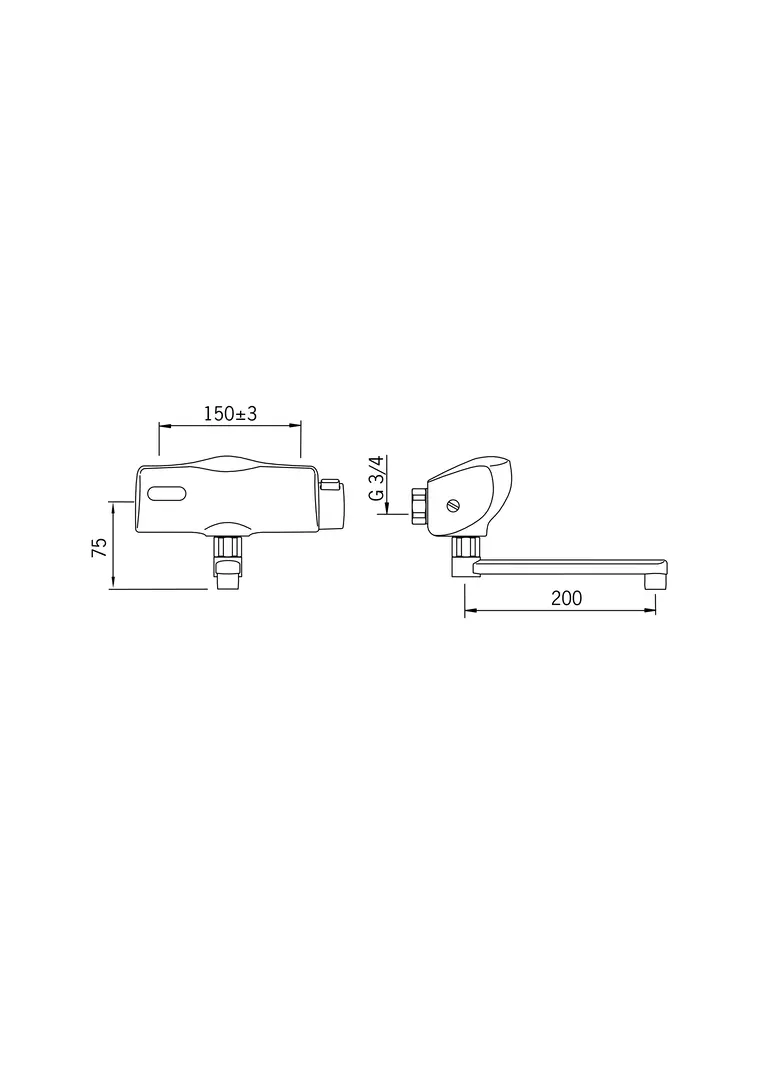

Installation width
150 ± 15 mm
Material
Brass
Projection
250 mm
Working pressure
1 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Maxell 2CR5
