Features
Electronic parts
Autofocus infrared sensor, Solenoid valve
Concealed parts
Square rosette
Advanced features
Software settings adjustable via App
Color
Chrome
Software settings
Afterflush period
6 s (1-20 s)
Automatic flush
24 h (off/1-120 h)
Automatic flush period
6 s (1-120 s)
Pre-flush period
2 s (OFF / 1-10 s)
Flow attributes

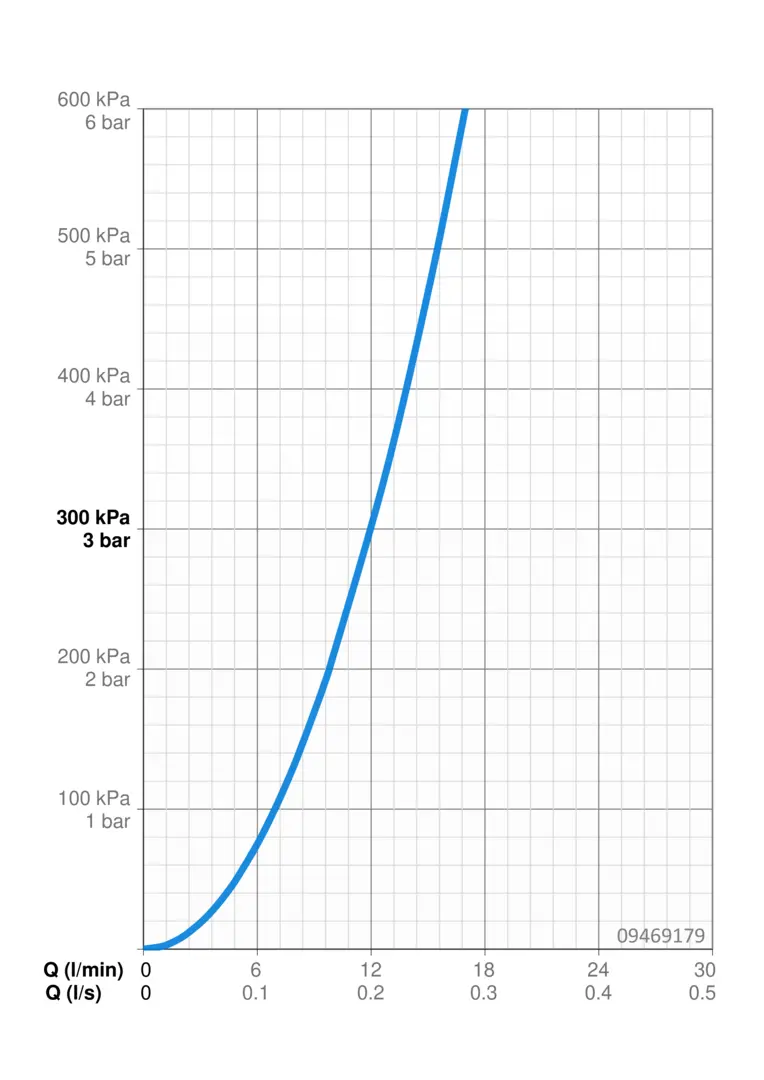

Flow-rate at 3 bar
12 l/min
Technical properties
Hot water supply
max. +70°C
Working pressure
0.5 - 10 bar
Electronics
Bluetooth version
4.x (D034445)
Electrical Connection
12 V
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Protection class
IP 55
Sustainability
EPD module A1 (kg CO2 eq.)
7,63
EPD module A1-A3 (kg CO2 eq.)
12,58
EPD module A2 (kg CO2 eq.)
0,24
EPD module A3 (kg CO2 eq.)
4,76
EPD module A4 (kg CO2 eq.)
0,21
EPD module B7 (kg CO2 eq.)
2316,00
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,01
EPD module C4 (kg CO2 eq.)
0,16
EPD module D (kg CO2 eq.)
-3,89
