Features
Aerator
PCA® - constant flow rate regardless of pressure variations, Hidden aerator
Connection
Flexible inlet pipes
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

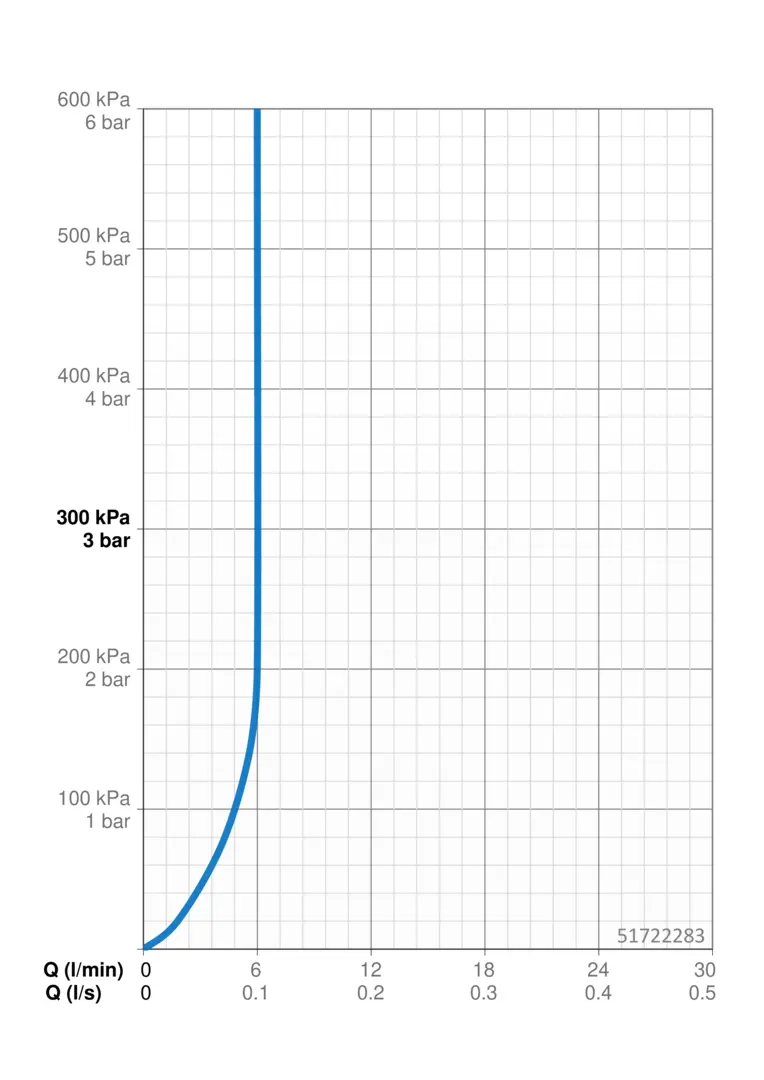

Flow attributes
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
119 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
