Features
Additional features

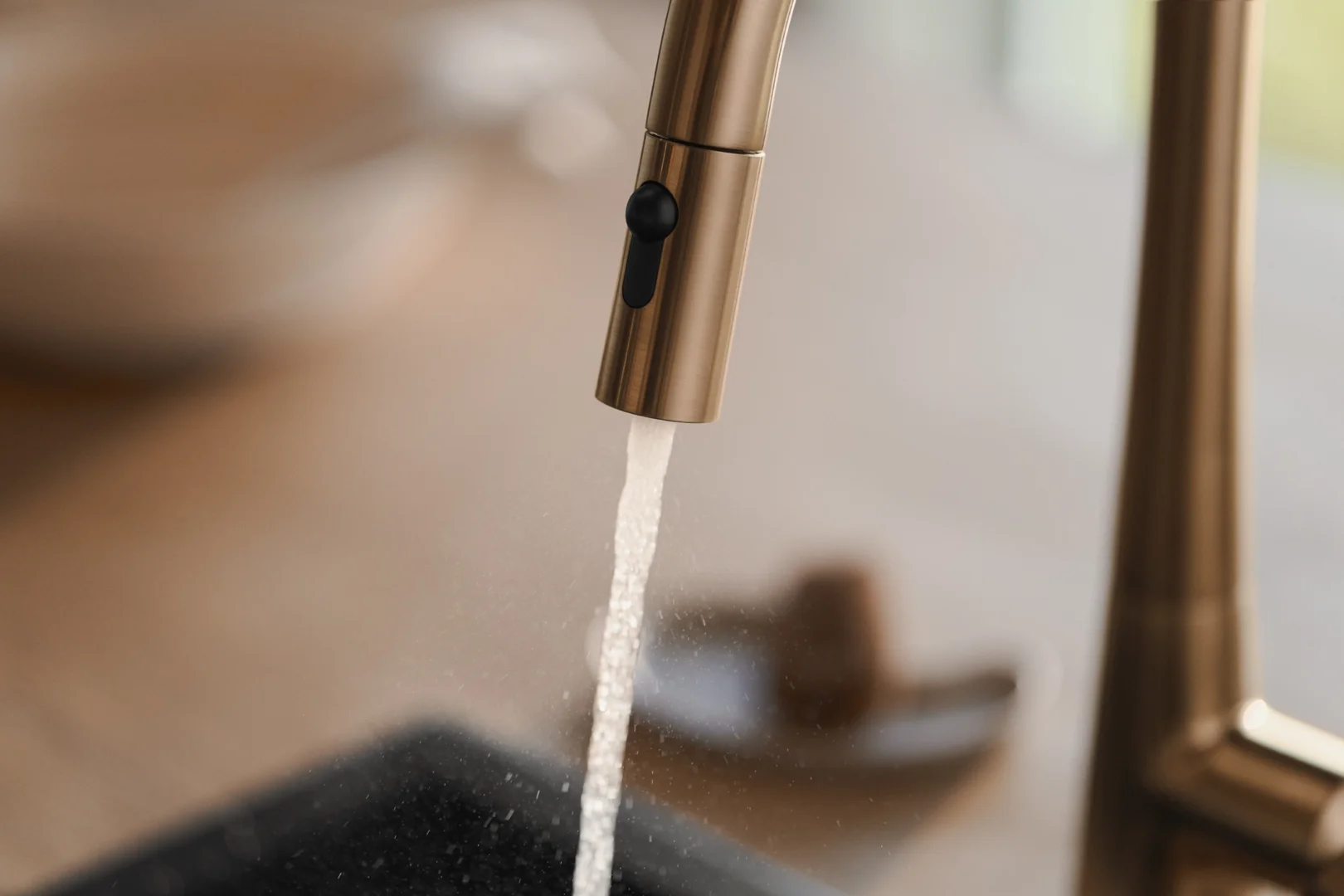

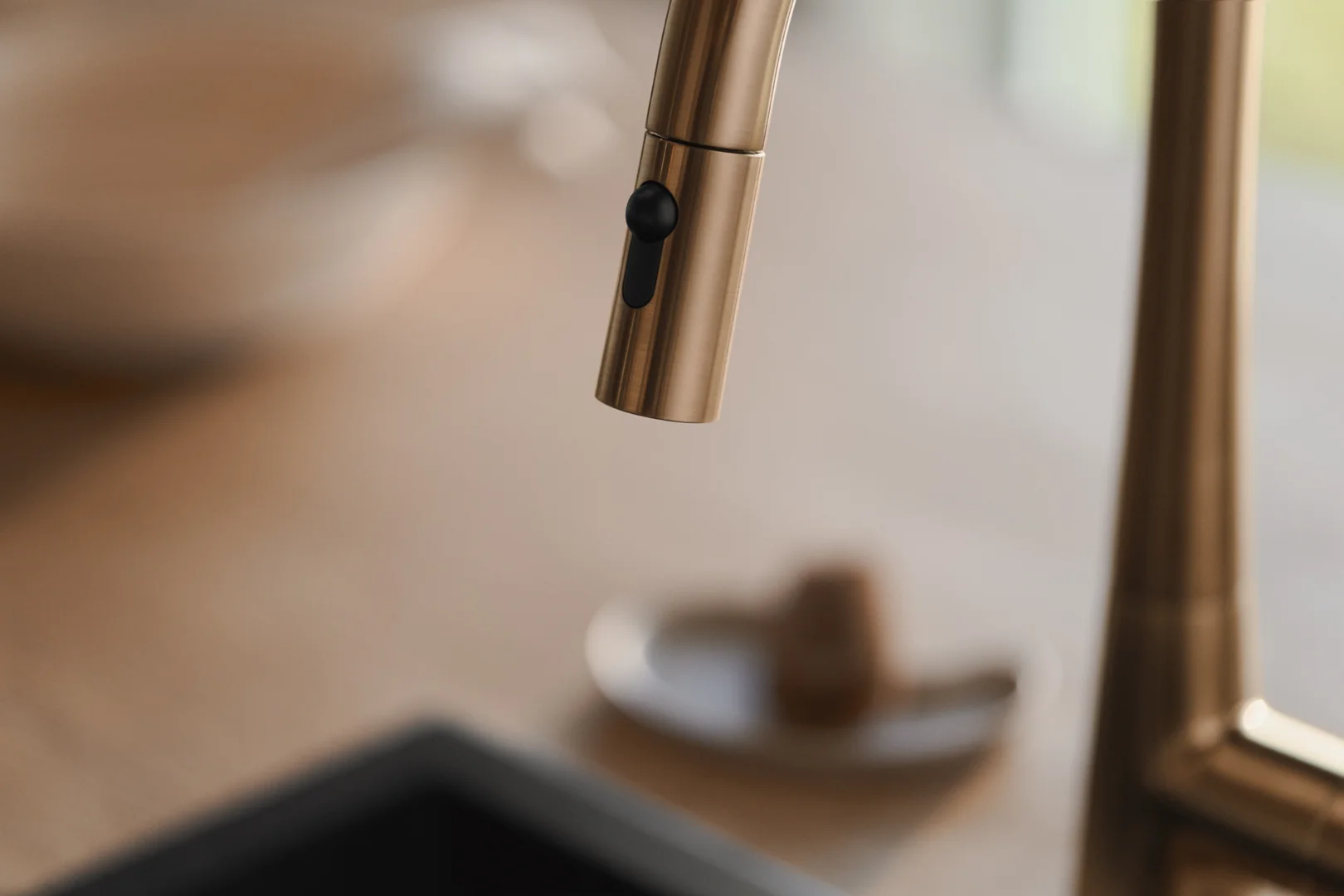

Soft- and Needle-Spray
Connection
Flexible inlet pipes

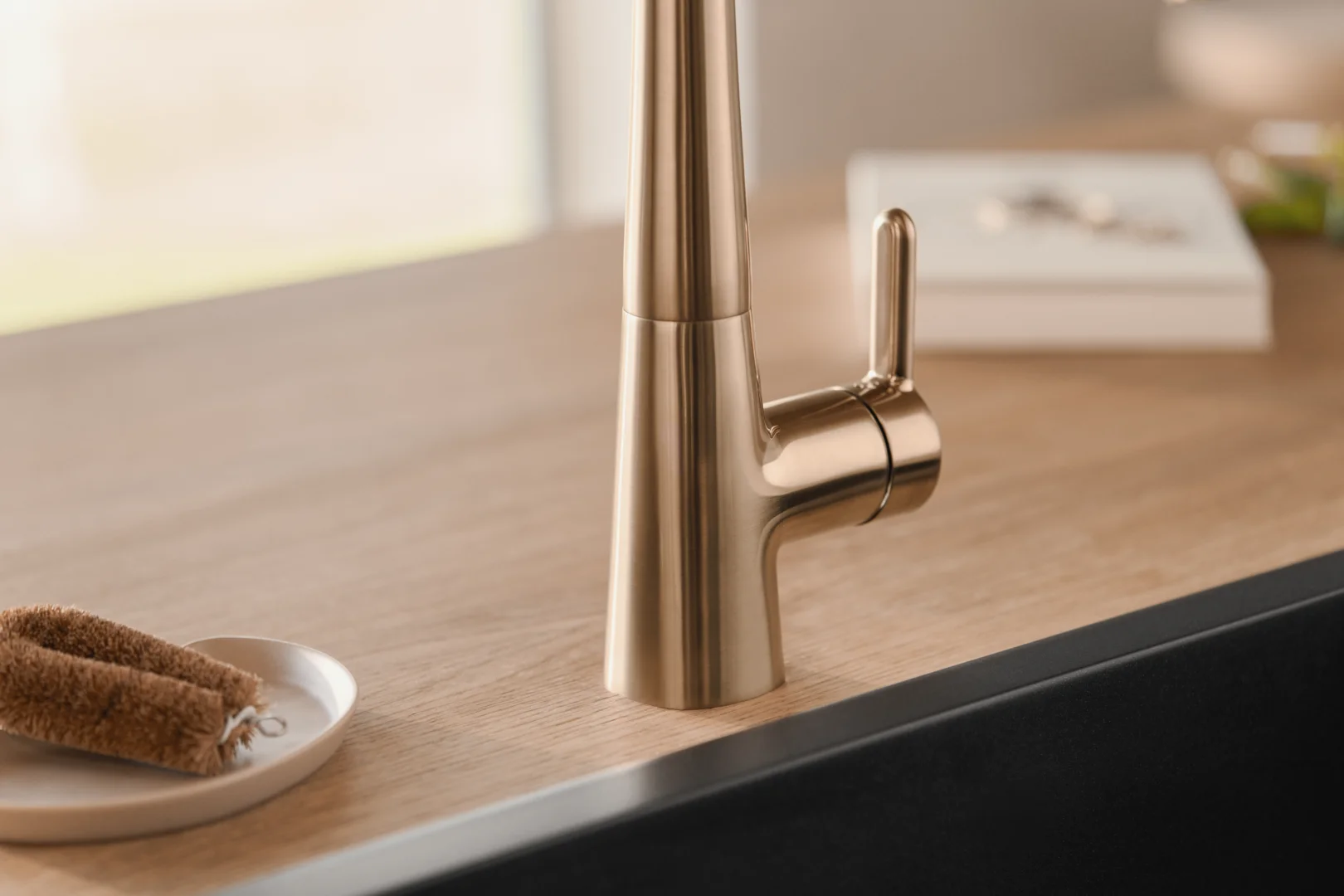

Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Number of spray functions

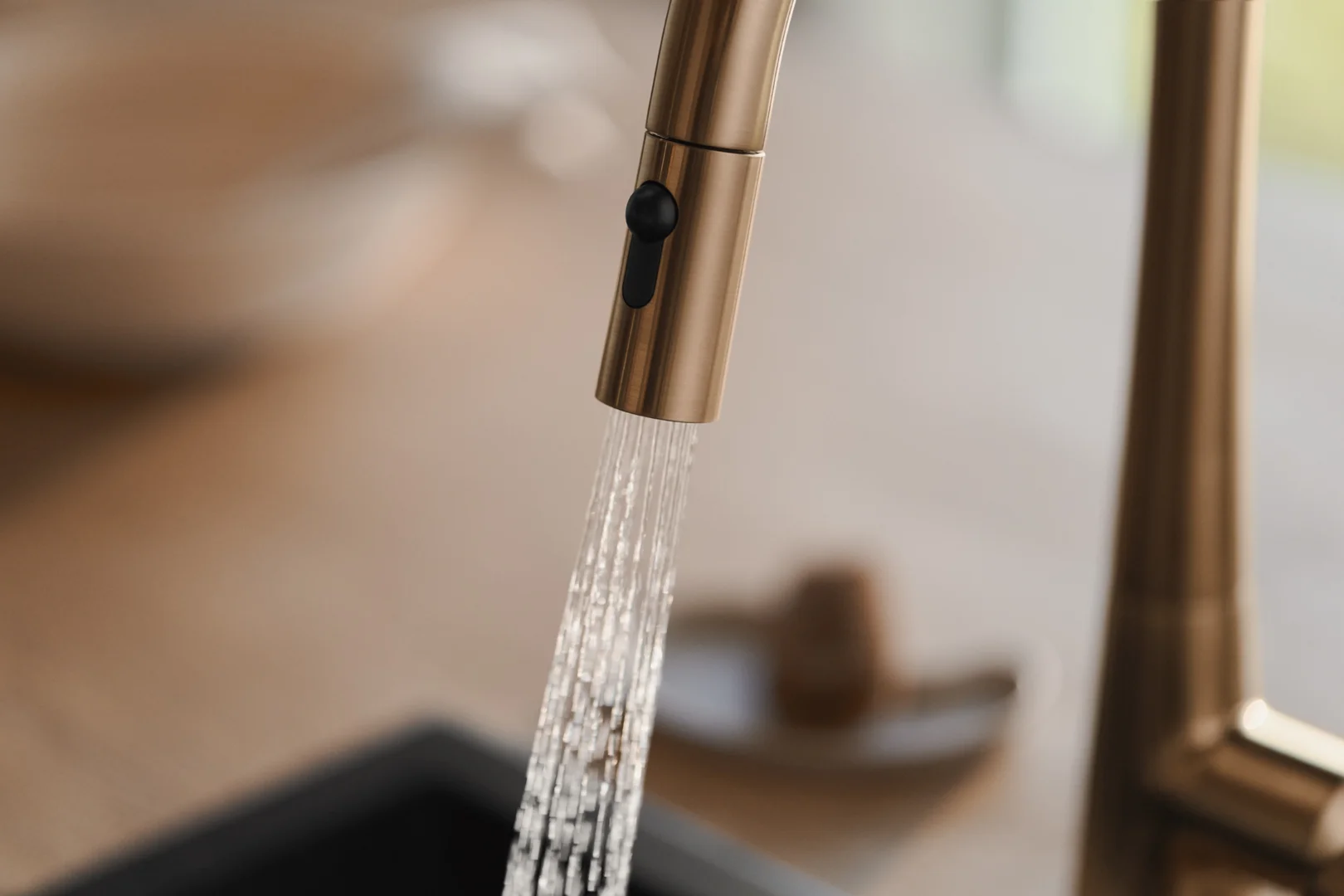

2 spray functions

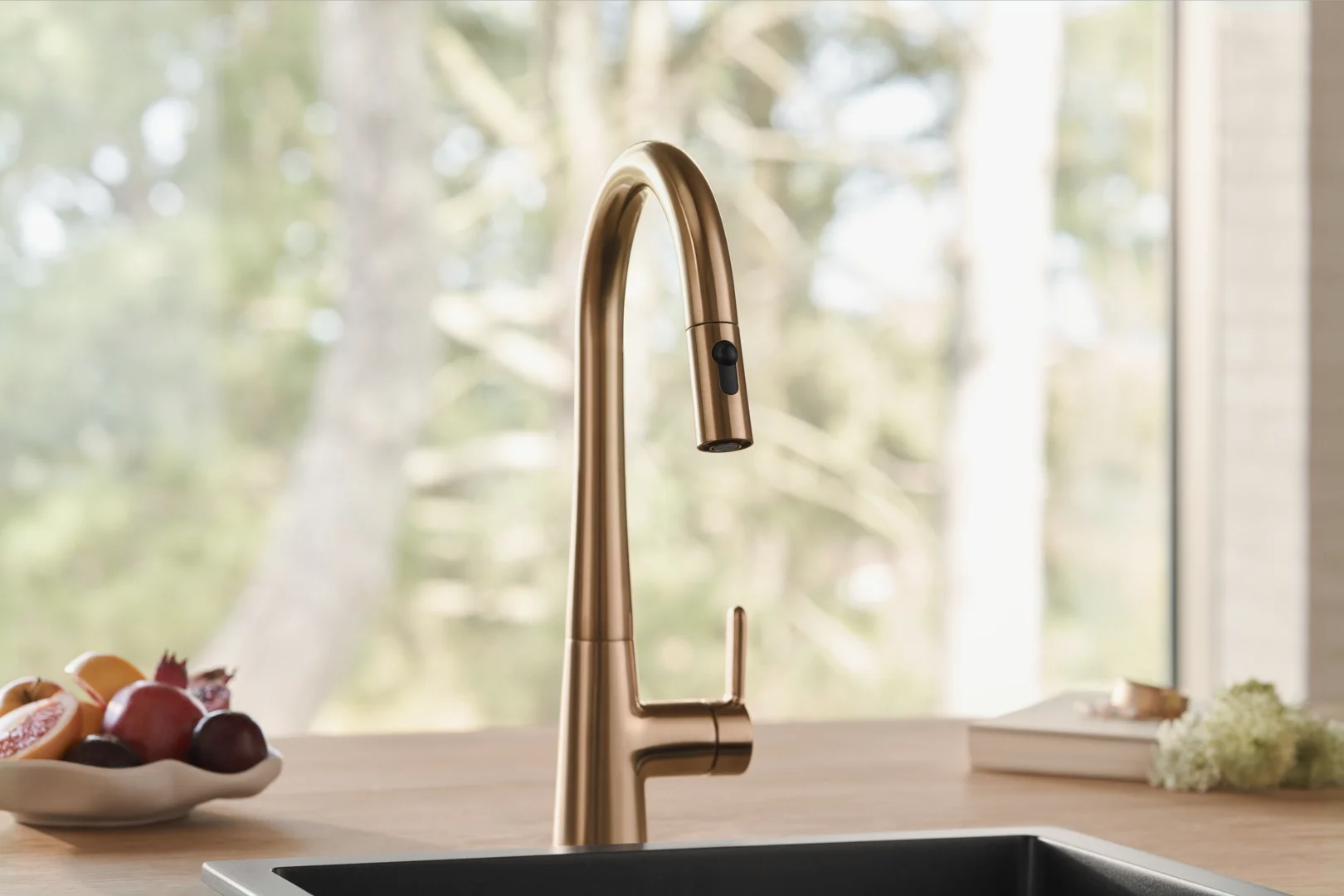

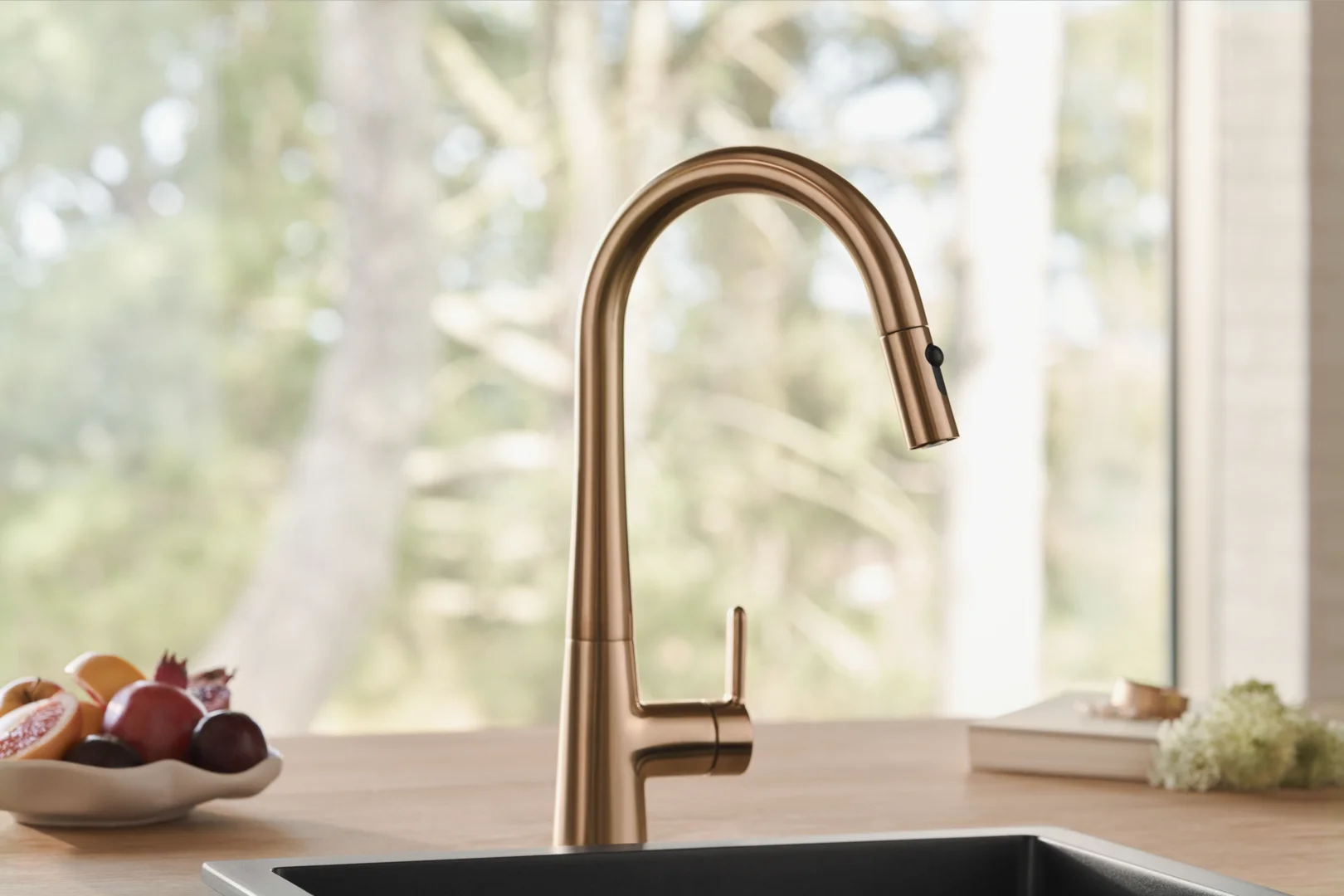

Spout

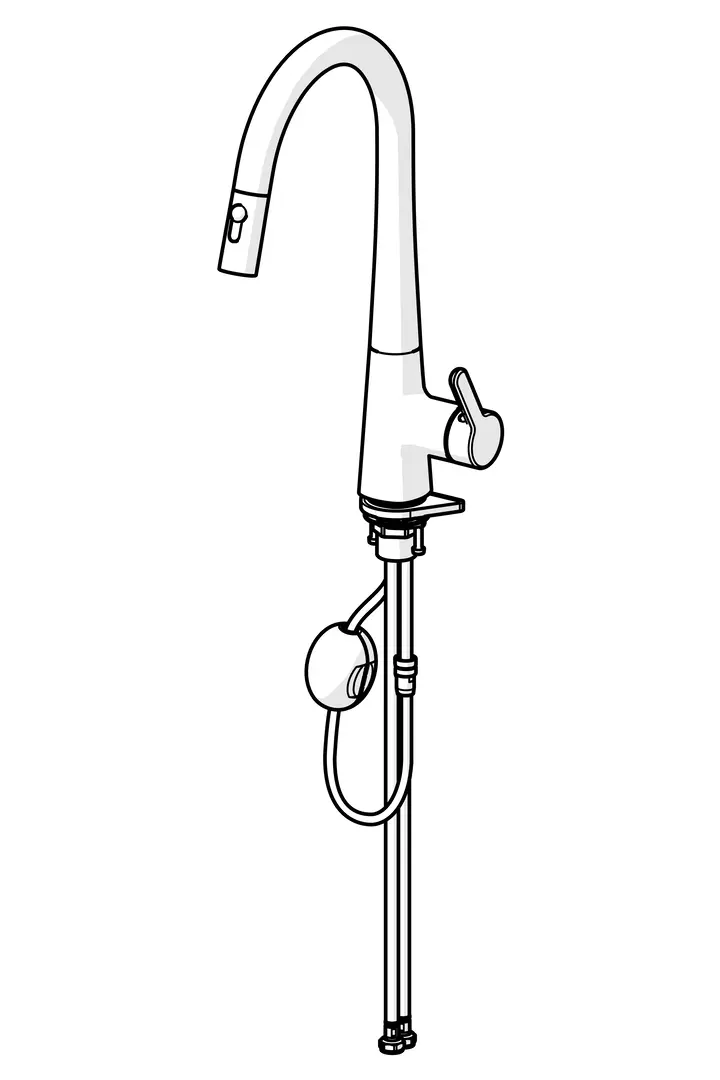

Swivel spout, Pull-out model, Swivel range limiting option
Color

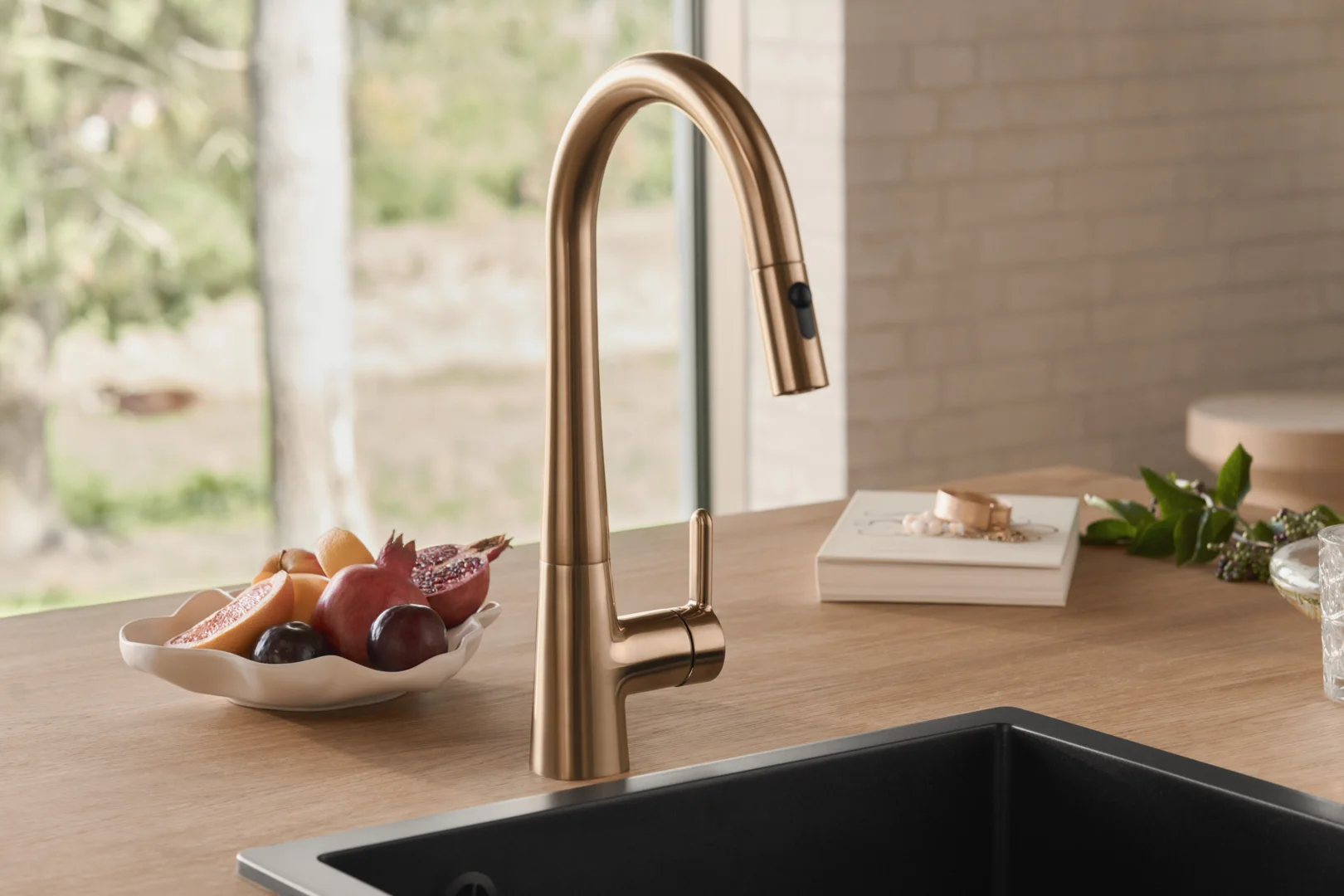

Brushed bronze
Temperature
Limitation option for maximum temperature and flow-rate
Flow attributes

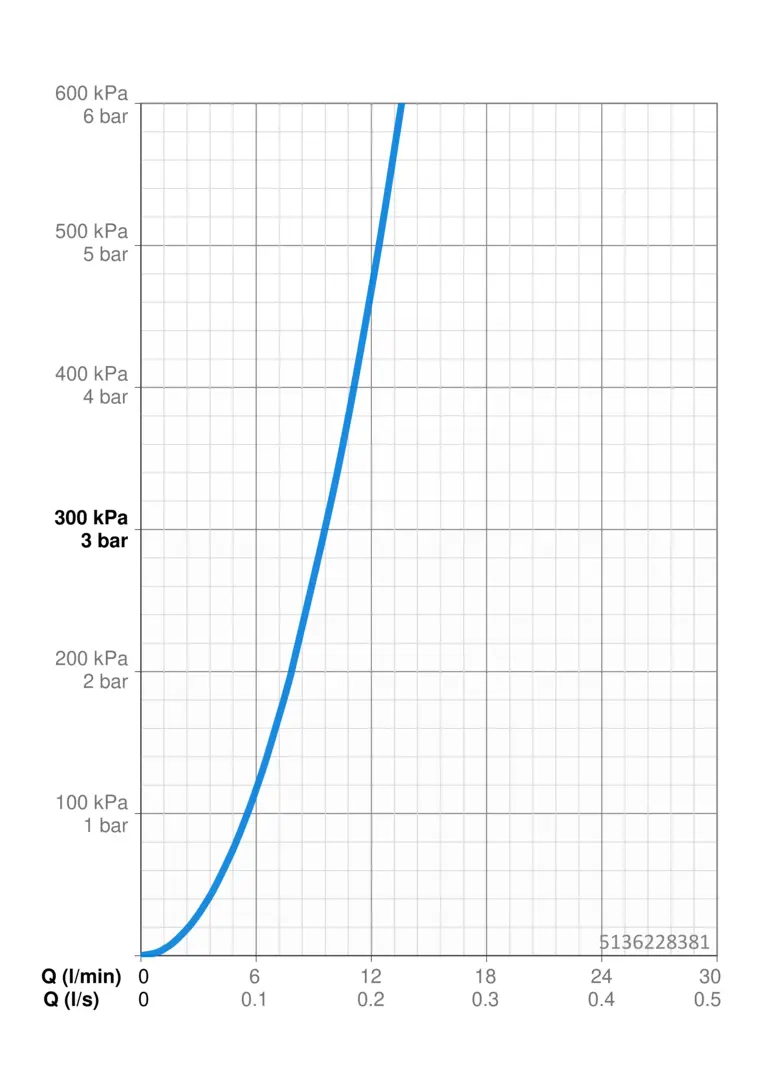

Flow-rate at 3 bar
9.6 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

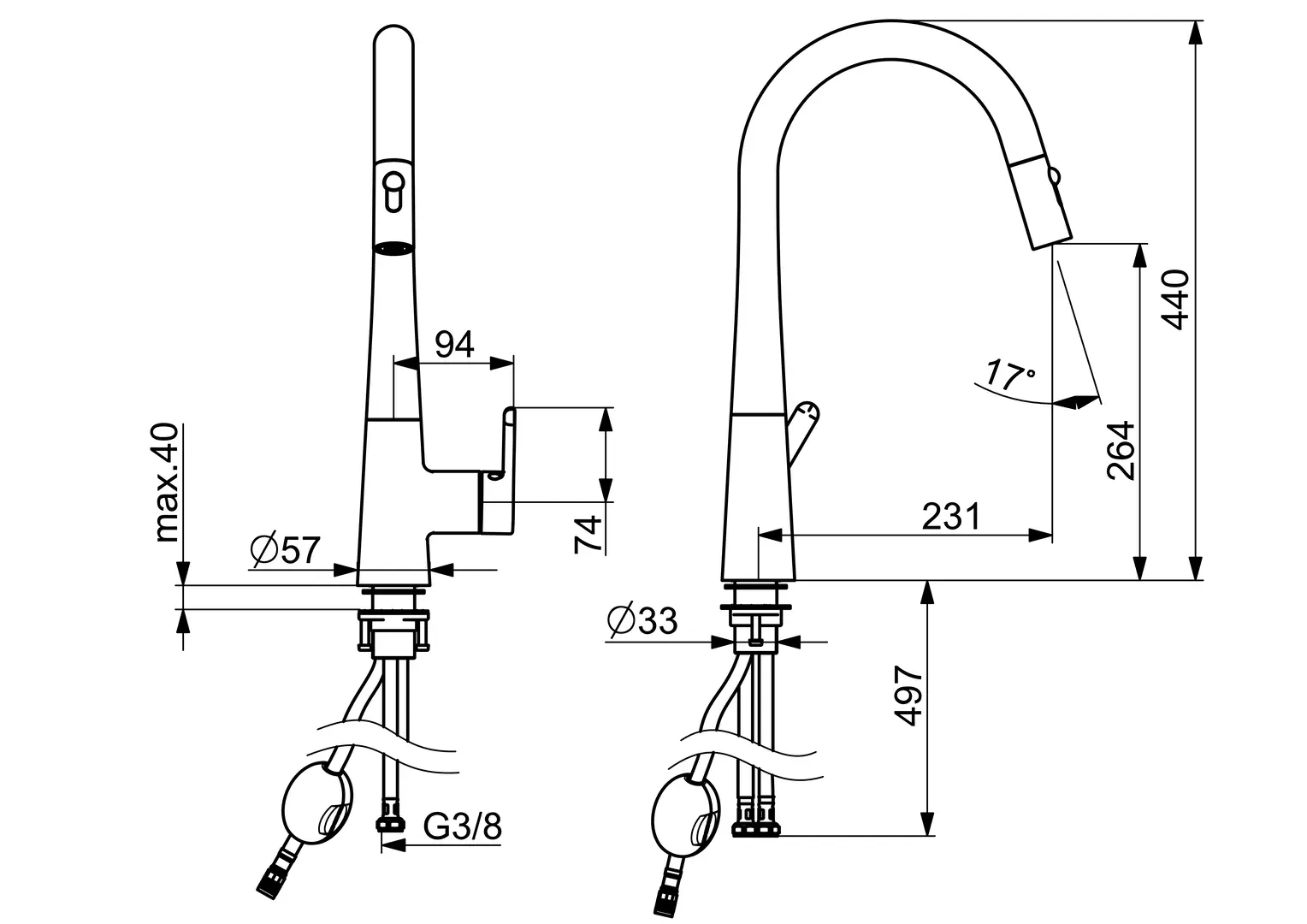

Projection
231 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
16,22
EPD module A1-A3 (kg CO2 eq.)
24,12
EPD module A2 (kg CO2 eq.)
0,77
EPD module A3 (kg CO2 eq.)
7,13
EPD module A4 (kg CO2 eq.)
0,48
EPD module B7 (kg CO2 eq.)
3782,40
EPD module C2 (kg CO2 eq.)
0,04
EPD module C3 (kg CO2 eq.)
0,04
EPD module C4 (kg CO2 eq.)
0,73
EPD module D (kg CO2 eq.)
-13,64
