Features
Aerator
Laminar stream
Connection
Copper inlet pipes
Lever/Handle
Loop shape, Hot/Cold symbols, Long shape, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic eco cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, Waterways without nickel coating
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

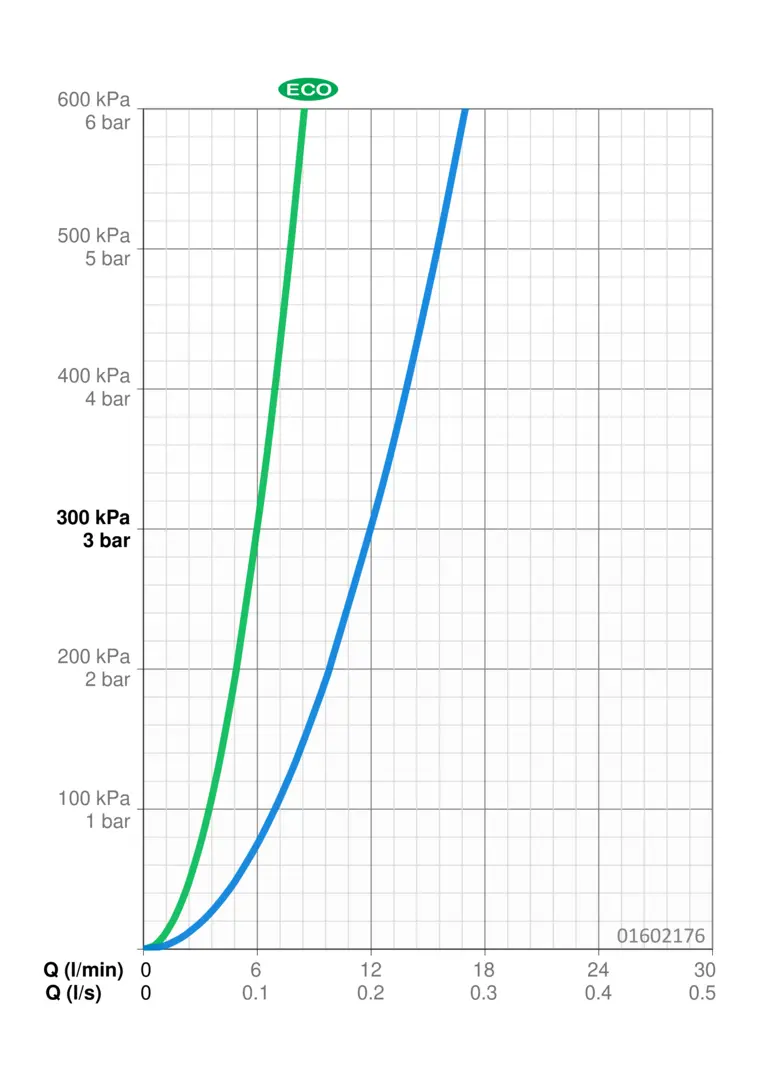

Flow attributes
Eco-flow at 3 bar
6 l/min
Flow-rate at 3 bar
12 l/min
Technical properties
Connection size
Ø 10 mm
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass
Projection
153 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
