Features
Additional features
Safety lock against scalding 38°C (36°-44°)
Aerator
Laminar stream
Connection
Eccentric coupling(s), Cover plate(s), with integrated shut-off valve(s), Silencer(s), Cover plate triple sealed
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow
Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
Advanced features
Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment
Spout
Swivel spout, Lockable in the middle position, Swivel range limiting option, Profile construction
Color
Chrome
Temperature
The housing of the fittings conducts minimal heat

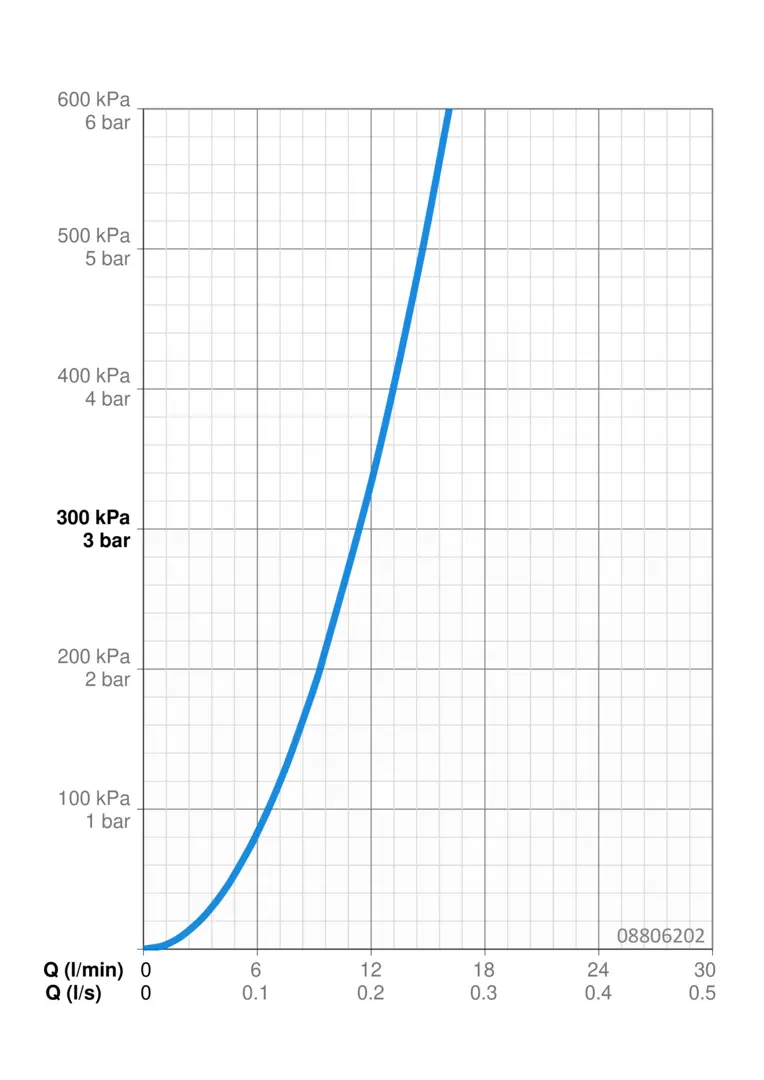

Flow attributes
Flow-rate at 3 bar
11.4 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G1/2
Hot water supply
max. +80°C

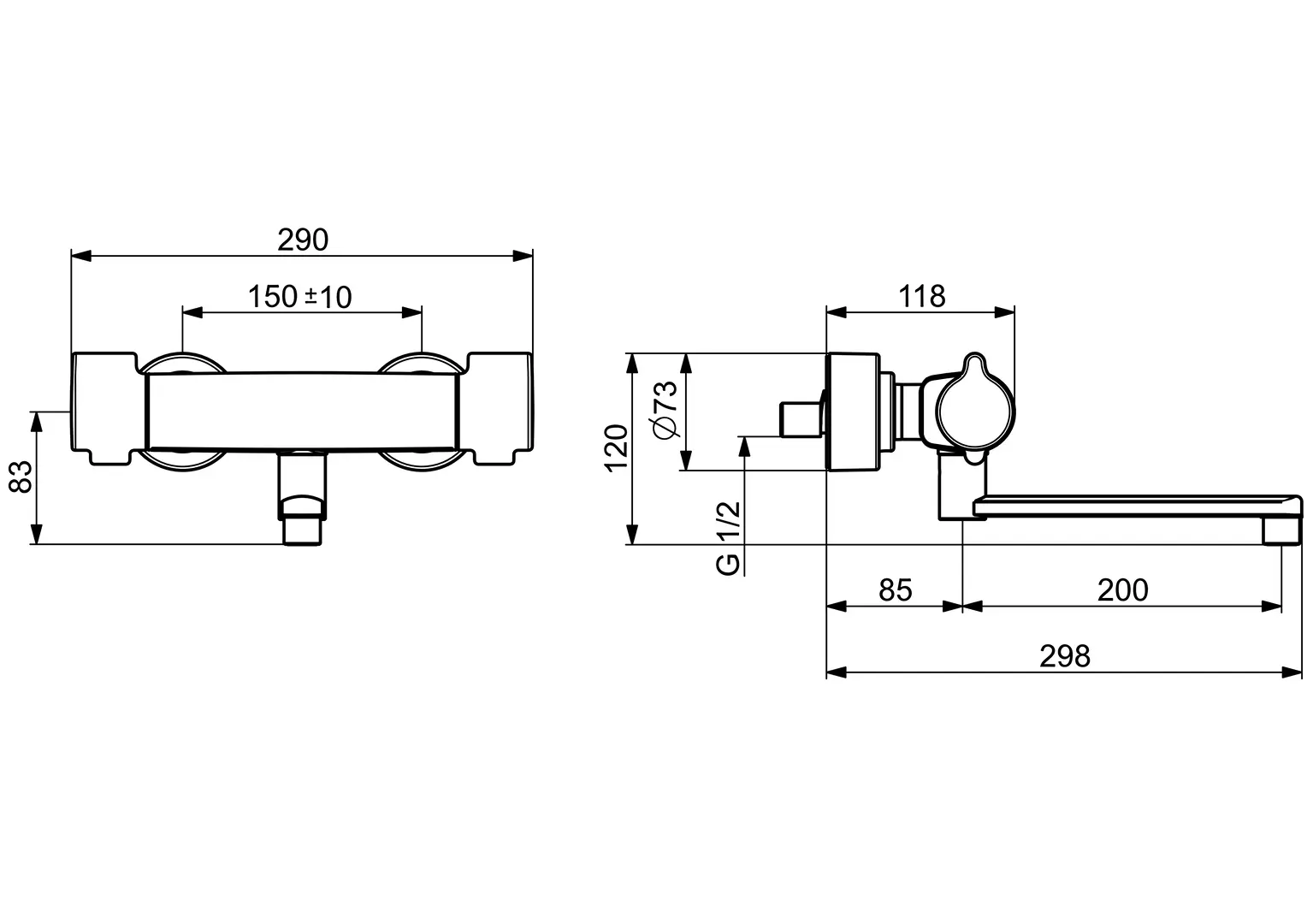

Installation width
150 ± 10 mm
Material
Brass
Projection
285 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
