Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Safety lock against scalding 38°C (36°-44°)
Concealed parts
Round rosette, Function unit, BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º
Lever/Handle
Temperature control handle, Flow control handle
Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s)
Advanced features
Thermal disinfection without cartridge readjustment
Color
Chrome

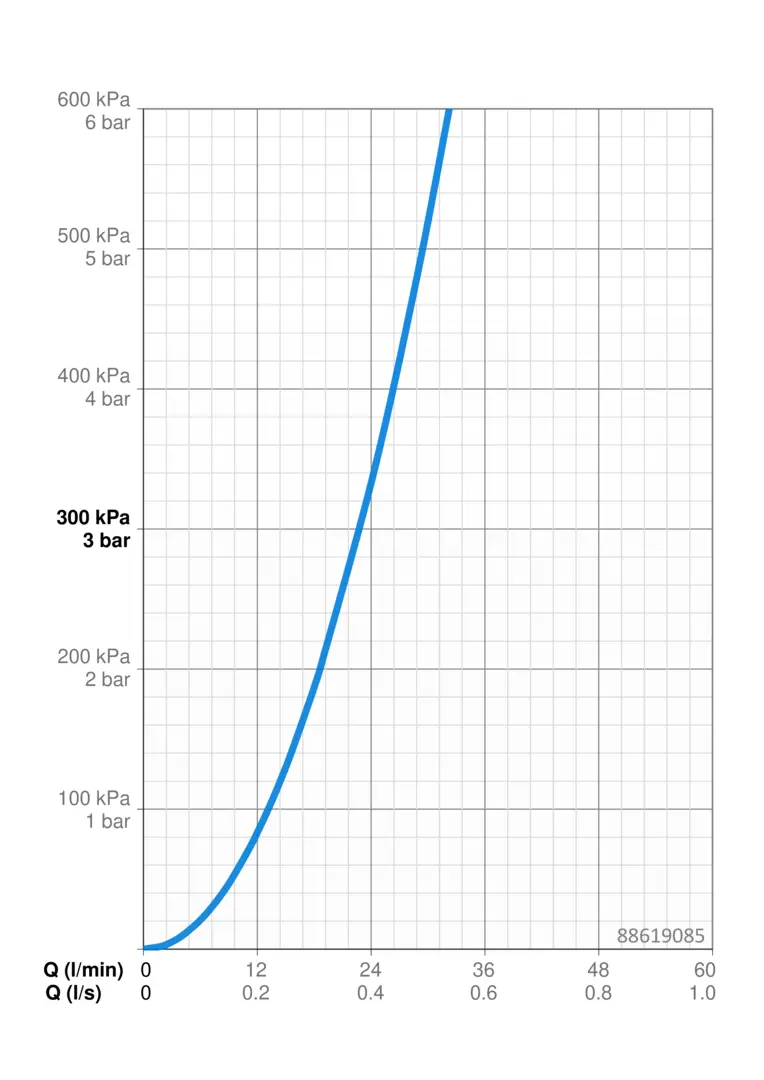

Flow attributes
Flow-rate at 3 bar
22.8 l/min
Technical properties
Backflow prevention (EN1717)
EB
Diameter
170 mm
Hot water supply
max. +80°C
Material
Brass
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
16,11
EPD module A1-A3 (kg CO2 eq.)
26,58
EPD module A2 (kg CO2 eq.)
0,51
EPD module A3 (kg CO2 eq.)
10,06
EPD module A4 (kg CO2 eq.)
0,44
EPD module B7 (kg CO2 eq.)
4400,40
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,03
EPD module C4 (kg CO2 eq.)
0,35
EPD module D (kg CO2 eq.)
-8,22
