Features
Aerator
Hidden aerator, Standard aerator
Connection
Flexible inlet pipes
Lever/Handle
Two operating levers/handles, Temperature control handle, Flow control handle
Mechanical parts
Litter filter(s)
Spout
Swivel spout
Color
Chrome
Flow attributes

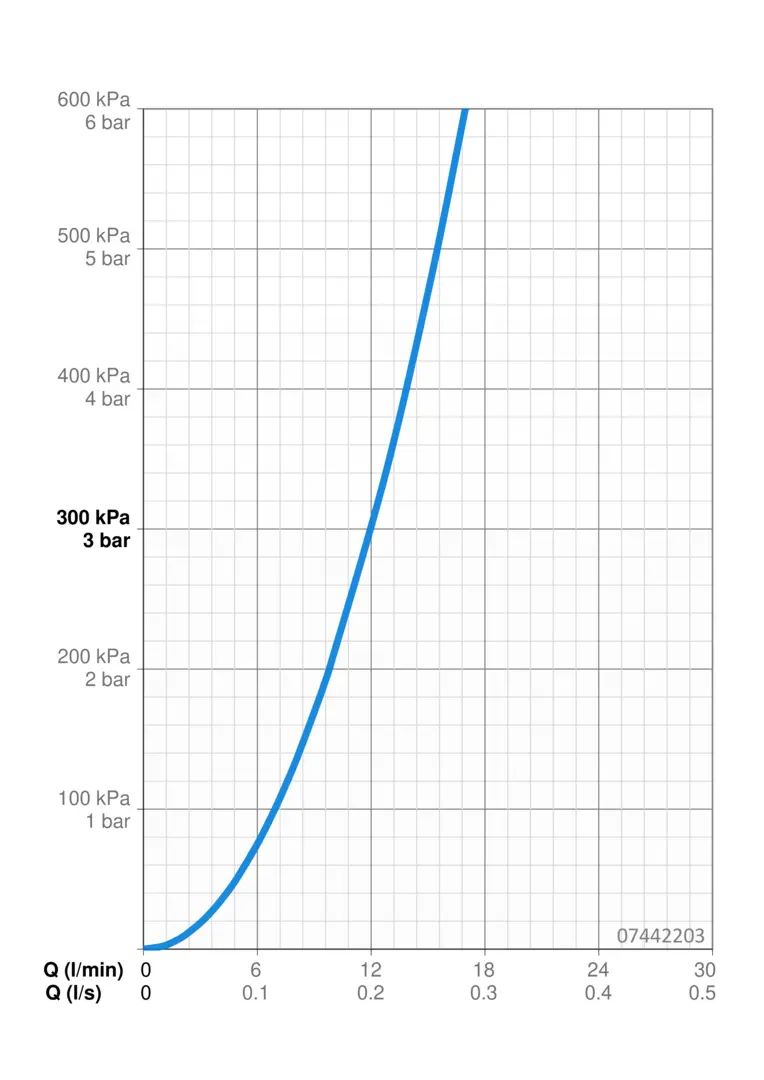

Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

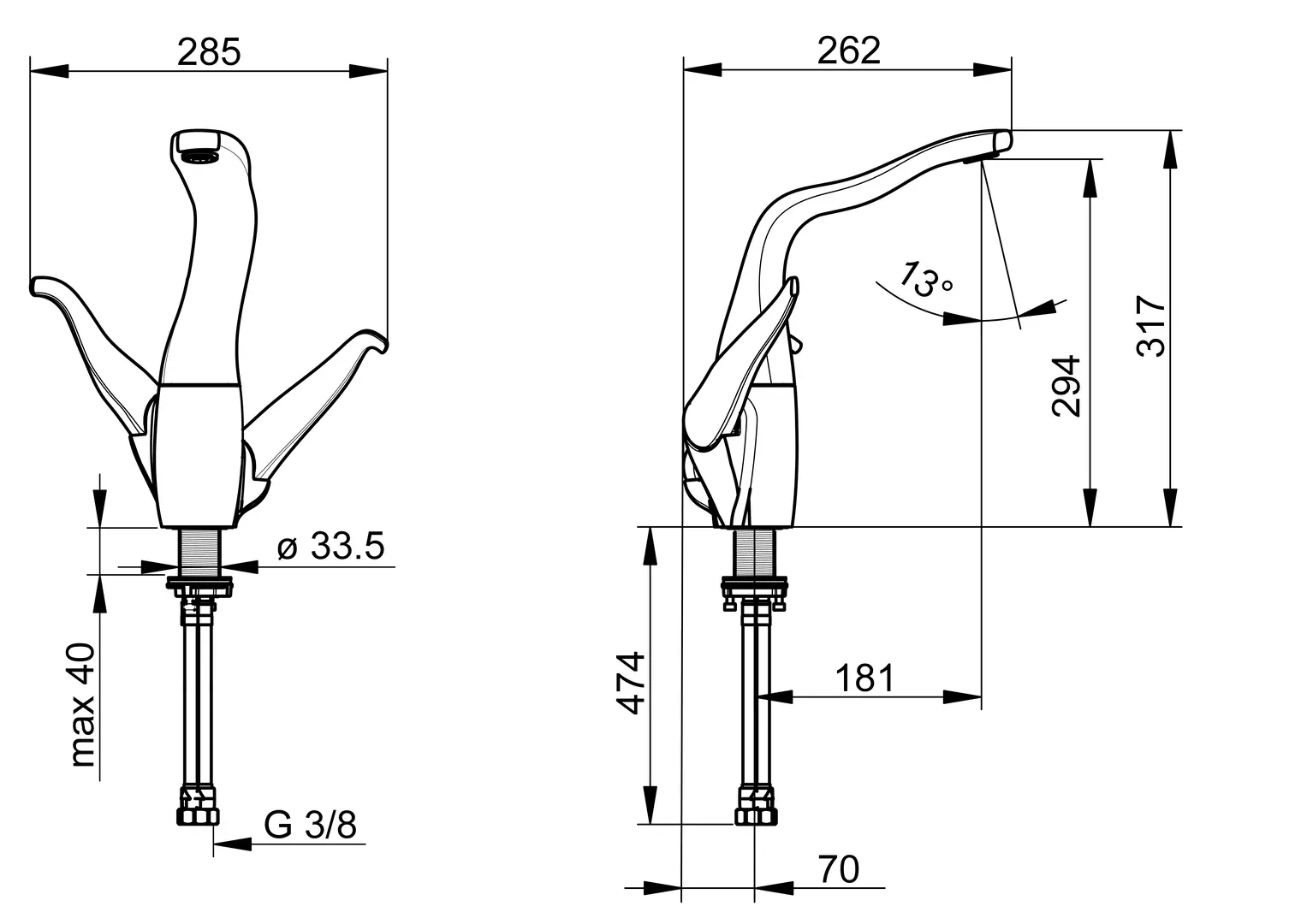

Projection
181 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
