Features
Aerator
Adjustable flow angle, Hidden aerator
Connection
Flexible inlet pipes
Electronic parts
Low battery indicator, Light indicated function(s), External control unit
Extensions
Push pop-up waste without draw-rod
Lever/Handle
Temperature control handle
Mechanical parts
Mixing valve for manual temperature control
Advanced features
Software settings adjustable via magnetic key, Waterways without nickel coating
Spout
Fixed spout
Color
Chrome/White
Software settings
Automatic flush
off (off/12/24/48/72 h)
Automatic flush period
30 s (10-600 s)
Max. flow period
6 s (4 s-60 s) / 60 s (30 s- 600 s)

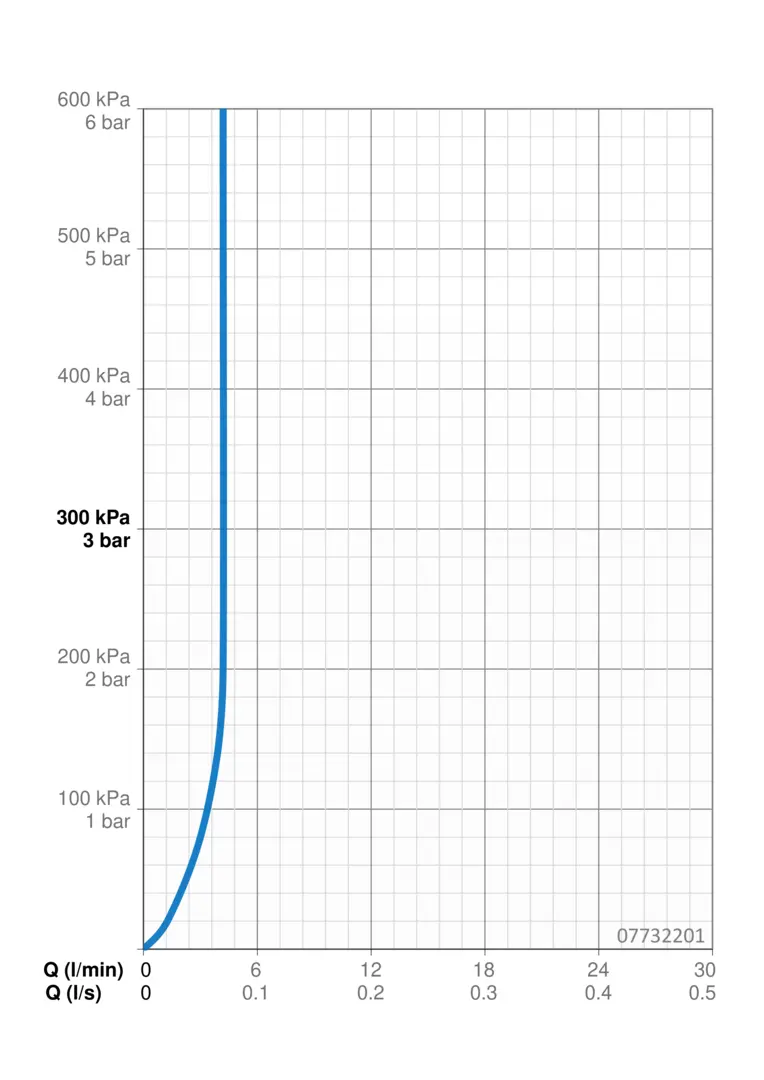

Flow attributes
Flow-rate at 3 bar (with flow controller)
4.2 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

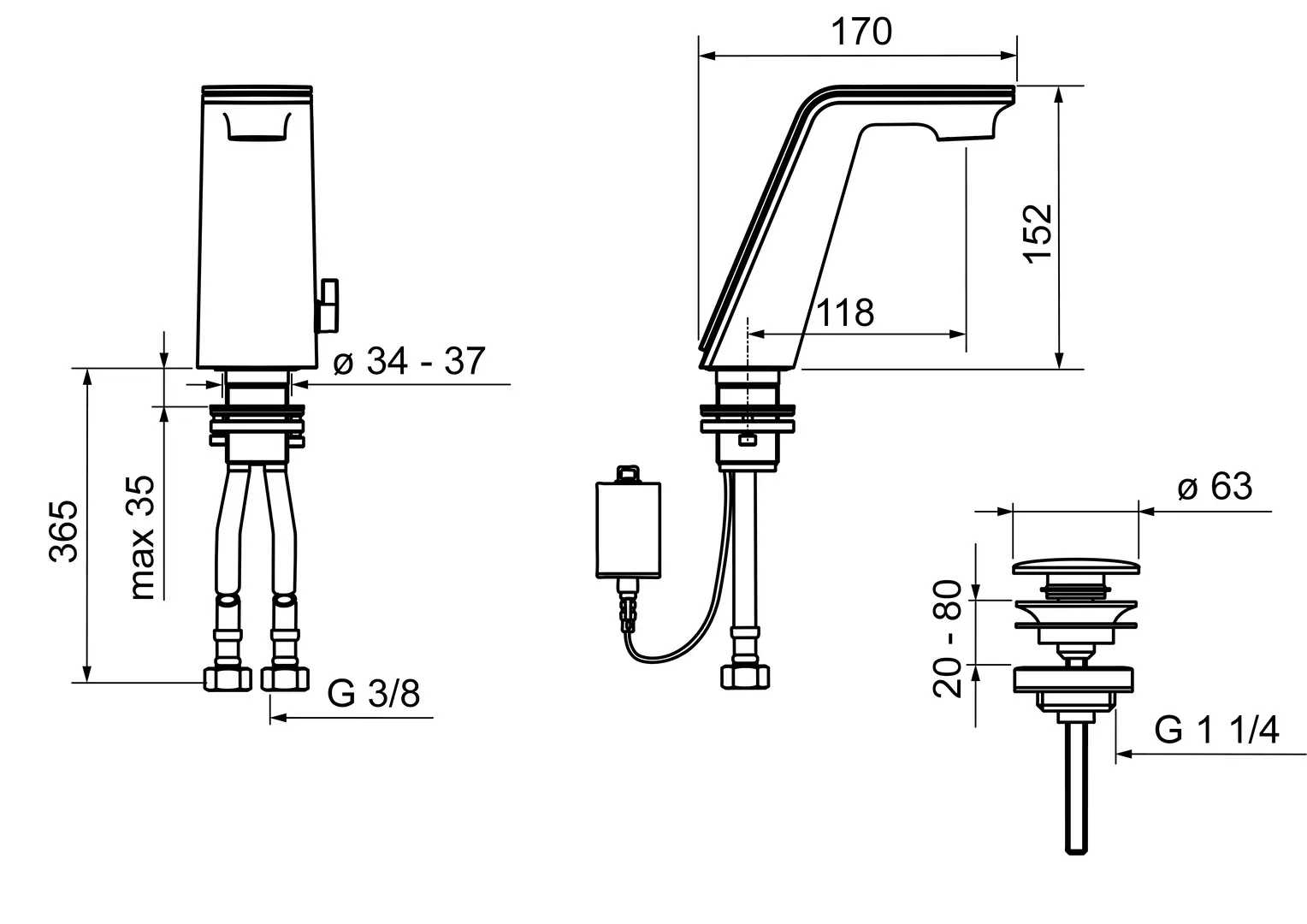

Projection
118 mm
Working pressure
1 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 44
Approvals and Declarations
UN38.3
UN38-3 Energizer L91
