Protection degree
IP45
Nominal voltage
85–240 V AC
Operating voltage
12 V DC
Mains frequency
50–60 Hz
Power consumption standby
0.15 W
Interval flush, adjustment range min.
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
1–200 s
Interval flush time, factory setting
5 s
For manual remote flush actuation of Sigma concealed cisterns 12 cm using a touchless IR button
For releasing a dual flush
For installation in solid and drywall constructions with flush-mounting box
For installation in bathroom furniture with counternut
Suitable for less-abled installation
For Sigma concealed cisterns 12 cm
Touchless manual flush actuation
Touchless flush actuation for single or dual flush by moving hand toward sensor
Single or dual flush can be triggered via flush plate
Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates
Power supply via external power supply unit
Transformation of mains voltage to extra-low voltage, 12 V DC
Operation with extra-low voltage, no mains voltage in cistern
With push-fit connection with cross-polarity protection
Interval flush preset
Adjustable interval flush
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Low-noise lifting mechanism
Electrical lifting device, self-calibrating

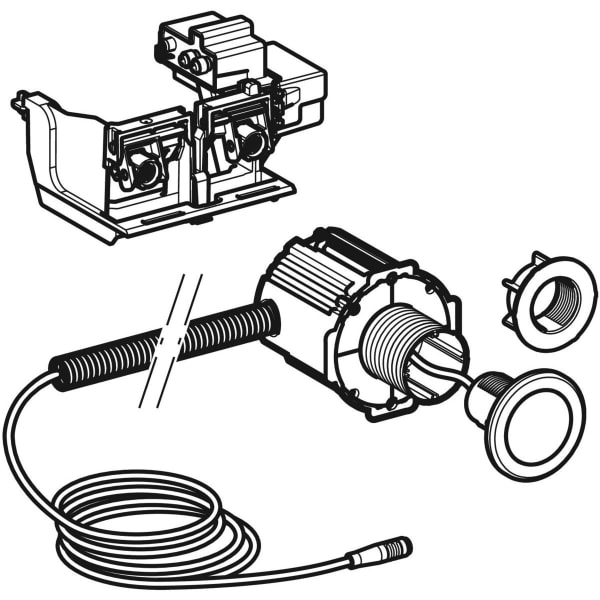

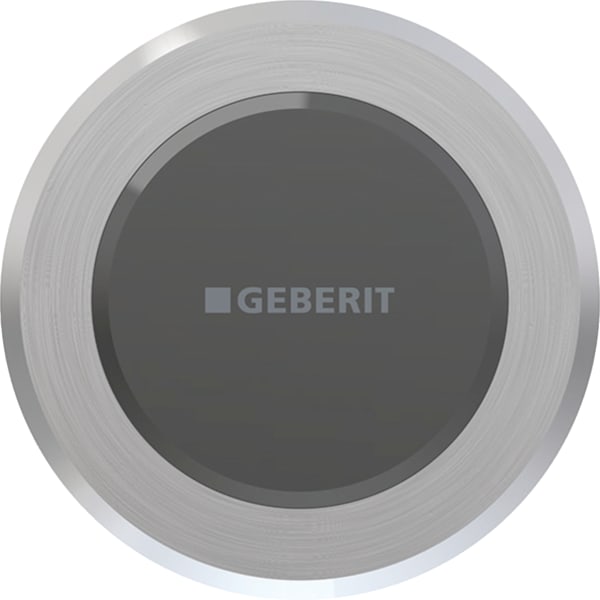

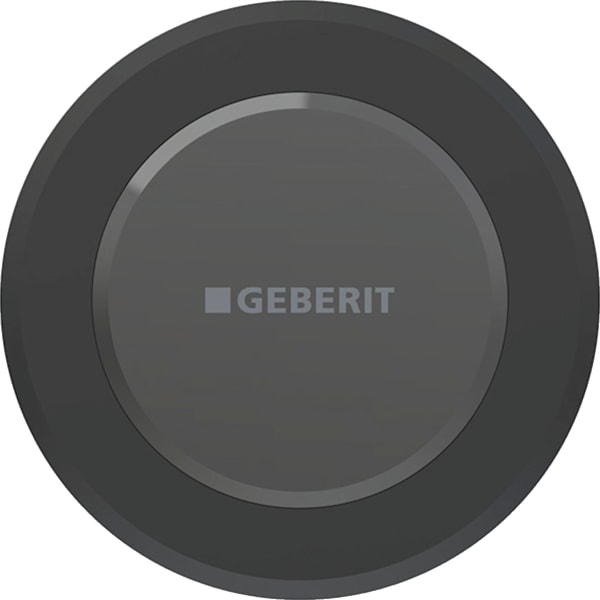

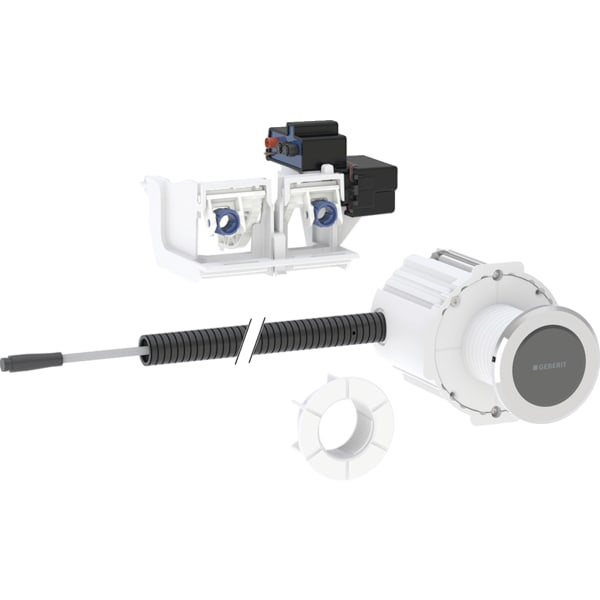

Infrared button with 2 m connection cable
Concealed outlet
Counternut
Conduit pipe, length 1.7 m
Support block with servomotor and lifting device, premounted
Electrical control
Actuator plate or cover plate
Geberit Power & Connect box
Geberit power supply unit for Power & Connect box
Colour / surface: Collar: brushed
Material designation: Stainless steel
B: 6 cm
H: 6 cm
T: 0.5 cm
Power consumption: ≤ 4 W
