Flow pressure
1–8 bar
Test pressure, water max.
16 bar
Test pressure, air / inert gas max.
3 bar
Operating temperature, water max.
30 °C
Actuation force max.
12 N
Flow rate at 1 bar without flow limiter
0.3 l/s
Flow rate at 1 bar with flow limiter
0.18 l/s
Minimum flow pressure
1 bar
Relative humidity
≤ 100 %
Calculated flow rate
0.22 l/s
Flush time, adjustment range
4 / 8 / 12 s
Button shape
round
Click on an application purpose to search more products
For manual flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Click on a characteristic to search more products
Flush plate with securing bar
Flush time setting with air nozzles (pneumatic)
Low flush actuation force
Short stroke movement
Flush actuation when the actuator button is released
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
Type 01 flush plate, round
Pneumatic flush actuation, premounted on mounting frame
Pneumatic valve
Fastening material

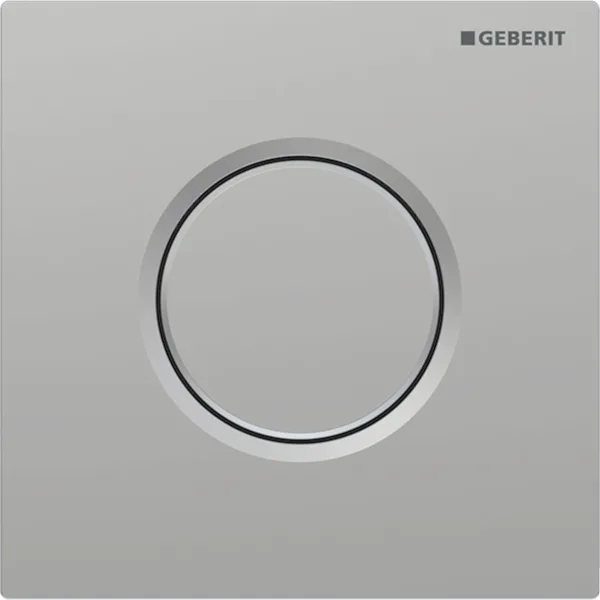

Colour / surface: matt chrome / easy-to-clean coated
Product material: Plastic
